G50650.0

G50650.0

SKU DOR7147804
by Dormer Pramet
Primary Use: Possible Use:

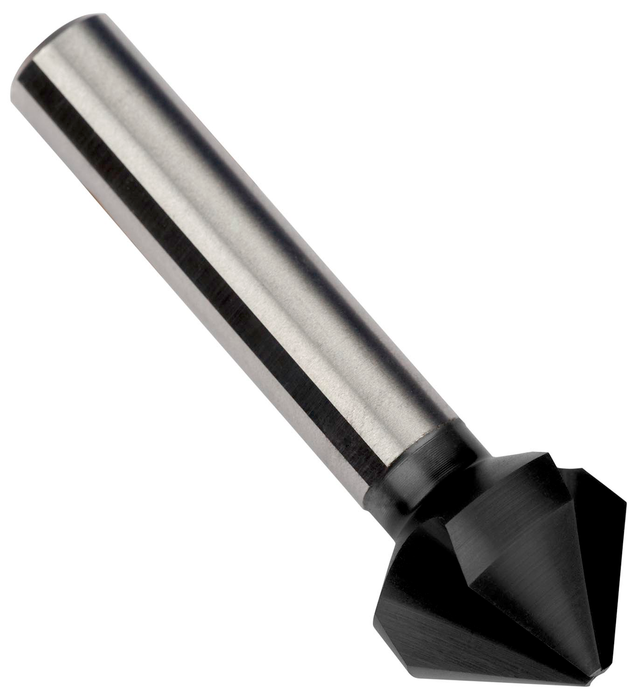

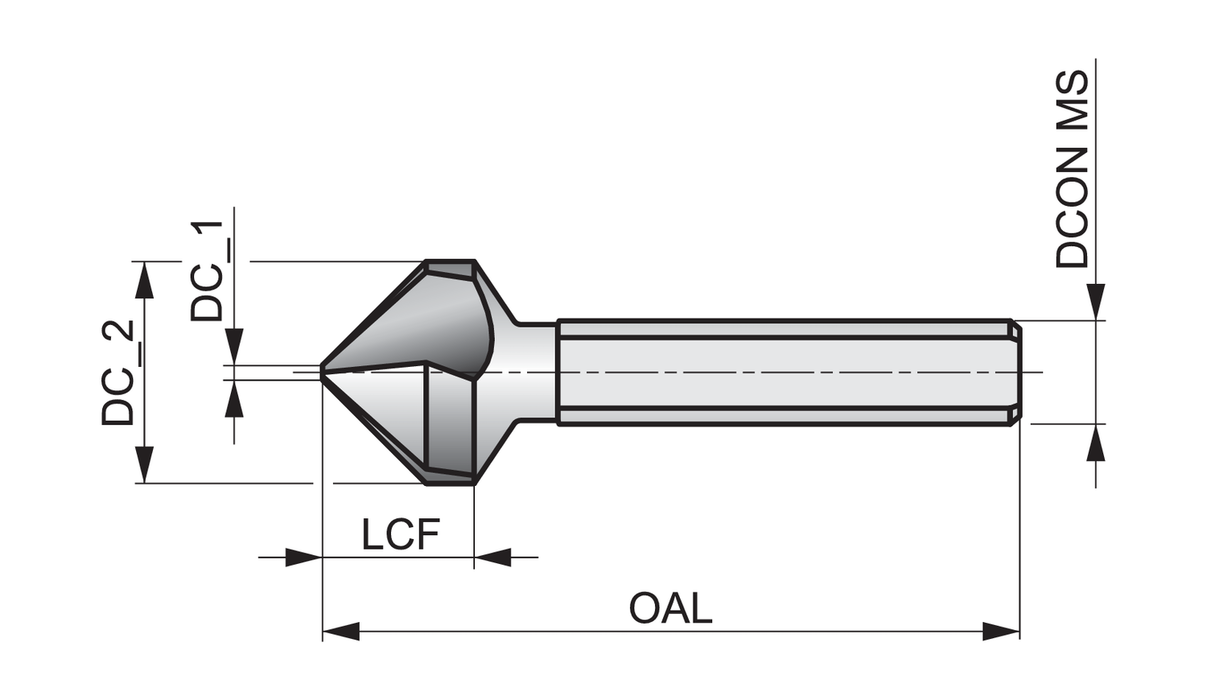

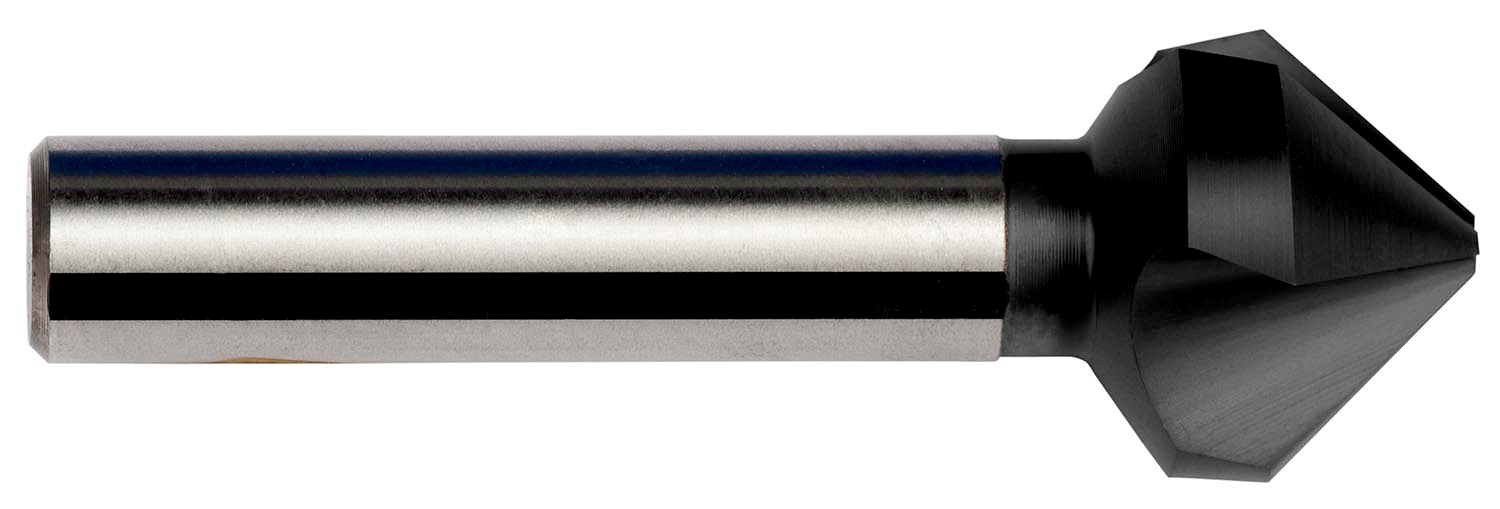

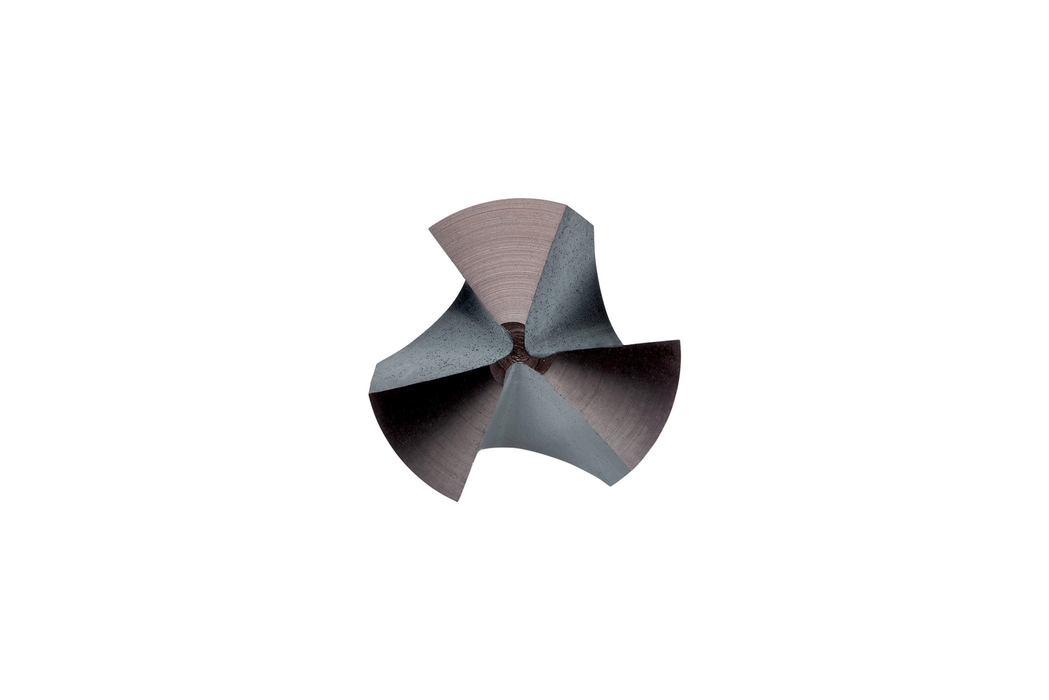

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 50.00mm with an overall length of 126mm and a head length of 23.6mm and 16mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 5.00mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$864.21 - $864.21
$864.21
$864.21 - $864.21
$864.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 4.9606

Connetion Diameter: 0.6299

Tool Direction: Right

Shank: Cylindrical shank with 3-Flats

Grade: TiAlN

EDP: 47147804

EAN: 7320760702819

MFG Part Number: 7147804
