G10712.4

G10712.4

SKU DOR7147809
by Dormer Pramet
Primary Use: Possible Use:

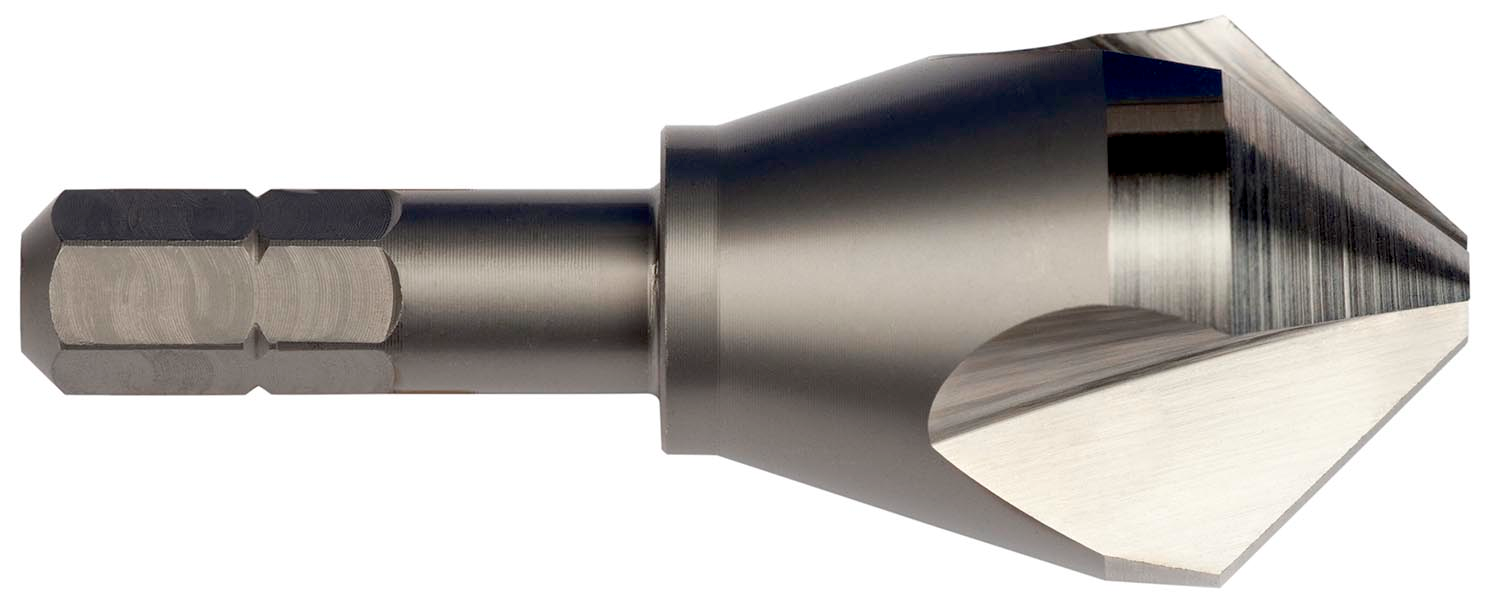

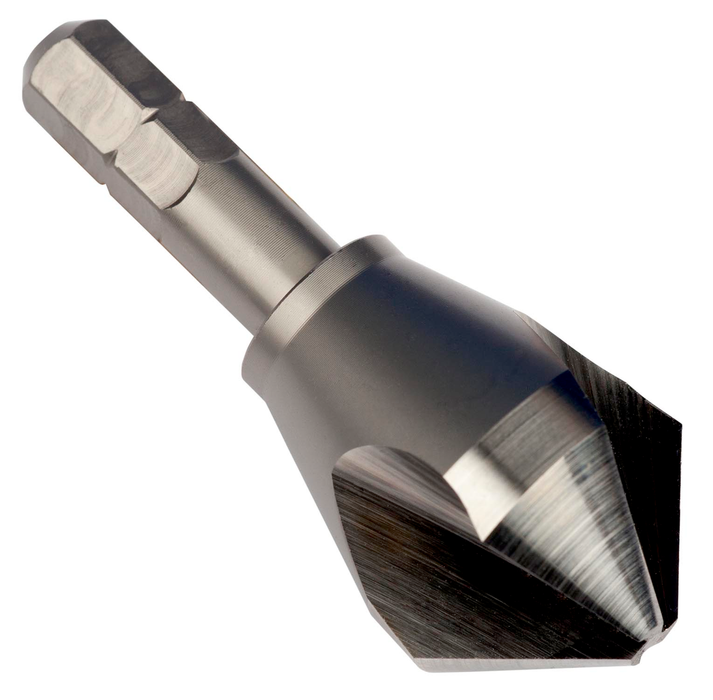

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 50mm and 1/4" hexagon drive, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, cobalt based HSS-E with standard bright finish for machining steel and cast steel, copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$57.09 - $57.09
$57.09
$57.09 - $57.09
$57.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

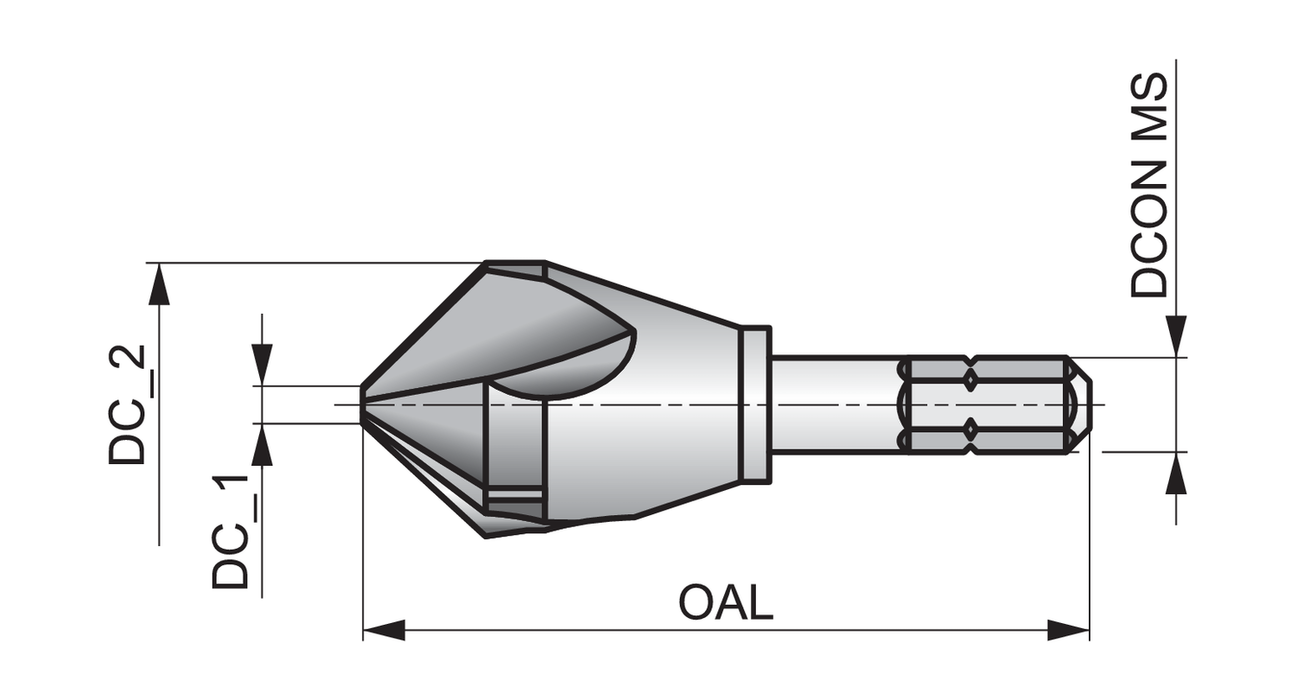

Material: HSS-E

Drill Point Angle - deg: 90

Overall Length (OAL): 1.9685

Connetion Diameter: 0.25

Tool Direction: Right

Shank: Cylindrical shank with Hex

Grade: Bright

EDP: 47147809

EAN: 7320760702864

MFG Part Number: 7147809
