PPHT 080010-A2:2003

PPHT 080010-A2:2003

SKU DOR7156109
by Dormer Pramet
Primary Use: Possible Use:

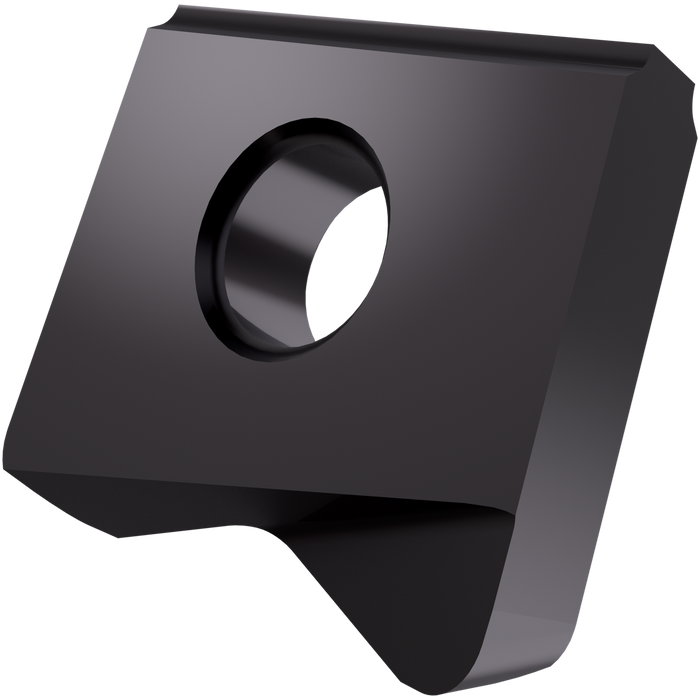

Toroidal copy milling insert with a diameter of .315" and .0394" corner radii for a maximum depth of cut of .0394", A2 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$57.51 - $57.51
$57.51
$57.51 - $57.51
$57.51
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

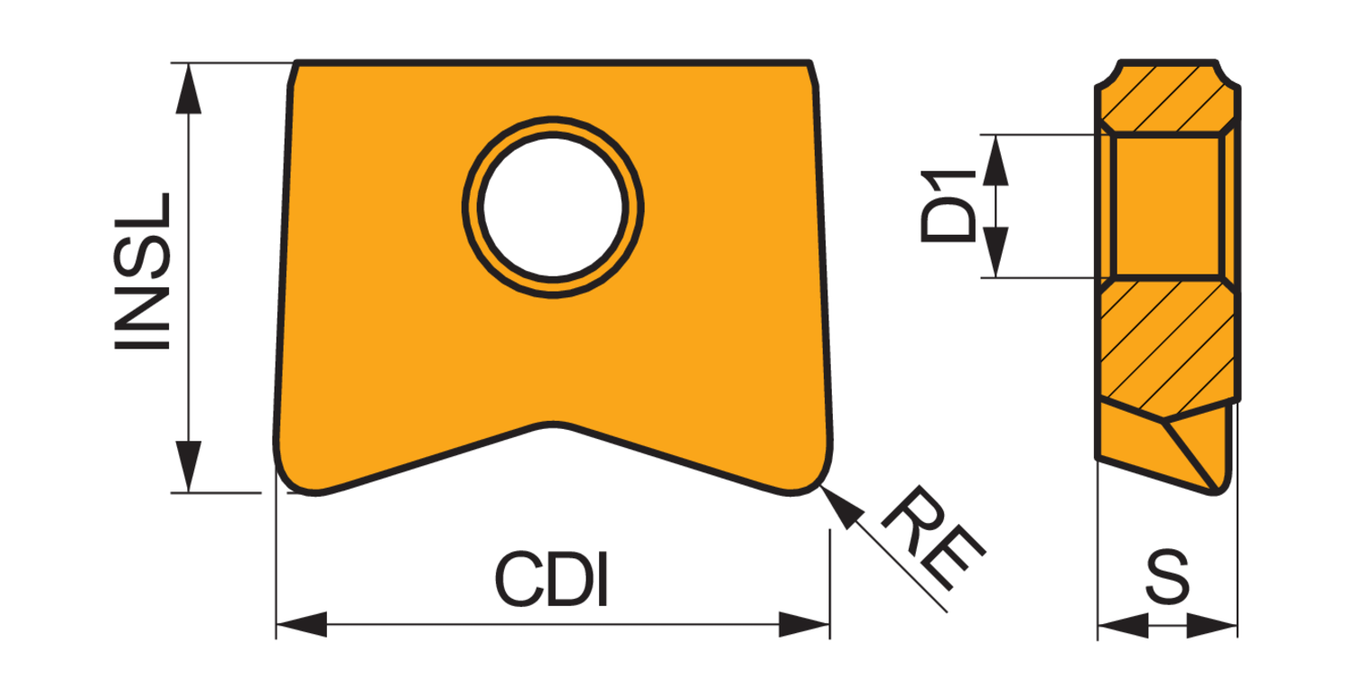

Max. Depth of Cut: 0.039

Insert Design: PPHT

Insert Shape Code: P - pentagonal

Insert Thickness: 0.094

Chip Breaker: A2

Grade: 2003

Corner Radius - in: 0.039

Corner Radius - mm: 1

EDP: 7156109

EAN: 3603603162655

MFG Part Number: 7156109
