PPHT 100005-A2:2003

PPHT 100005-A2:2003

SKU DOR7156110
by Dormer Pramet
Primary Use: Possible Use:

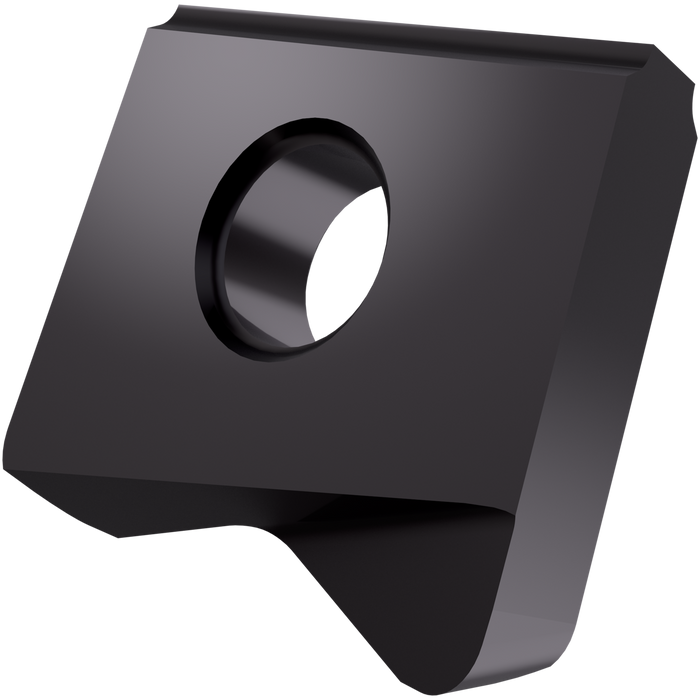

Toroidal copy milling insert with a diameter of .3937" and .0197" corner radii for a maximum depth of cut of .0197", A2 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$59.14 - $59.14
$59.14
$59.14 - $59.14
$59.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

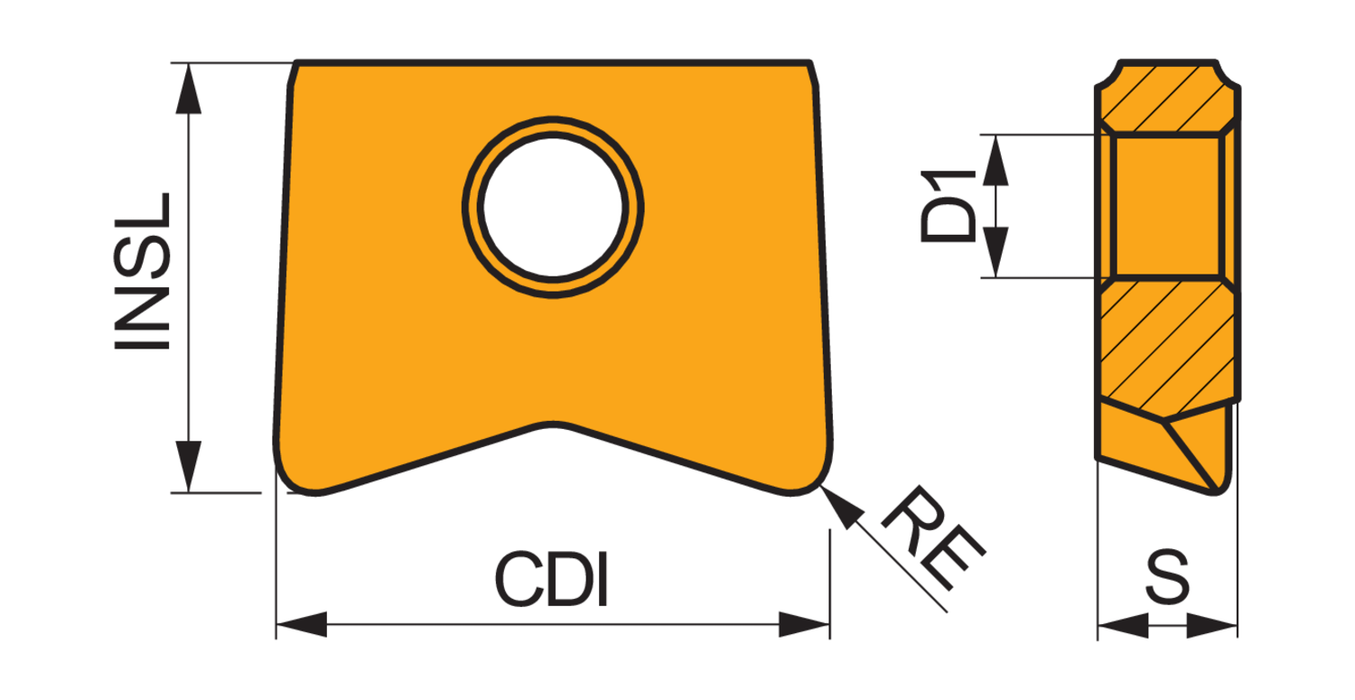

Max. Depth of Cut: 0.02

Insert Design: PPHT

Insert Shape Code: P - pentagonal

Insert Thickness: 0.102

Chip Breaker: A2

Grade: 2003

Corner Radius - in: 0.02

Corner Radius - mm: 0.5

EDP: 7156110

EAN: 3603603162662

MFG Part Number: 7156110
