PPHT 160013-A2:2003

PPHT 160013-A2:2003

SKU DOR7156117
by Dormer Pramet
Primary Use: Possible Use:

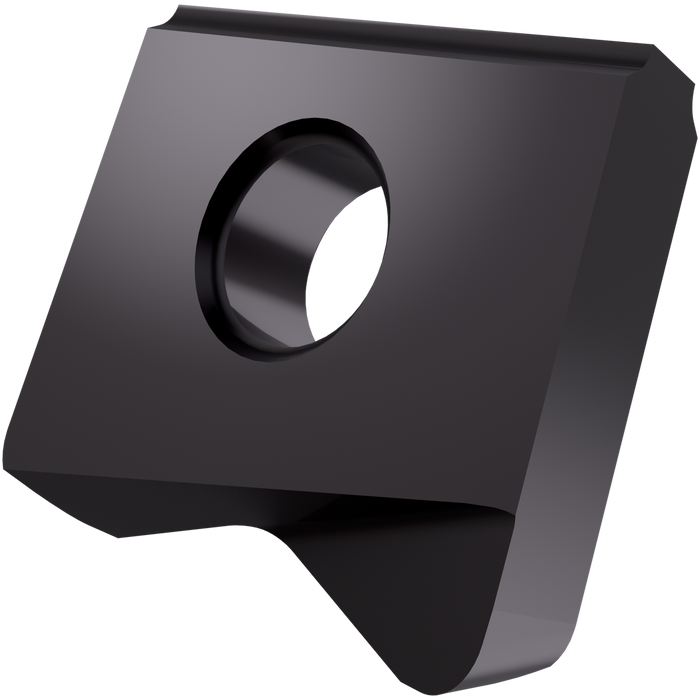

Toroidal copy milling insert with a diameter of .6299" and .0512" corner radii for a maximum depth of cut of .0472", A2 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$65.31 - $65.31
$65.31
$65.31 - $65.31
$65.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.047

Insert Design: PPHT

Insert Shape Code: P - pentagonal

Insert Thickness: 0.157

Chip Breaker: A2

Grade: 2003

Corner Radius - in: 0.051

Corner Radius - mm: 1.3

EDP: 7156117

EAN: 3603603162730

MFG Part Number: 7156117
