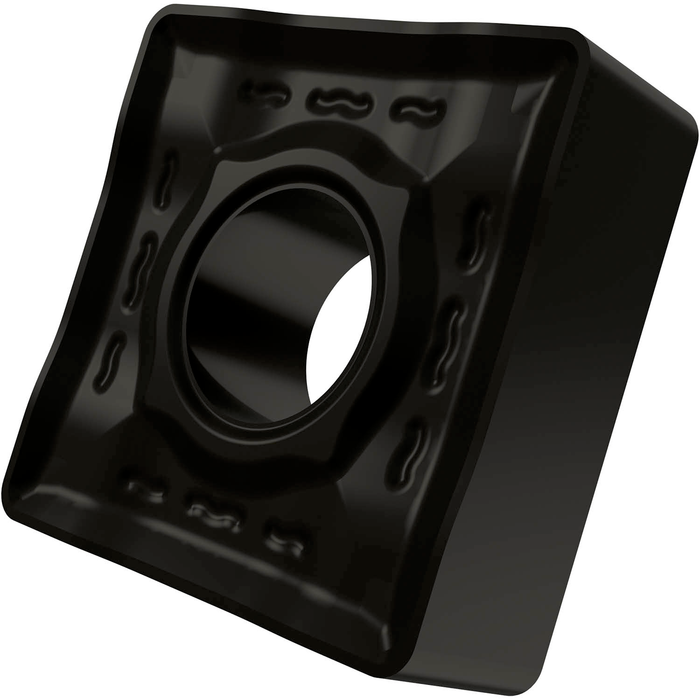

SNMM 644-NR2:T7325

SNMM 644-NR2:T7325

SKU DOR7156364
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NR2, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 - M25, for medium to extra heavy machining of stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$29.29 - $29.29
$29.29
$29.29 - $29.29
$29.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.472

Insert Design: SNMM

Insert Shape Code: S - square

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.75

Chip Breaker: NR2

Grade: T7325

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 7156364

EAN: 3603603164857

MFG Part Number: 7156364
