TNMG 331L-SI:T7325

TNMG 331L-SI:T7325

SKU DOR7156377
by Dormer Pramet
Primary Use: Possible Use:

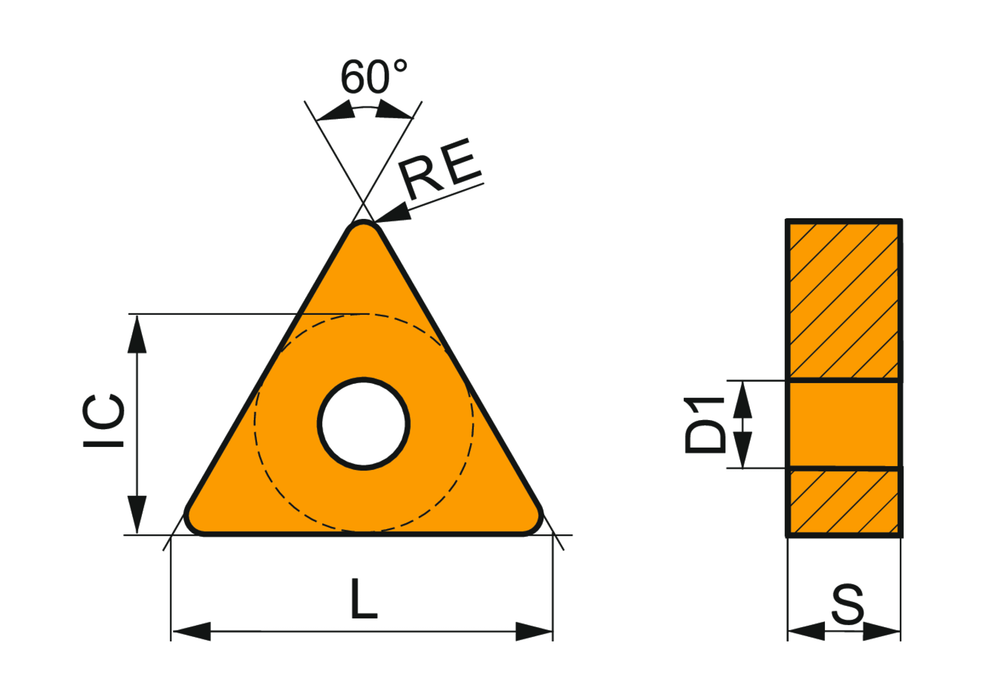

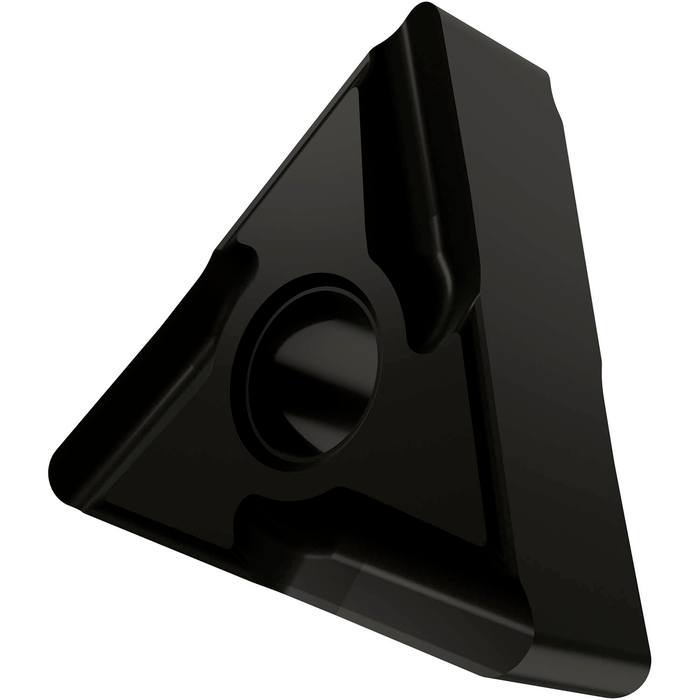

Double-sided negative turning insert, triangular with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker SI, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 - M25, for medium to heavy machining of stainless-steels with a left handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.64 - $11.64
$11.64
$11.64 - $11.64
$11.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.197

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.375

Chip Breaker: SI

Grade: T7325

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7156377

EAN: 3603603164987

MFG Part Number: 7156377
