TNMG 432-SM:T7325

TNMG 432-SM:T7325

SKU DOR7156401
by Dormer Pramet
Primary Use: Possible Use:

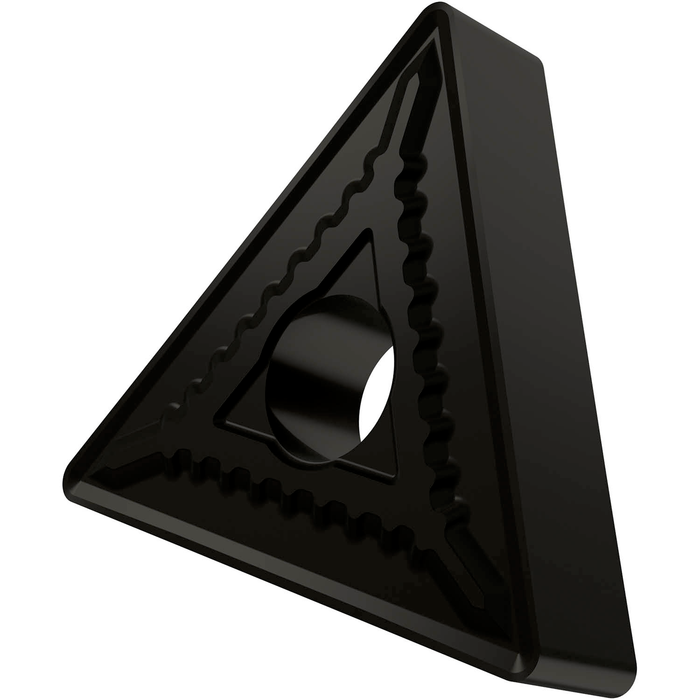

Double-sided negative turning insert, triangular with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker SM, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10-M25 and S10-S25, for fine to heavy machining of stainless-steels and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.75 - $13.75
$13.75
$13.75 - $13.75
$13.75
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

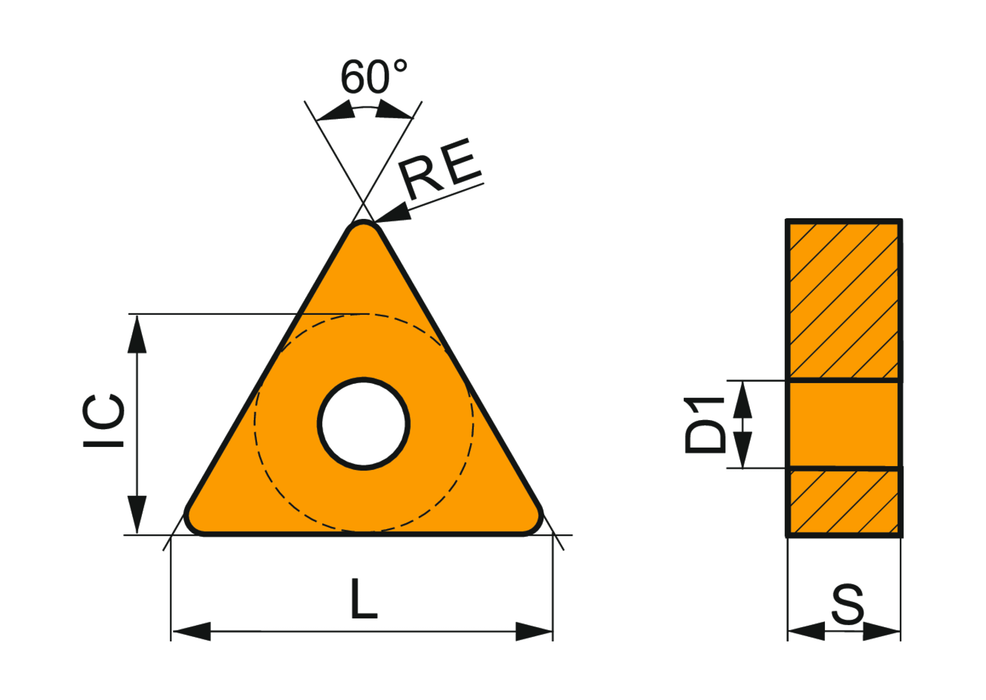

Max. Depth of Cut: 0.177

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Shape Code: gid://shopify/Metaobject/145756717118

Insert Thickness: 0.187

Steel and Cast Steel: Possible use

Stainless Steel: Primary use

High Temp Alloys: Primary use

Inscribed Circle Diameter: 0.5

Chip Breaker: SM

Grade: T7325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7156401

EAN: 3603603165229

MFG Part Number: 7156401
