CCMT 32.52-FM2:T6310

CCMT 32.52-FM2:T6310

SKU DOR7156870
by Dormer Pramet
Primary Use: Possible Use:

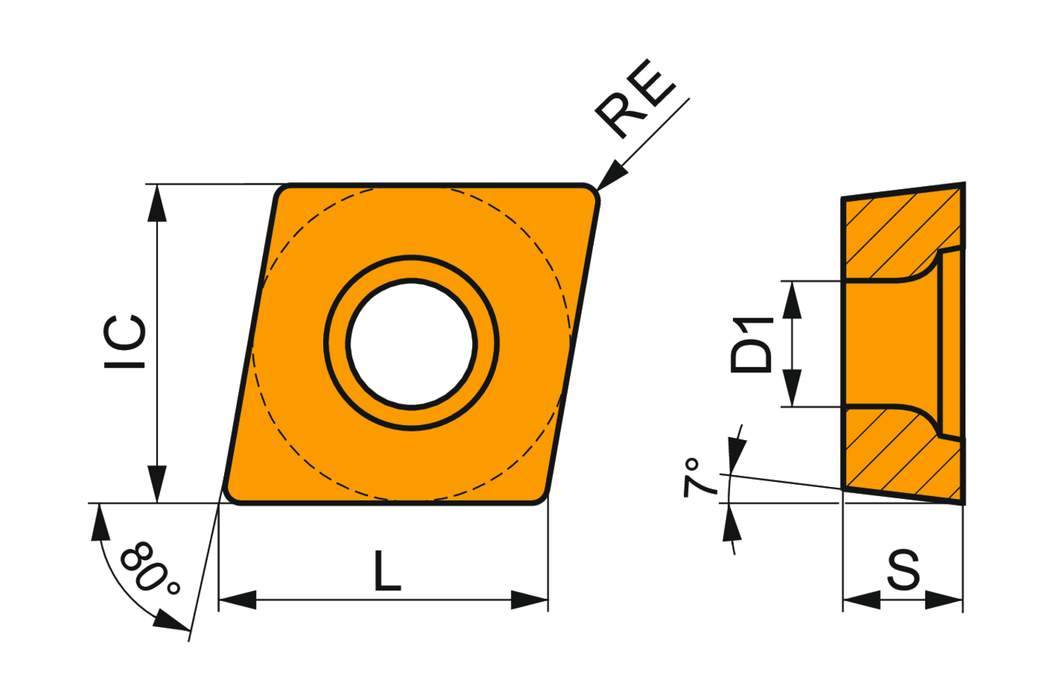

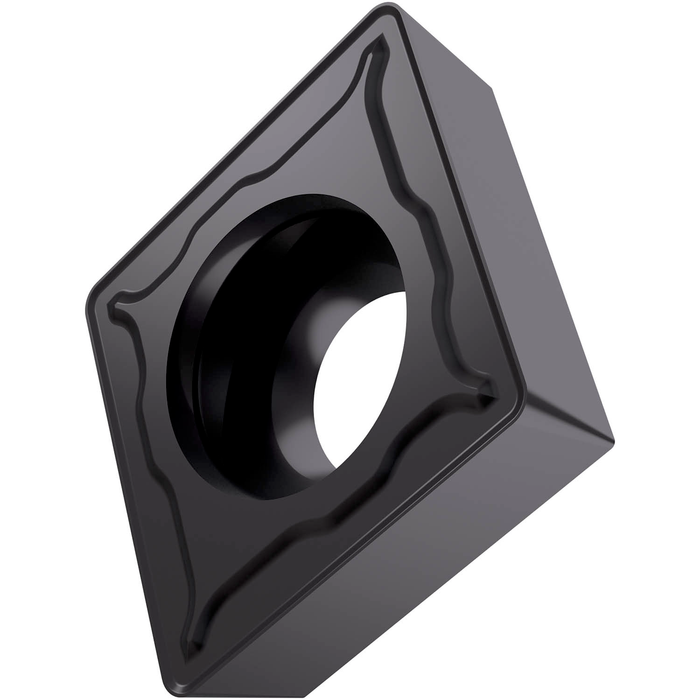

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM2, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 - P15 and K05 - K20, for fine to medium machining of steels and cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.79 - $11.79
$11.79
$11.79 - $11.79
$11.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.138

Insert Design: CCMT

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: FM2

Grade: T6310

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7156870

EAN: 3603603167483

MFG Part Number: 7156870
