SCGT 432-NF1:T7325

SCGT 432-NF1:T7325

SKU DOR7167417
by Dormer Pramet
Primary Use: Possible Use:

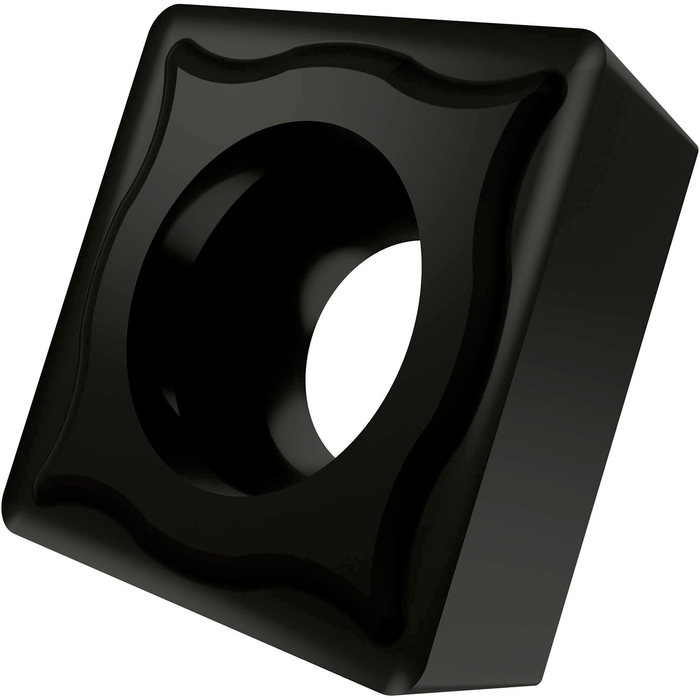

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker NF1, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10-M25 and S10-S25, for fine to medium machining of stainless-steels and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$28.54 - $28.54
$28.54
$28.54 - $28.54
$28.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

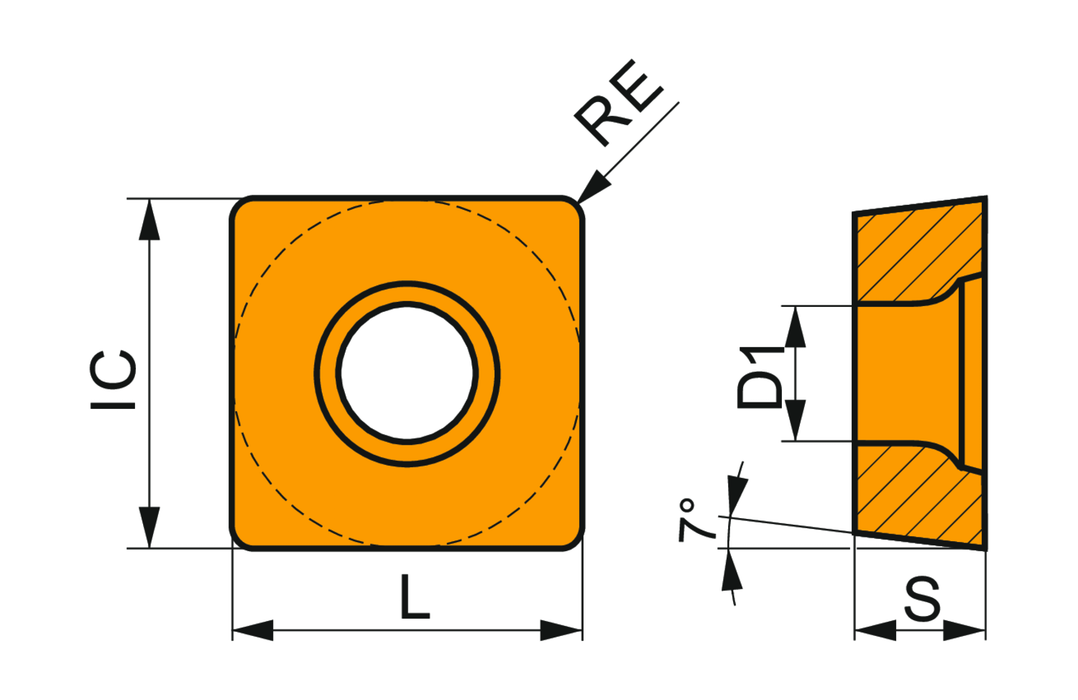

Max. Depth of Cut: 0.138

Insert Design: SCGT

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: NF1

Grade: T7325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7167417

EAN: 3603603170247

MFG Part Number: 7167417
