TCGT 21.51-NF1:T6310

TCGT 21.51-NF1:T6310

SKU DOR7167419
by Dormer Pramet
Primary Use: Possible Use:

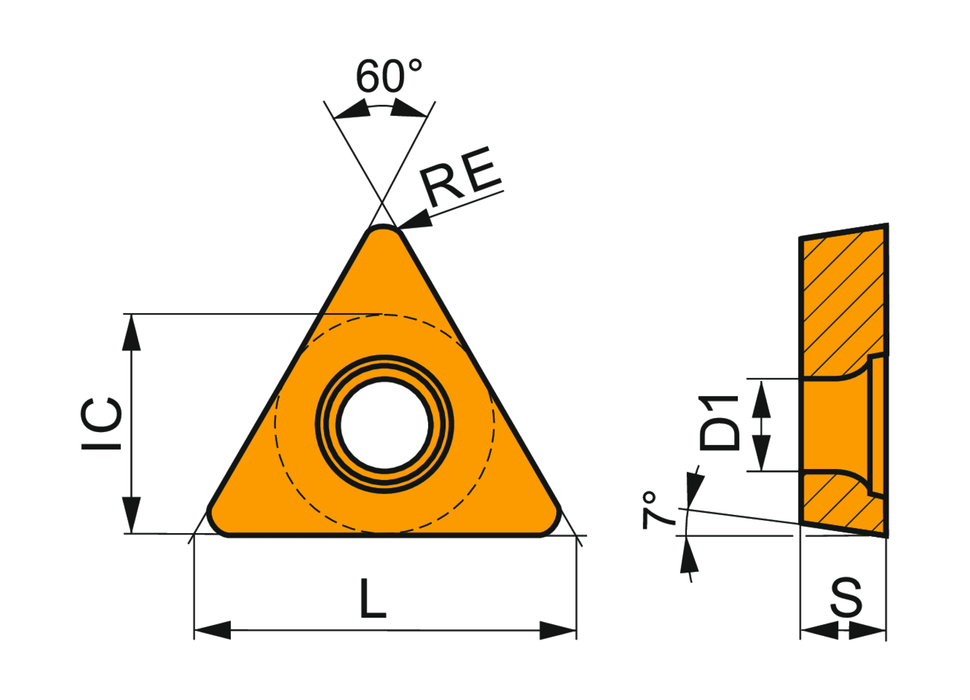

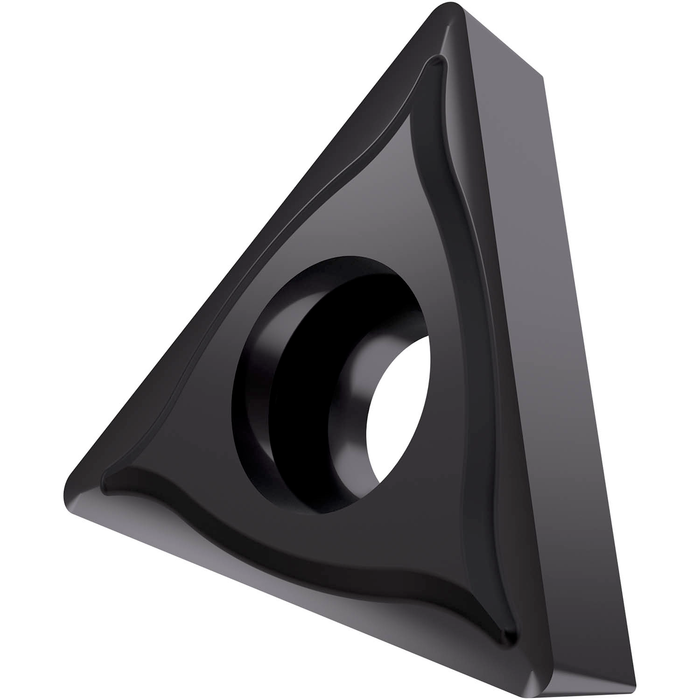

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker NF1, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 - P15/M01 - M15 and S01 - S15, for fine to medium machining of steels, stainless-steels and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.54 - $17.54
$17.54
$17.54 - $17.54
$17.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.098

Insert Design: TCGT

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.094

Inscribed Circle Diameter: 0.25

Chip Breaker: NF1

Grade: T6310

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7167419

EAN: 3603603170261

MFG Part Number: 7167419
