VCGT 2.520.2-SF2:H07

VCGT 2.520.2-SF2:H07

SKU DOR7168496
by Dormer Pramet
Primary Use: Possible Use:

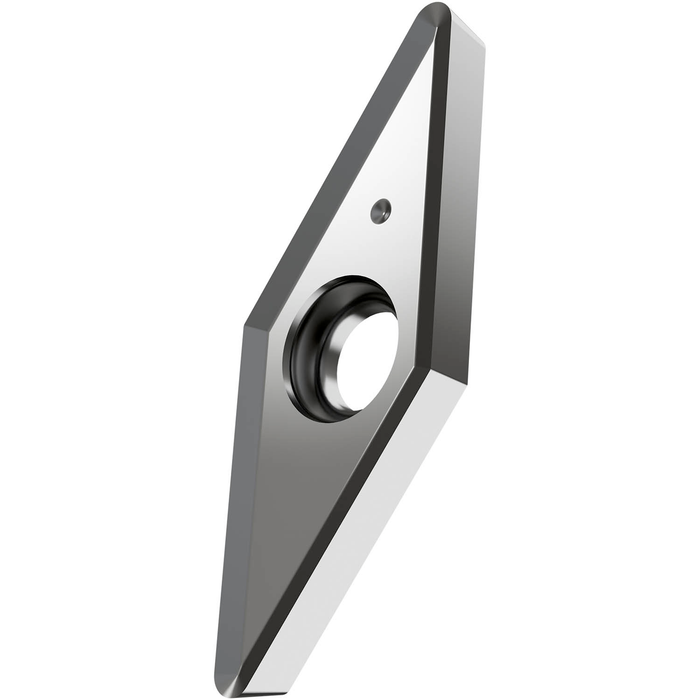

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/256" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF2, in grade H07, an uncoated WC-Co carbide within ISO range S01-S20, for fine to medium machining of super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$15.64 - $15.64
$15.64
$15.64 - $15.64
$15.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

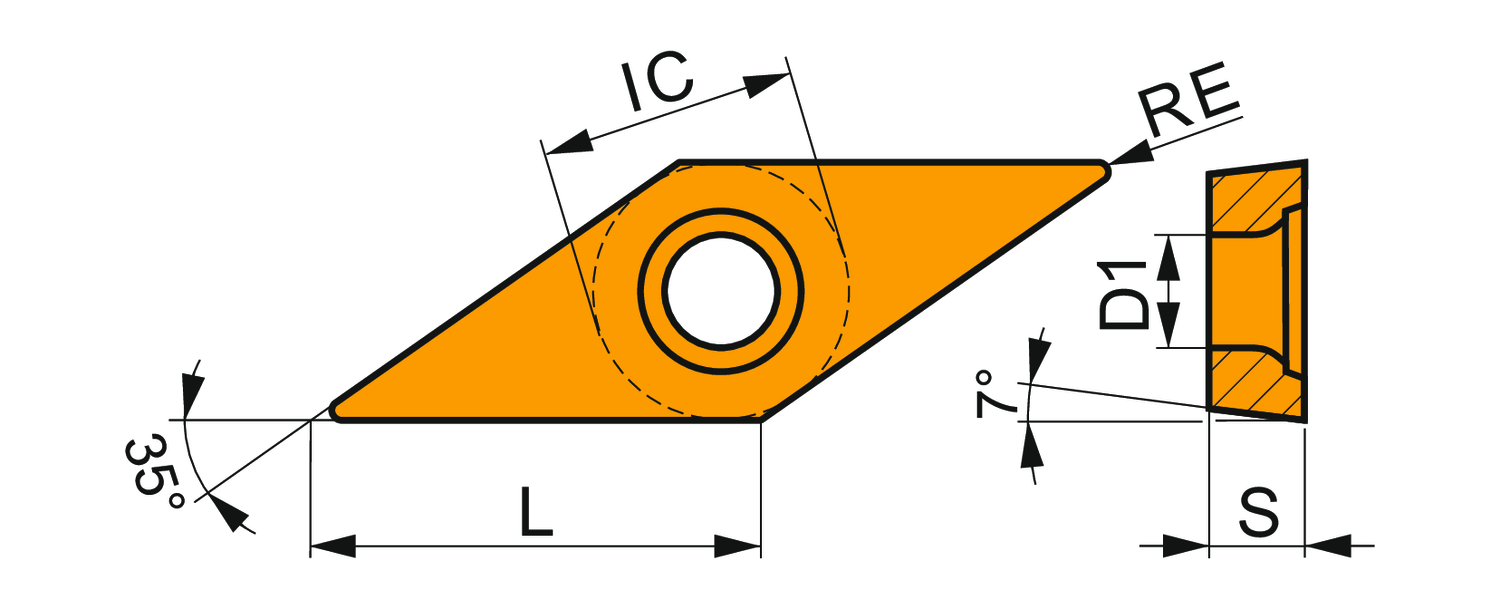

Max. Depth of Cut: 0.098

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.313

Chip Breaker: SF2

Grade: H07

Corner Radius - in: 0.004

Corner Radius - mm: 0.1

EDP: 7168496

EAN: 3603603171213

MFG Part Number: 7168496
