TCGT 32.52-SF3:T6310

TCGT 32.52-SF3:T6310

SKU DOR7168588
by Dormer Pramet
Primary Use: Possible Use:

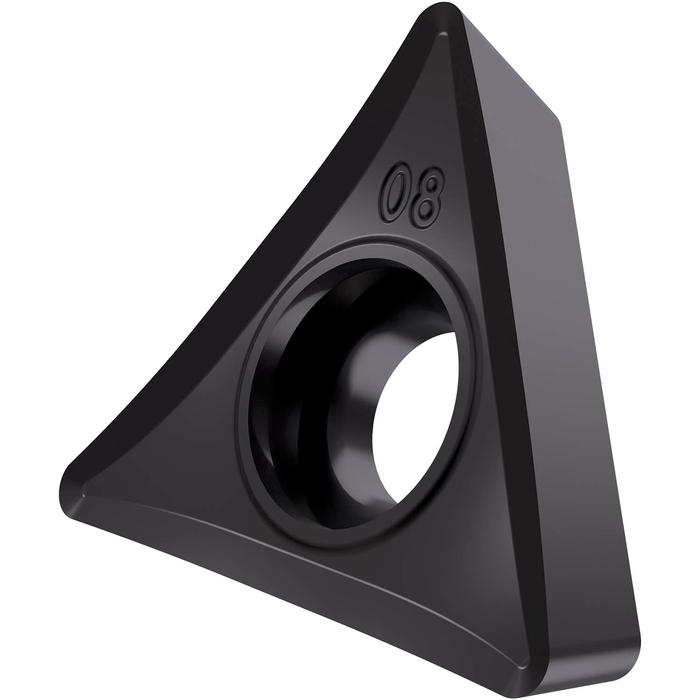

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF3, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 - M15/N05 - N20 and S01 - S15, for fine to medium machining of stainless-steels, non-ferrous metals and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$21.11 - $21.11
$21.11
$21.11 - $21.11
$21.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

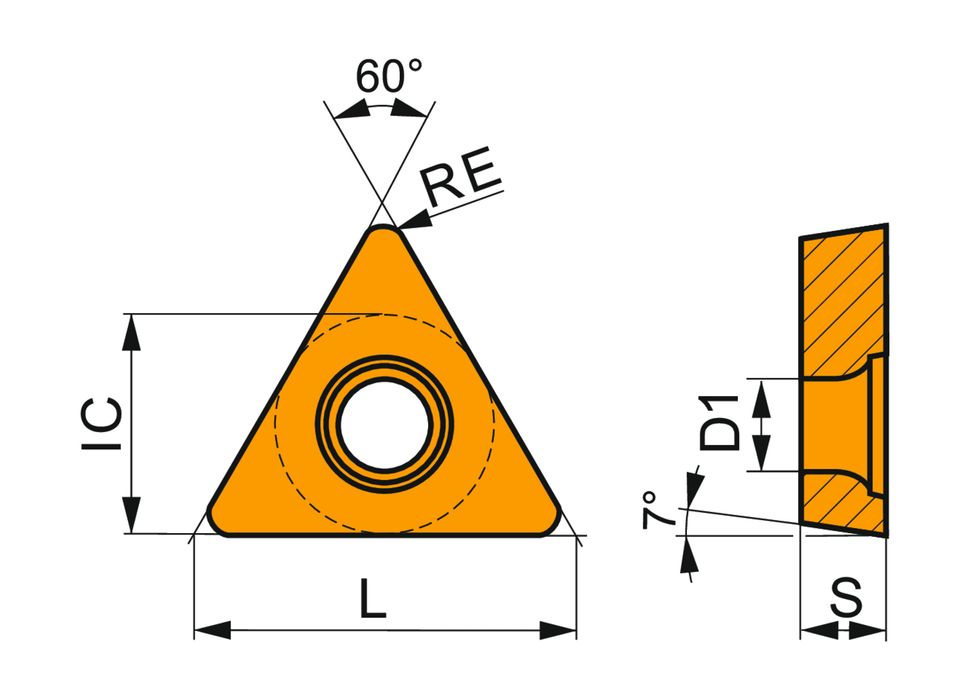

Max. Depth of Cut: 0.126

Insert Design: TCGT

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.166

Inscribed Circle Diameter: 0.375

Chip Breaker: SF3

Grade: T6310

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7168588

EAN: 3603603171848

MFG Part Number: 7168588
