VCGT 332-SF3:T8315

VCGT 332-SF3:T8315

SKU DOR7168613
by Dormer Pramet
Primary Use: Possible Use:

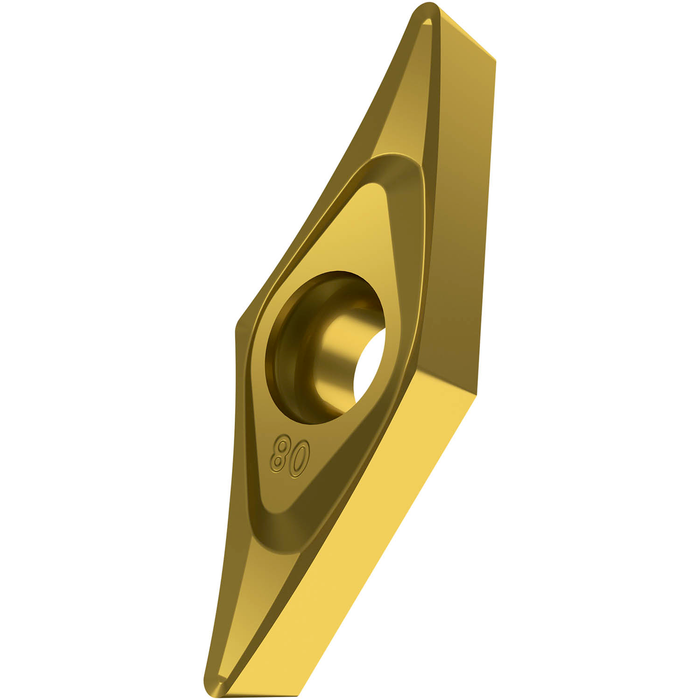

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF3, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO ranges M05 - M20 and N05 - N25, for fine to medium machining of stainless-steels and non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$33.04 - $33.04
$33.04
$33.04 - $33.04
$33.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

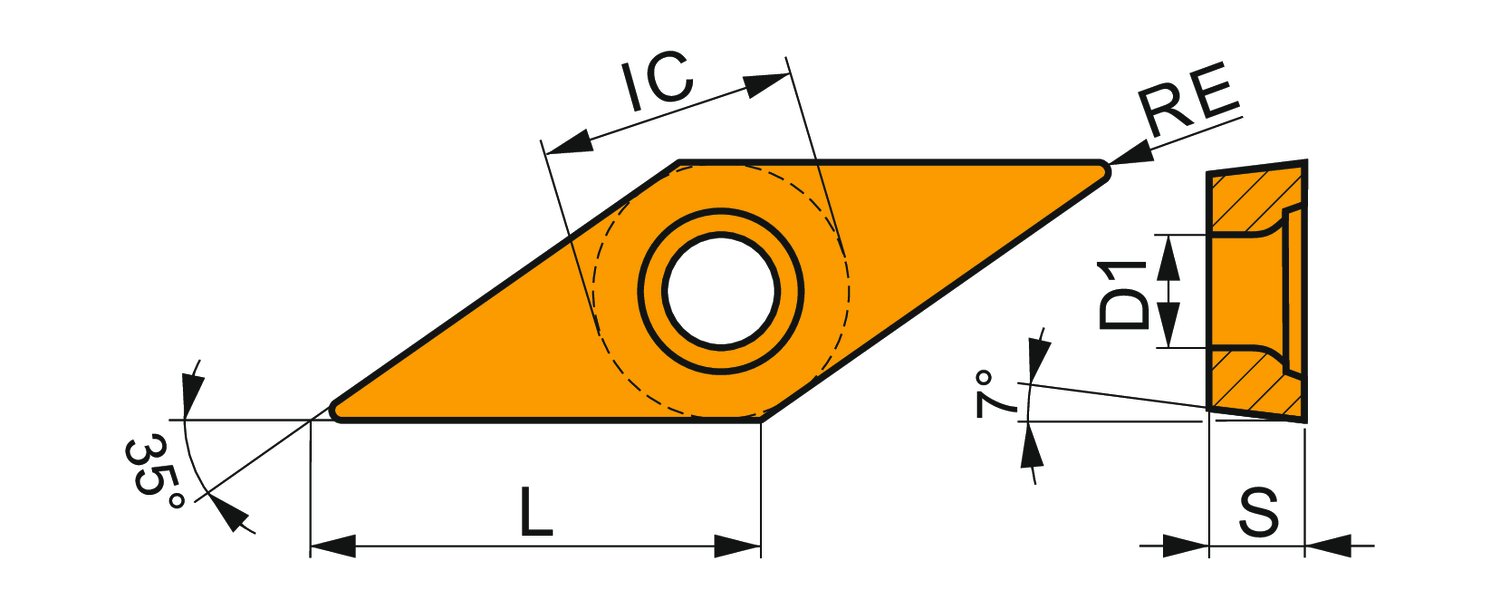

Max. Depth of Cut: 0.118

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.197

Inscribed Circle Diameter: 0.375

Chip Breaker: SF3

Grade: T8315

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7168613

EAN: 3603603172098

MFG Part Number: 7168613
