ECMW 2.521:H07

ECMW 2.521:H07

SKU DOR7168664
by Dormer Pramet
Primary Use:

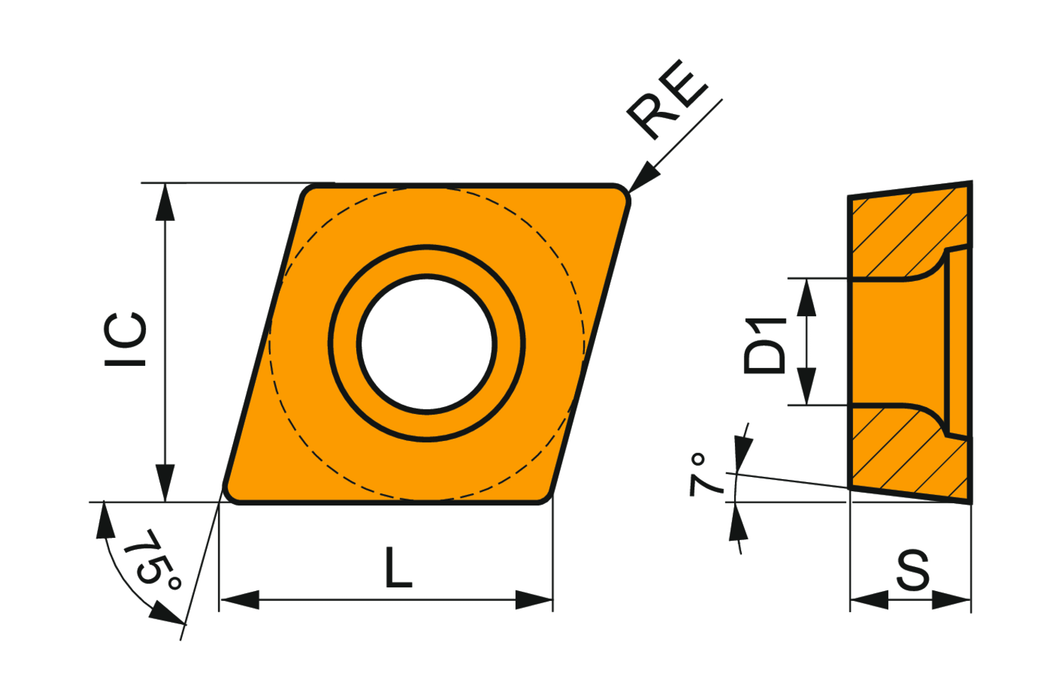

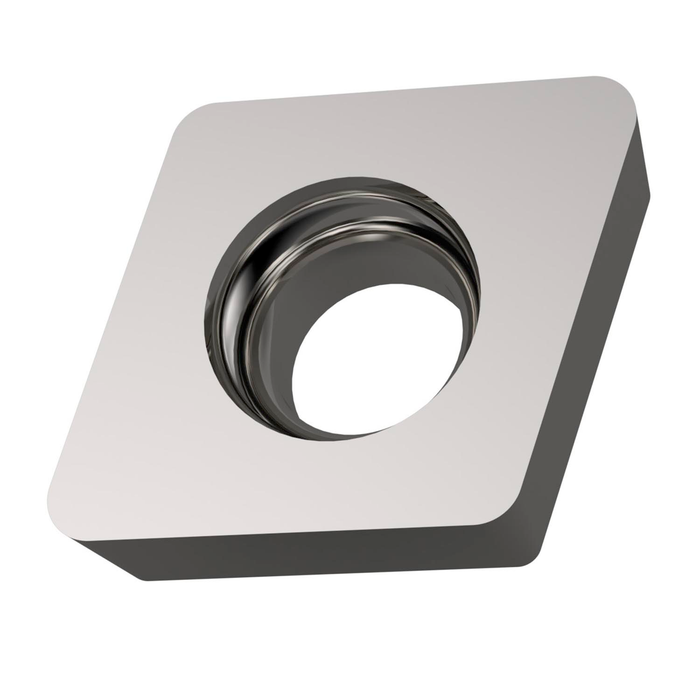

Single-sided positive turning insert, 75° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade H07, an uncoated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$9.19 - $9.19
$9.19
$9.19 - $9.19
$9.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.22

Insert Design: ECMW

Insert Shape Code: E - rhombic 75° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.313

Chip Breaker: No chipbreaker

Grade: H07

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7168664

EAN: 3603603172388

MFG Part Number: 7168664
