TPMR 321-PF2:TT010

TPMR 321-PF2:TT010

SKU DOR7168746
by Dormer Pramet
Primary Use: Possible Use:

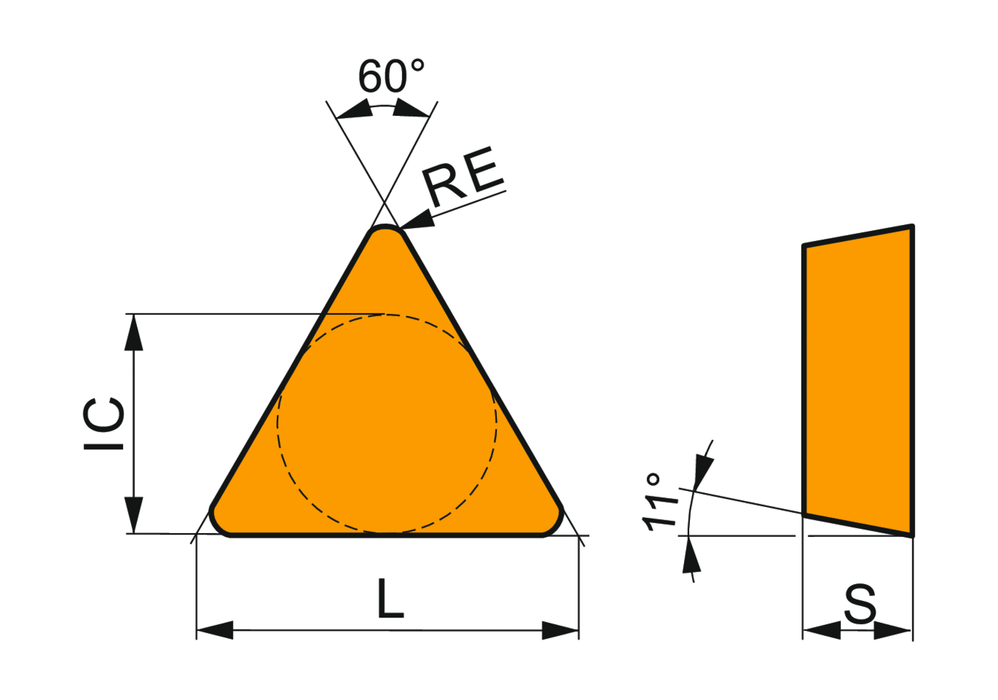

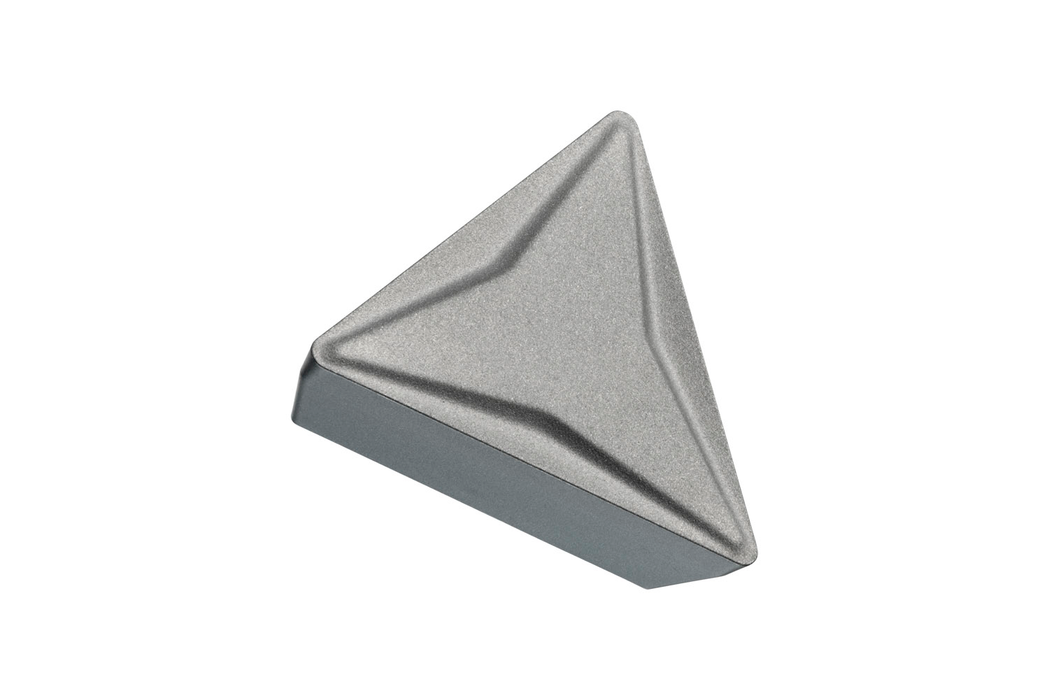

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 3/8", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker PF2, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.71 - $13.71
$13.71
$13.71 - $13.71
$13.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.15

Insert Design: TPMR

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: PF2

Grade: TT010

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7168746

EAN: 3603603172432

MFG Part Number: 7168746
