T215M3

T215M3

SKU DOR7174123
by Dormer Pramet
Primary Use:

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 3.5mm shank and 2.7mm square drive, solid carbide with TiCN coating for 3xD through or blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$246.71 - $246.71
$246.71
$246.71 - $246.71
$246.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

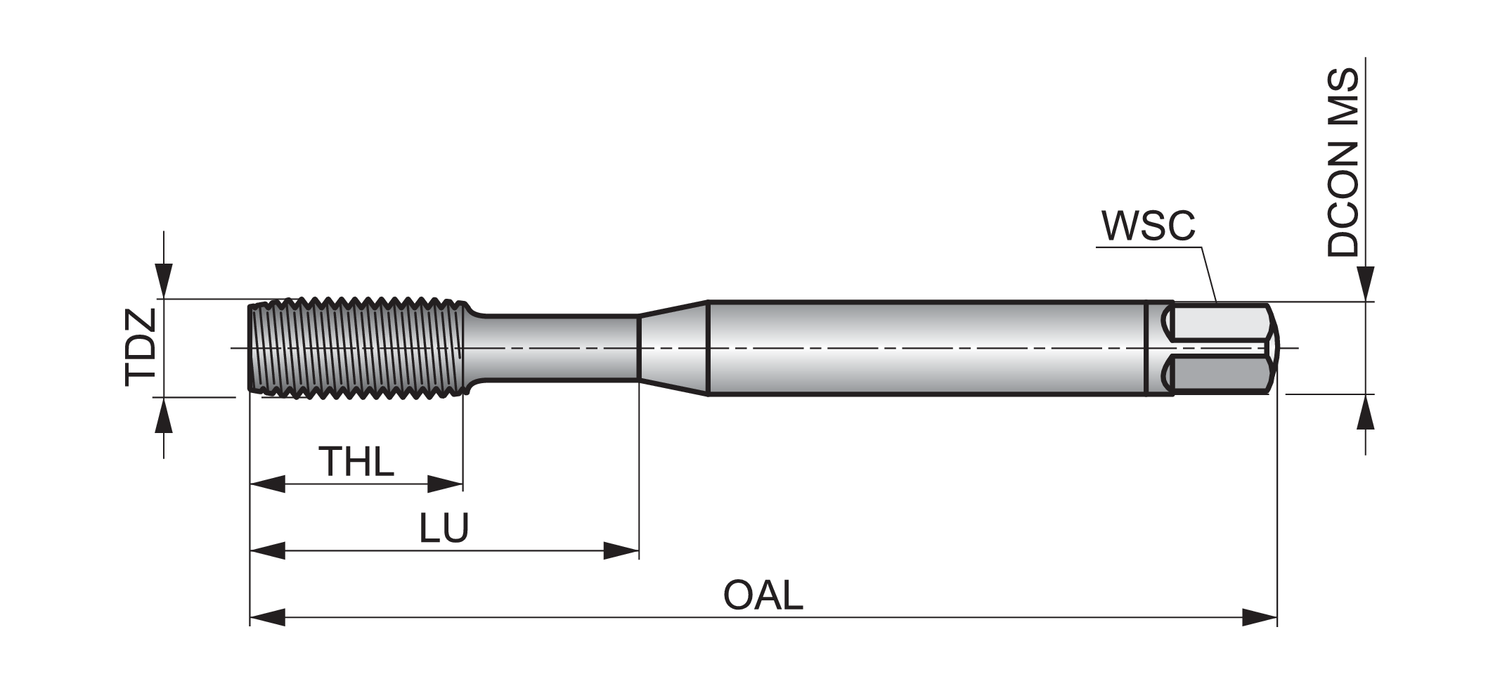

Material: HM

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.2047

Connetion Diameter: 0.1378

Tool Direction: Right

Diameter Size: 3

Pitch - mm: 0.5

Pitch - in: 0.0197

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: TiCN

EDP: 47174123

EAN: 7320760704622

MFG Part Number: 7174123
