T215M6

T215M6

SKU DOR7174126
by Dormer Pramet
Primary Use:

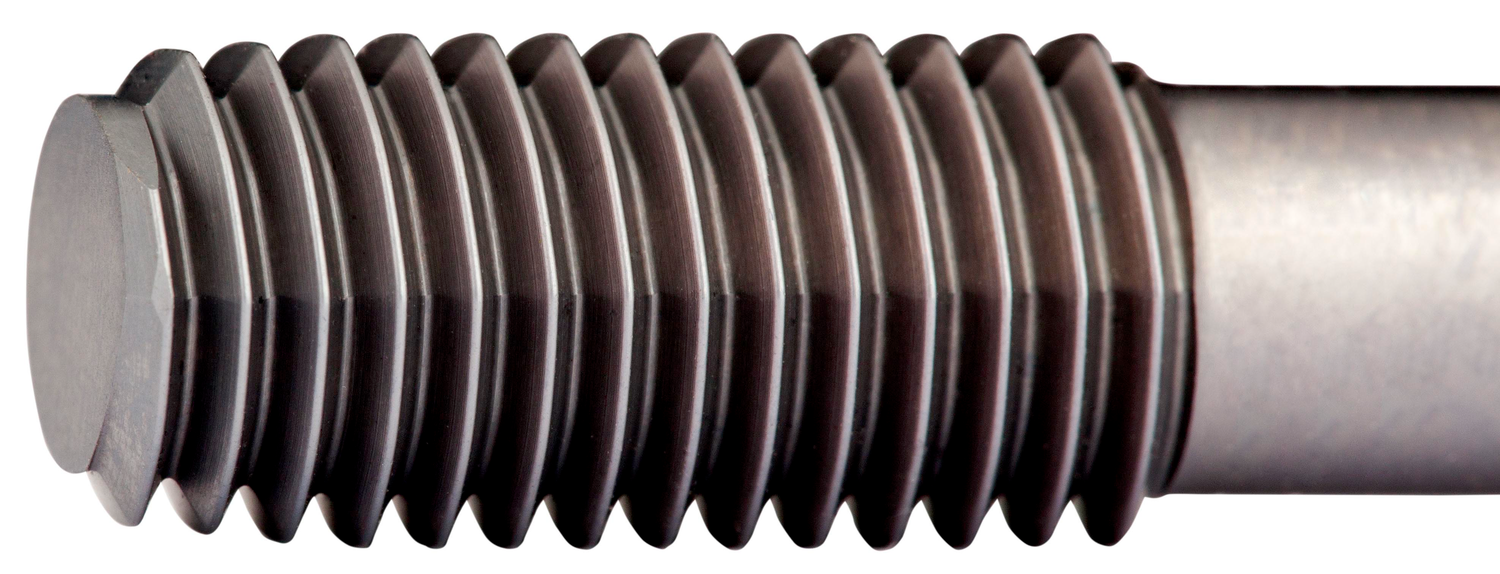

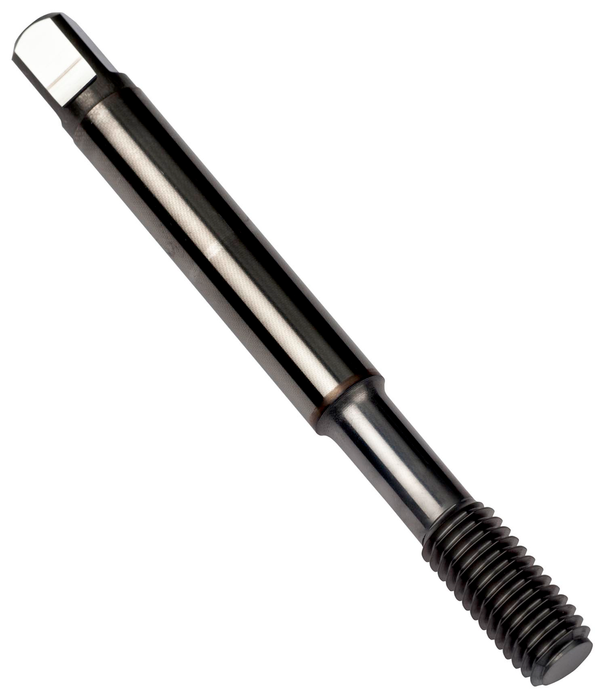

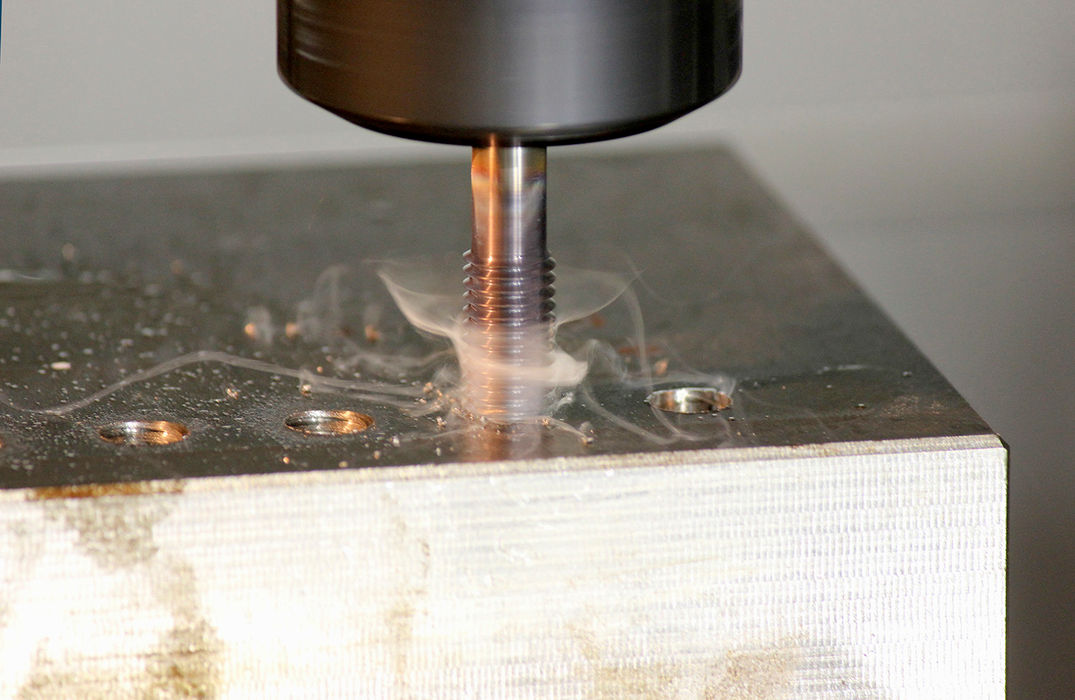

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 6.0mm shank and 4.9mm square drive, solid carbide with TiCN coating for 3xD through or blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$267.14 - $267.14
$267.14
$267.14 - $267.14
$267.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

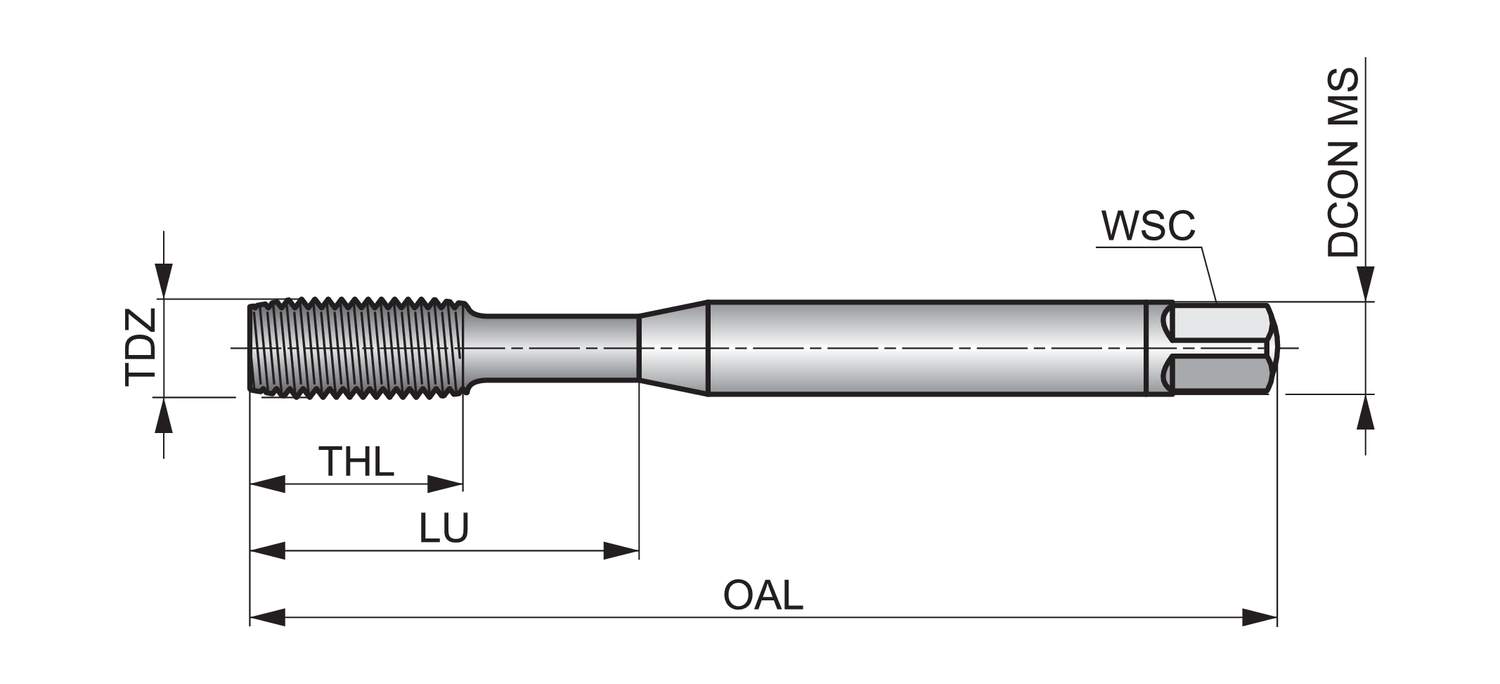

Material: HM

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 3.1496

Connetion Diameter: 0.2362

Tool Direction: Right

Diameter Size: 6

Pitch - mm: 1.0

Pitch - in: 0.0394

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 1.1811

Grade: TiCN

EDP: 47174126

EAN: 7320760704653

MFG Part Number: 7174126
