T215M8

T215M8

SKU DOR7174127
by Dormer Pramet
Primary Use:

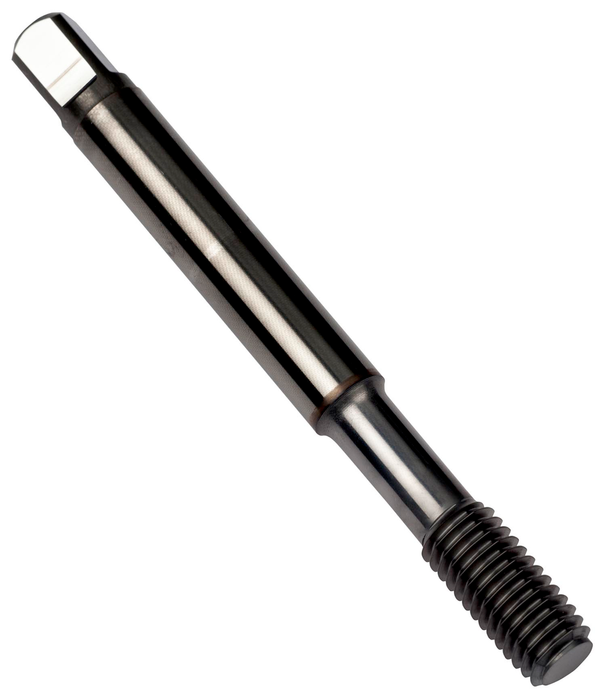

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 8.0mm shank and 6.2mm square drive, solid carbide with TiCN coating for 3xD through or blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$304.07 - $304.07
$304.07
$304.07 - $304.07
$304.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

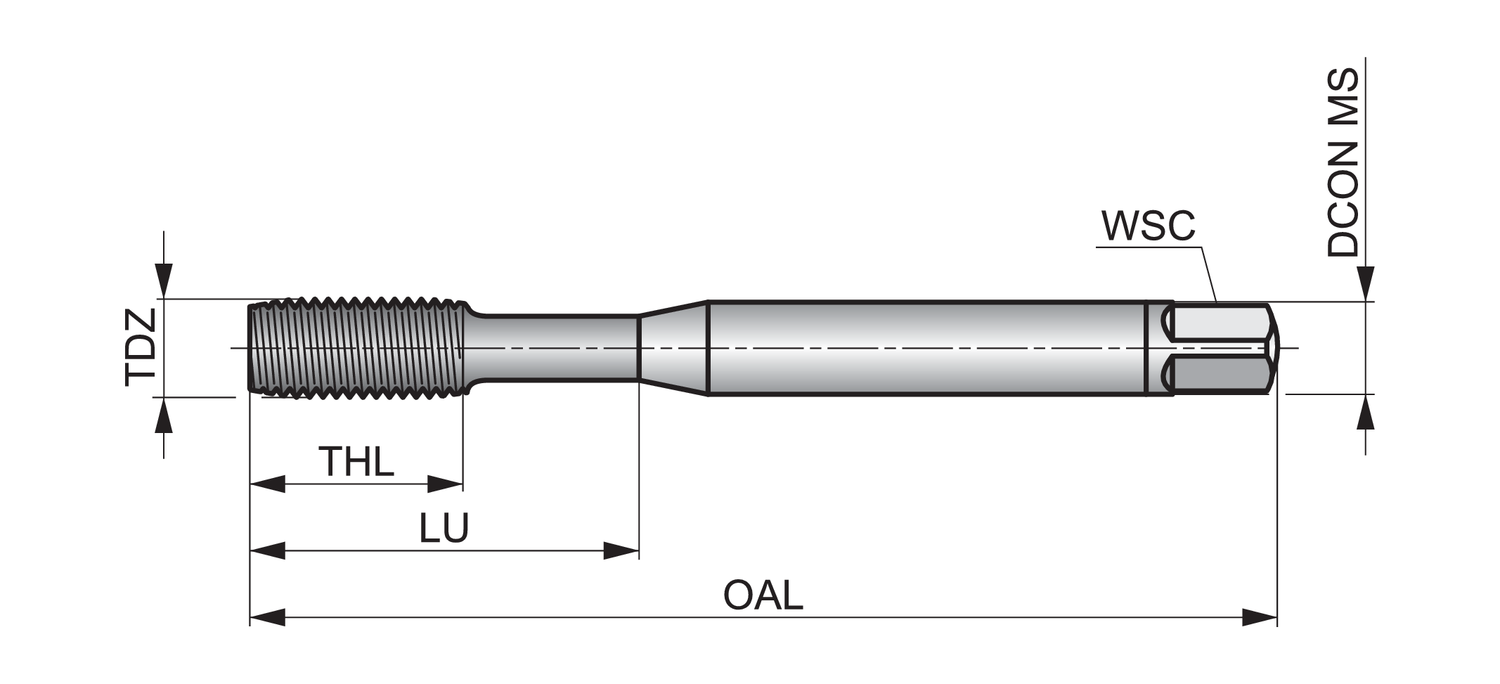

Material: HM

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 3.5433

Connetion Diameter: 0.315

Tool Direction: Right

Diameter Size: 8

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 1.378

Grade: TiCN

EDP: 47174127

EAN: 7320760704660

MFG Part Number: 7174127
