T205M10

T205M10

SKU DOR7182370
by Dormer Pramet
Primary Use:

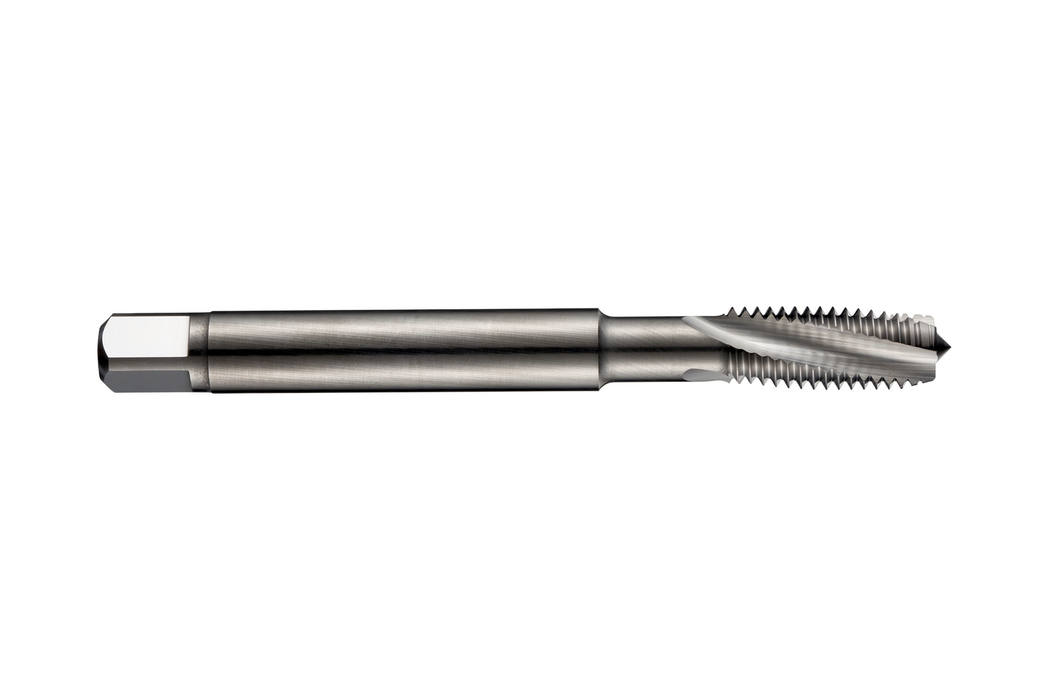

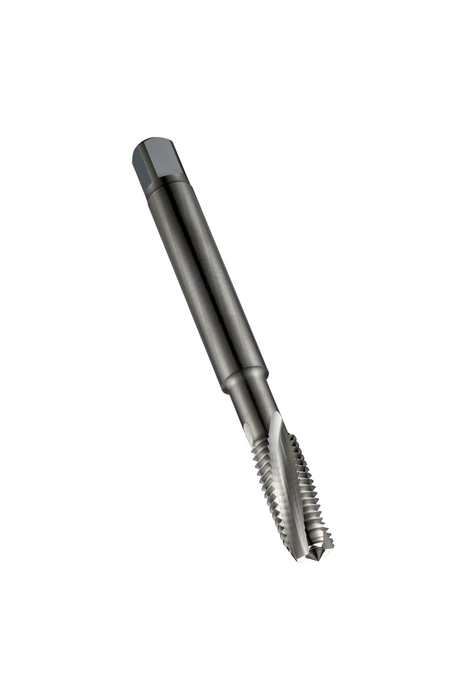

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0mm shank and 8.0mm square drive, solid carbide with bright finish and 15° helix angle for 2xD blind hole threading in malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron and cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$334.71 - $334.71
$334.71
$334.71 - $334.71
$334.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

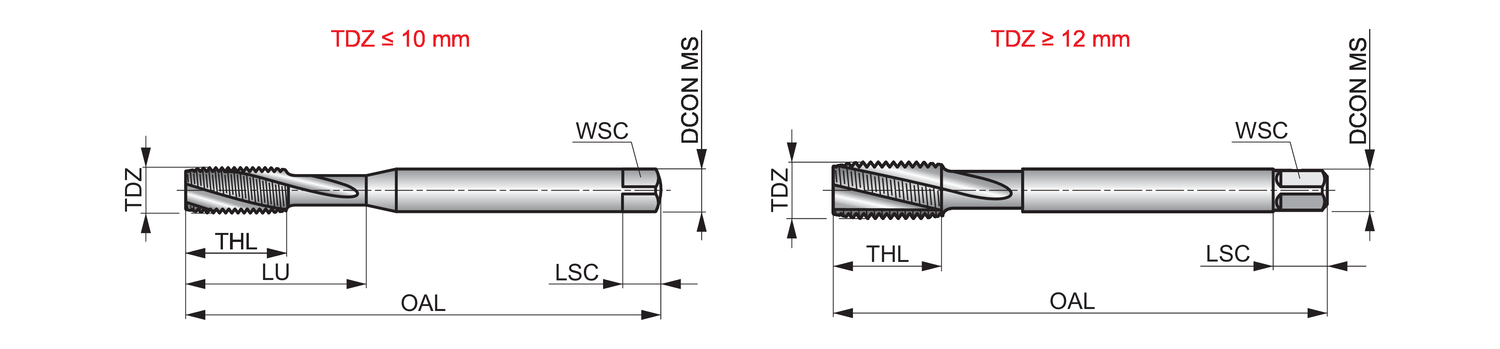

Material: HM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 3.937

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: 10

Pitch - mm: 1.5

Pitch - in: 0.0591

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 1.5354

Grade: Bright

EDP: 47182370

EAN: 7320760706435

MFG Part Number: 7182370
