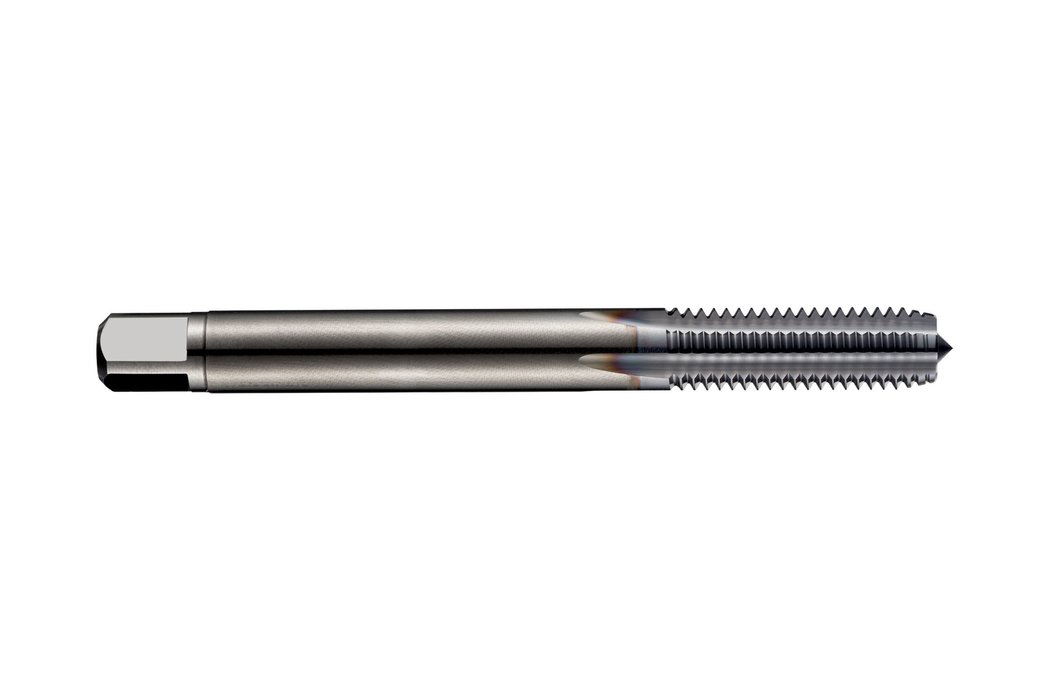

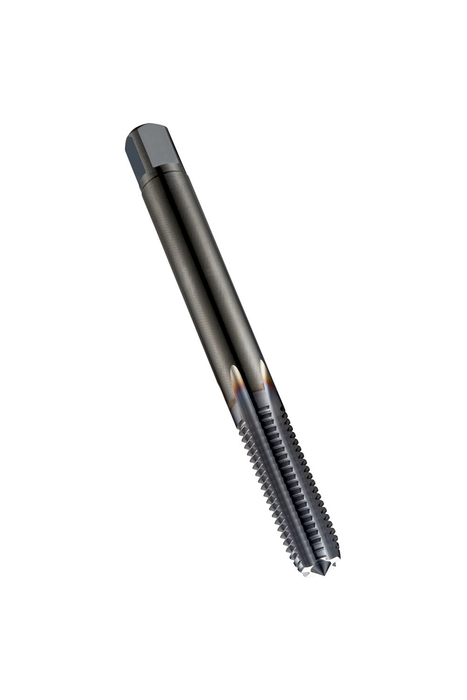

T210M4

T210M4

SKU DOR7182378
by Dormer Pramet
Primary Use:

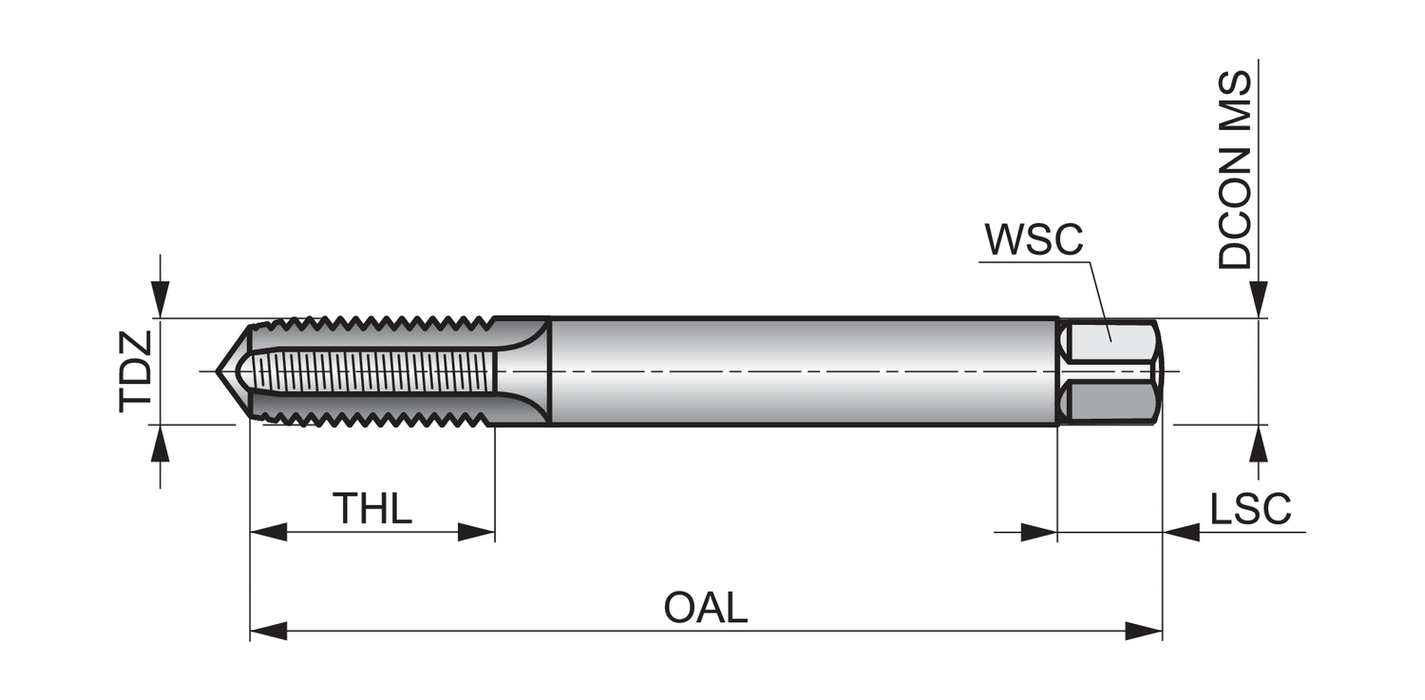

Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in hardened steel >55HRC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$207.43 - $207.43
$207.43
$207.43 - $207.43
$207.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 2.4803

Connetion Diameter: 0.1772

Tool Direction: Right

Diameter Size: 4

Pitch - mm: 0.7

Pitch - in: 0.0276

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: TiCN

EDP: 47182378

EAN: 7320760706510

MFG Part Number: 7182378
