A1231/8S
A1231/8S
A1231/8S
A1231/8S

A1231/8S

SKU DOR7189764
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.09 CAD - $3.09 CAD
$3.09 CAD
$3.09 CAD - $3.09 CAD
$3.09 CAD

Sold in packs of: 10

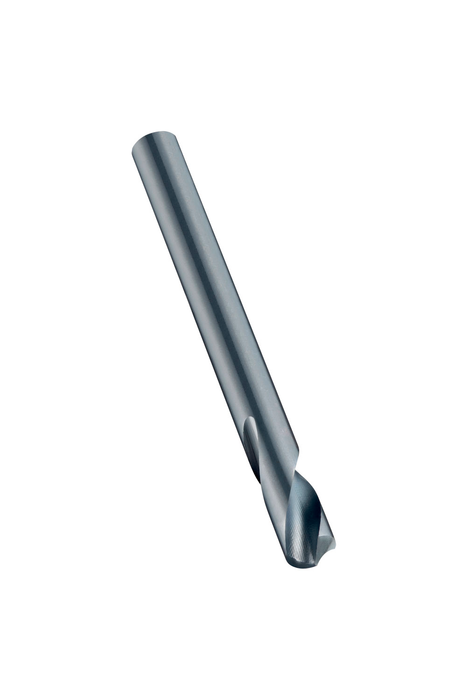

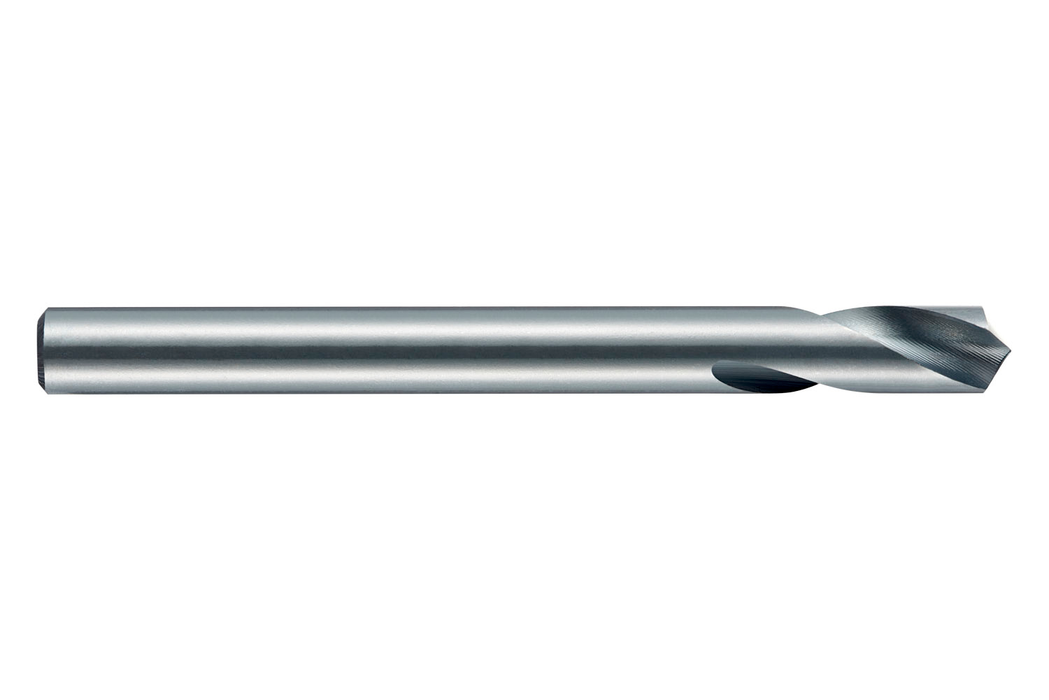

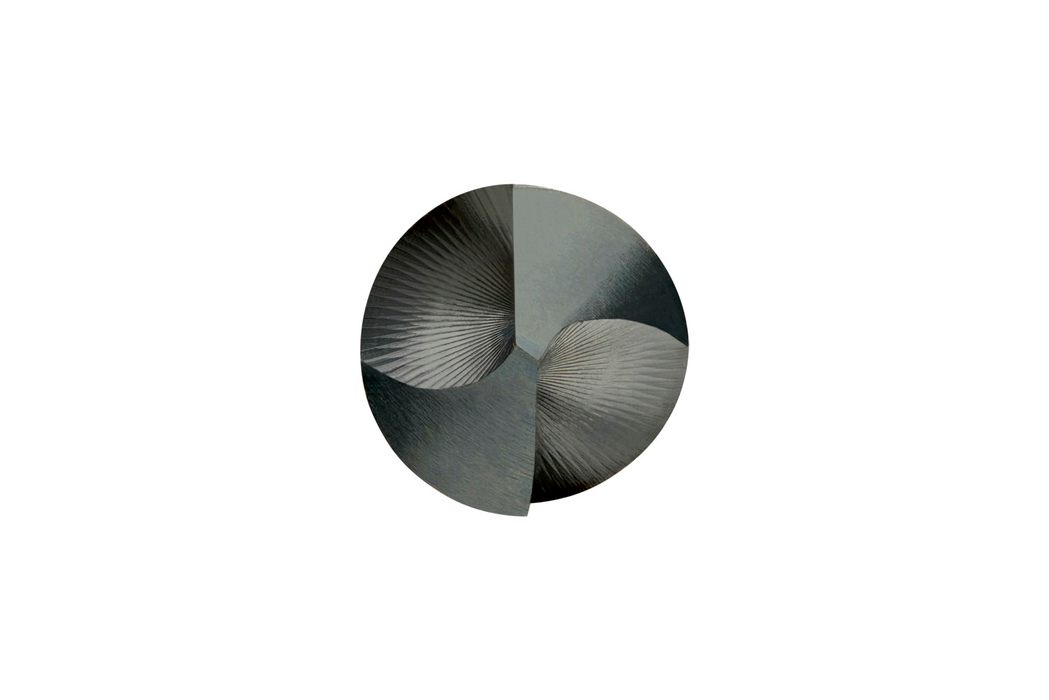

Sheet metal drill with straight shank, diameter 0.1252" (1/8S) with an overall length of 49mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1231/8S
GradeSteam Tempered
Product Number7189764
Product FamilyA123

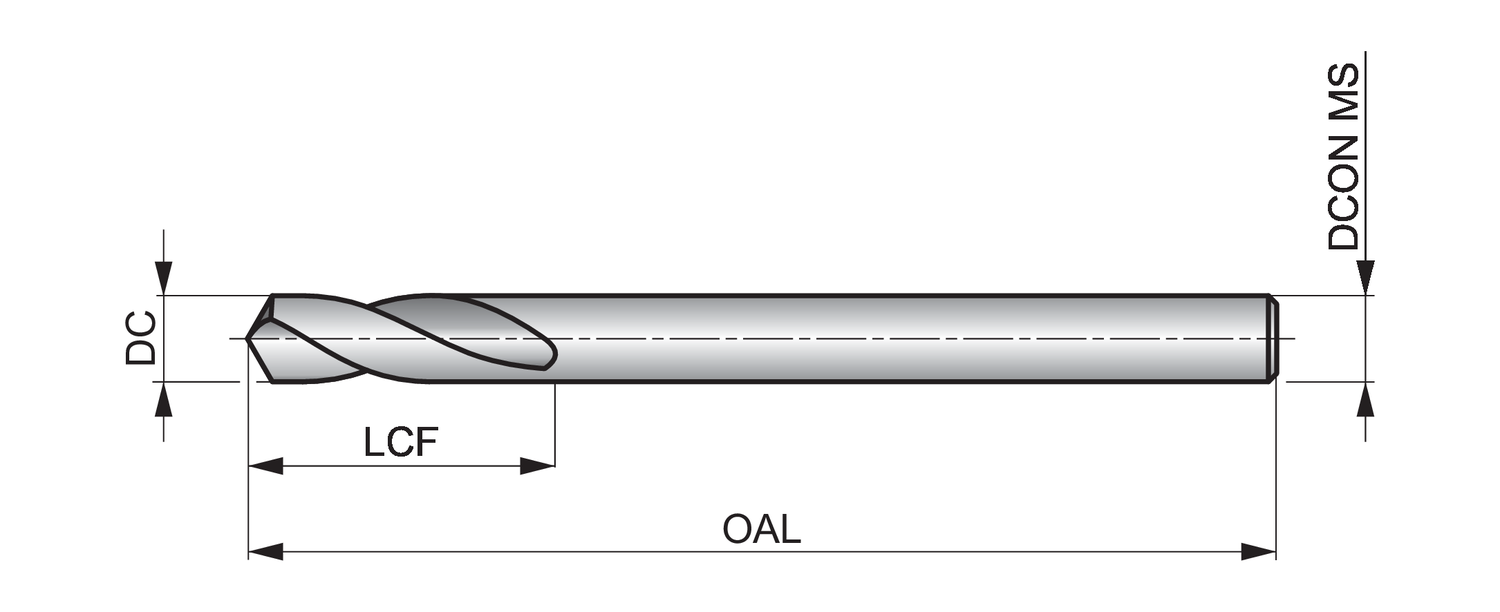

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1252"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number47189764
EAN7320760707814
File Type Download
A1231/8S — 3D Model STP Download
A1231/8S — Line Drawing PDF Download
