A1234.2S

A1234.2S

SKU DOR7189783
by Dormer Pramet
Primary Use: Possible Use:

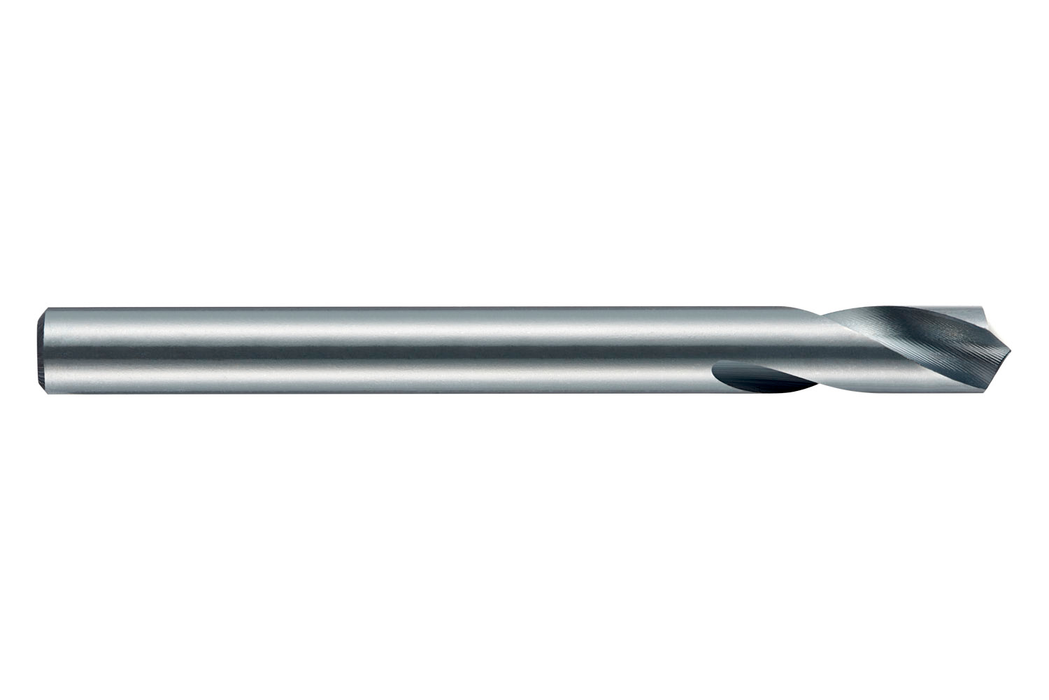

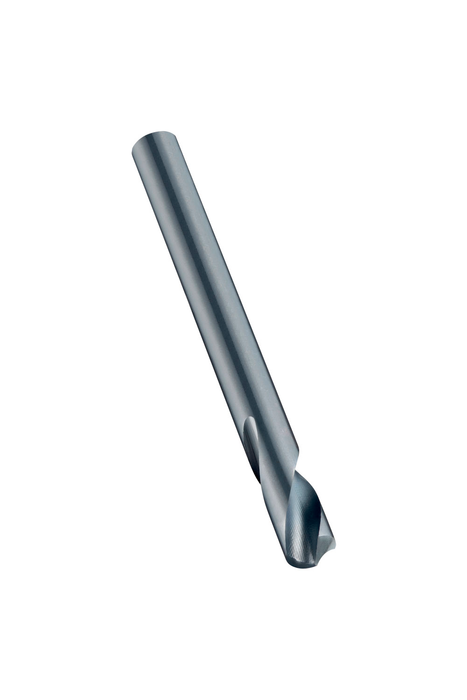

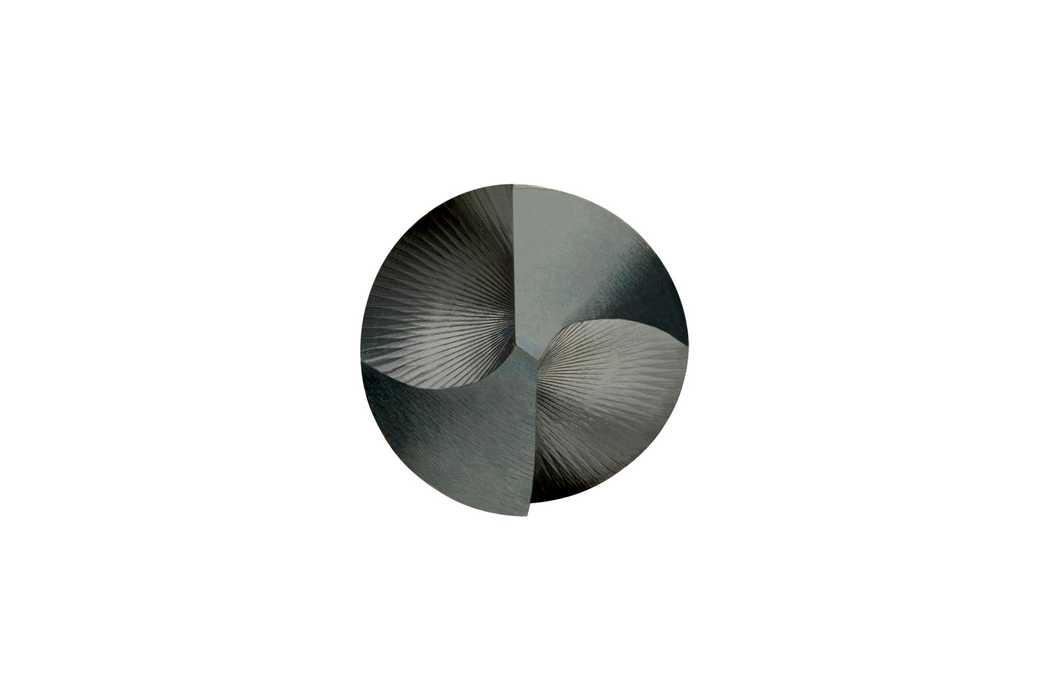

Sheet metal drill with straight shank, diameter 4.2mm with an overall length of 55mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.07 - $3.07
$3.07
$3.07 - $3.07
$3.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

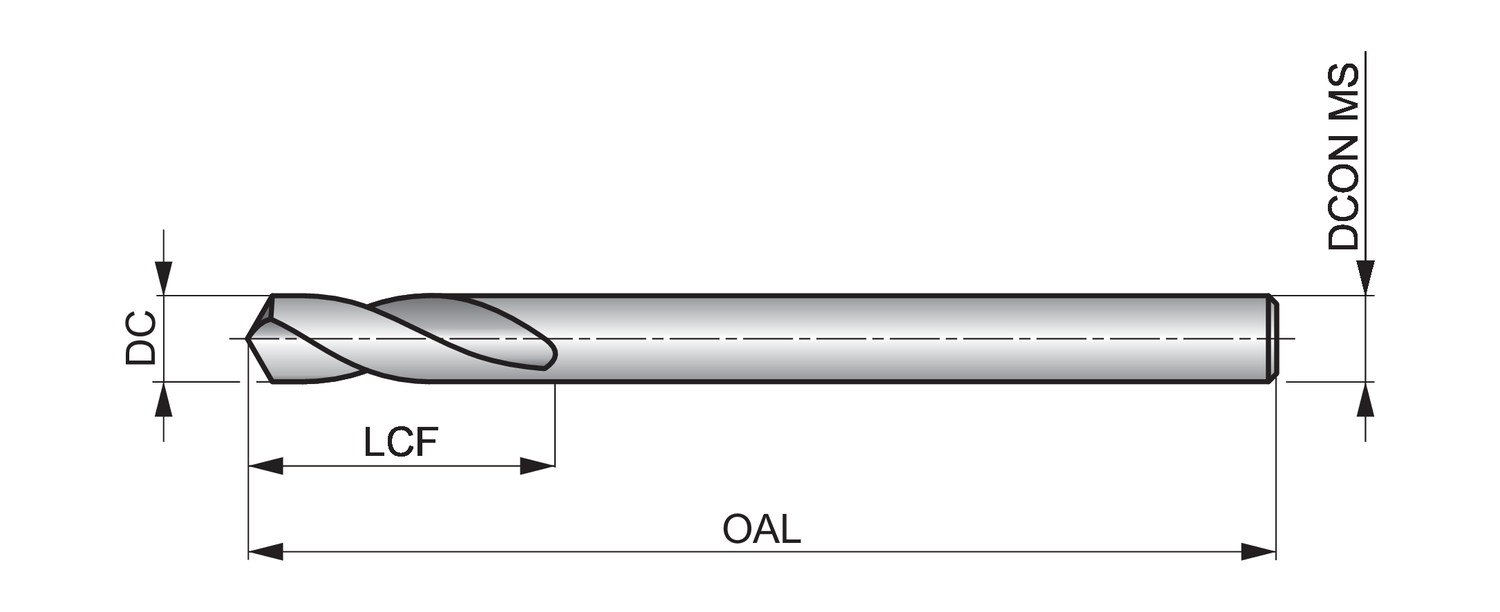

Material: HSS

Cutting Diameter - in (DC): 0.1654

Cutting Diameter - mm (DC): 4.2

Drill Point Angle - deg: 120

Flute Length: 0.7087

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.1654

Connetion Diameter: 0.1654

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 47189783

EAN: 7320760707890

MFG Part Number: 7189783
