A1237/32S
A1237/32S
A1237/32S
A1237/32S

A1237/32S

SKU DOR7189790
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.23 CAD - $6.23 CAD
$6.23 CAD
$6.23 CAD - $6.23 CAD
$6.23 CAD

Sold in packs of: 10

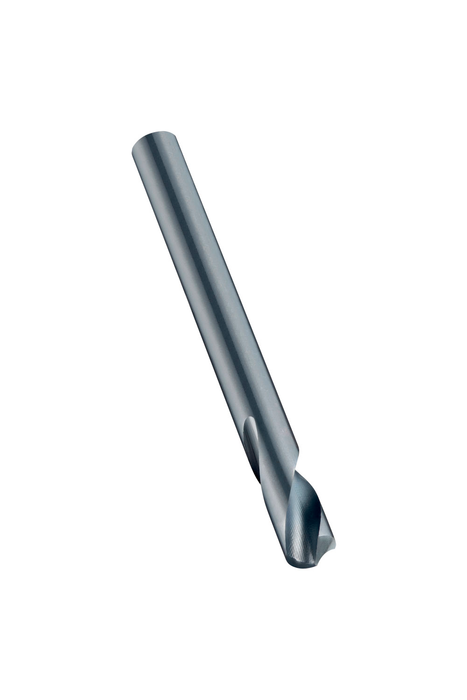

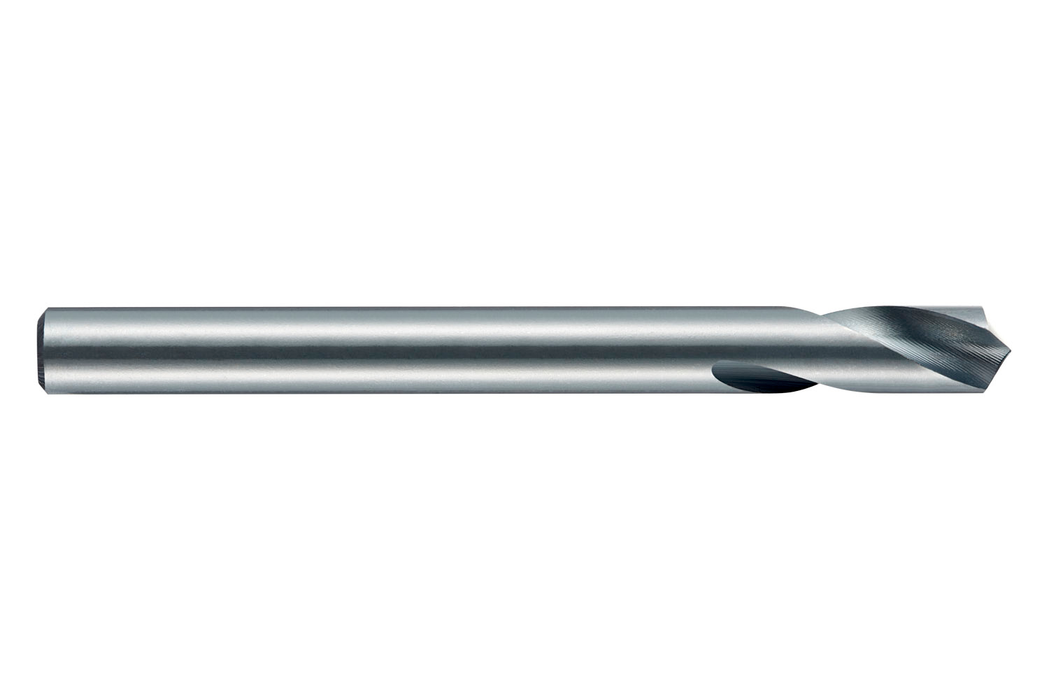

Sheet metal drill with straight shank, diameter 0.2188" (7/32S) with an overall length of 66mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1237/32S
GradeSteam Tempered
Product Number7189790
Product FamilyA123

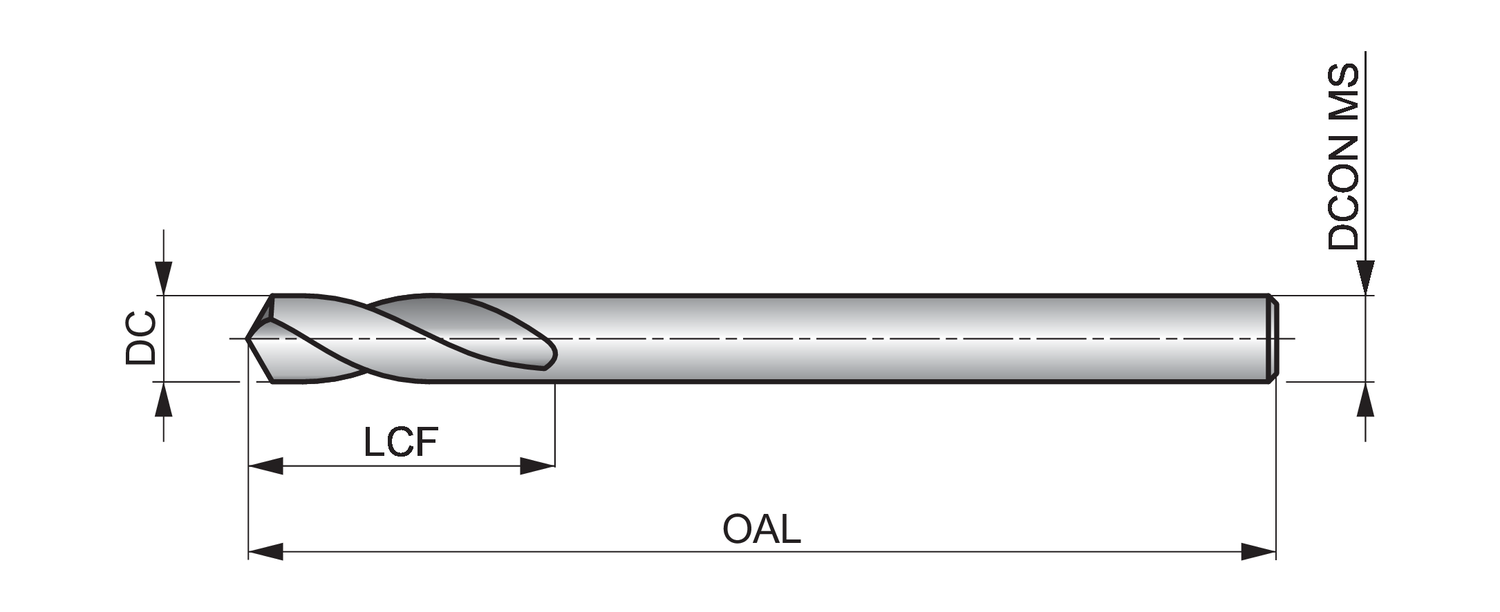

Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2189"
Connection Dia. — mm (DCON)5.56 mm

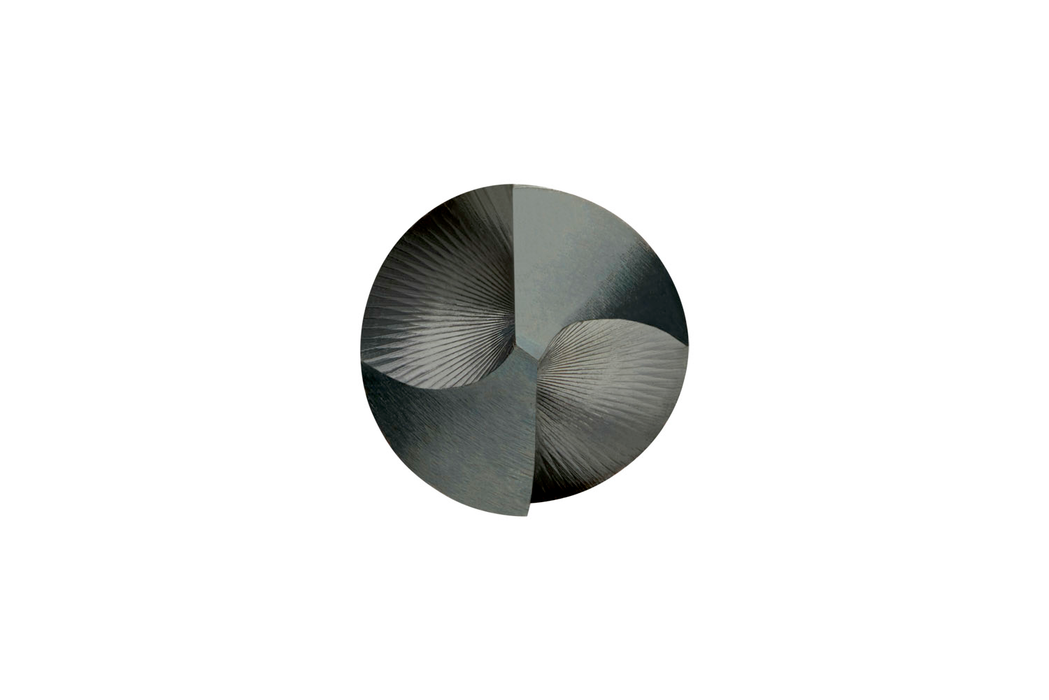

Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number47189790
EAN7320760707968
File Type Download
A1237/32S — 3D Model STP Download
A1237/32S — Line Drawing PDF Download
