A1193.3
A1193.3
A1193.3
A1193.3

A1193.3

SKU DOR7189827
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.71 CAD - $3.71 CAD
$3.71 CAD
$3.71 CAD - $3.71 CAD
$3.71 CAD

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1193.3
GradeSteam Tempered
Product Number7189827
Product FamilyA119

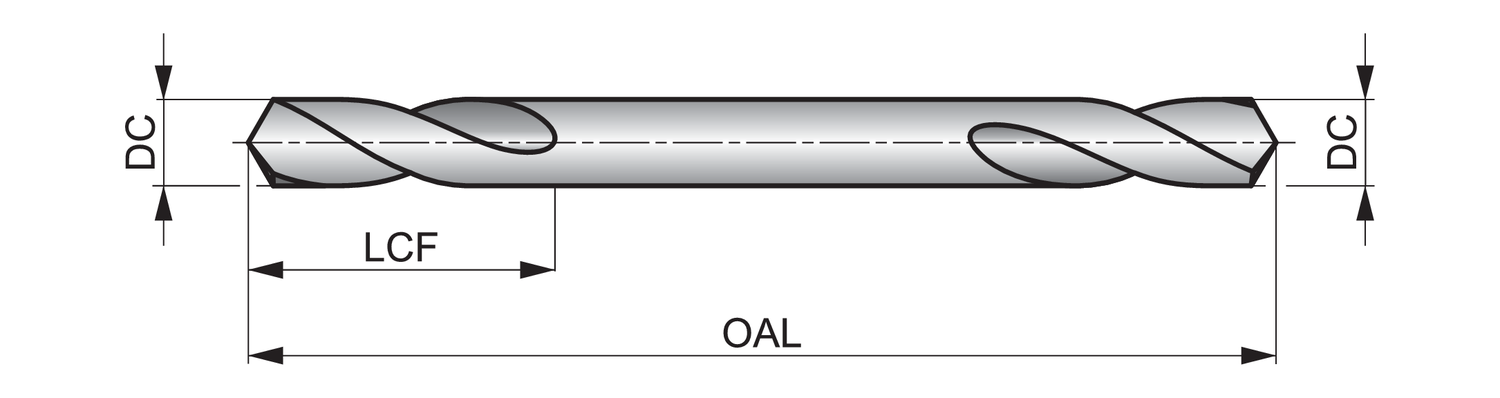

Dimensions
Cutting Diameter — in (DC)0.1299"
Cutting Diameter — mm (DC)3.3 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.4331"
Flute Length — mm (LCF)11.0 mm
Length × Diameter Ratio1.25
Connection Dia. — in (DCON)0.1299"
Connection Dia. — mm (DCON)3.3 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number47189827
EAN7320760708071
File Type Download
A1193.3 — Line Drawing PDF Download
