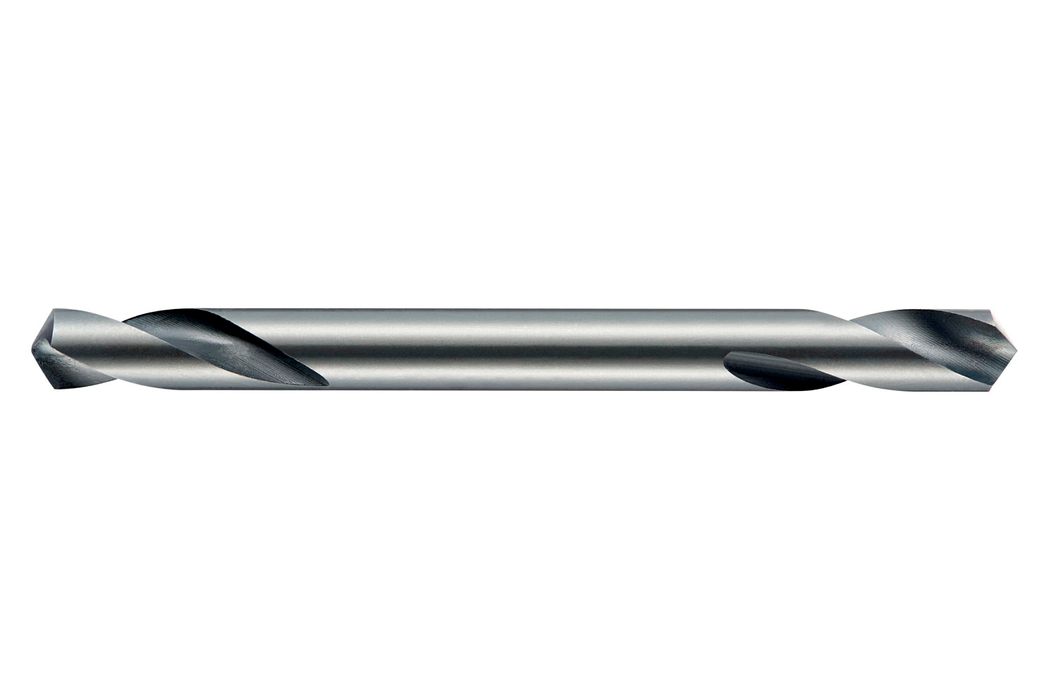

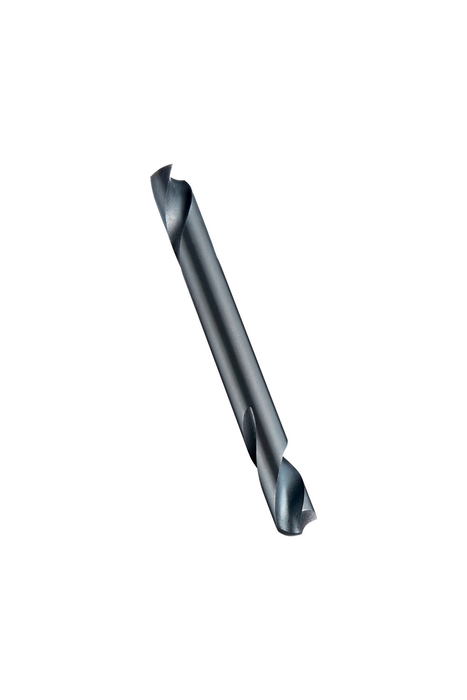

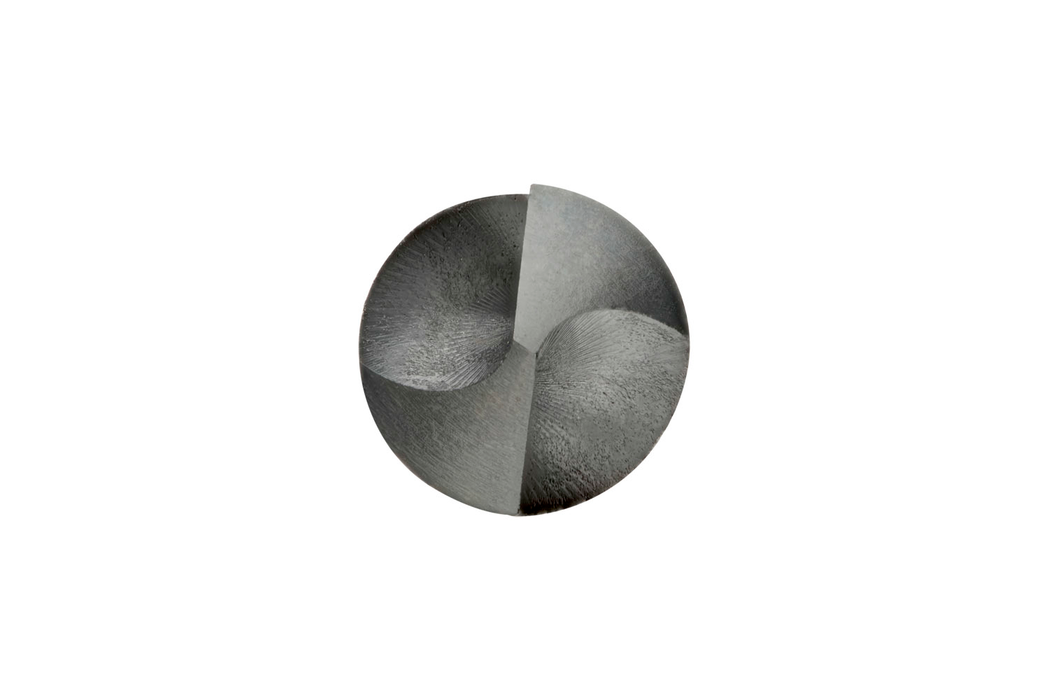

A1194.1

A1194.1

SKU DOR7189829

by Dormer Pramet

Primary Use: Possible Use:

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here

$4.73 - $4.73

$4.73

$4.73 - $4.73

$4.73

For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

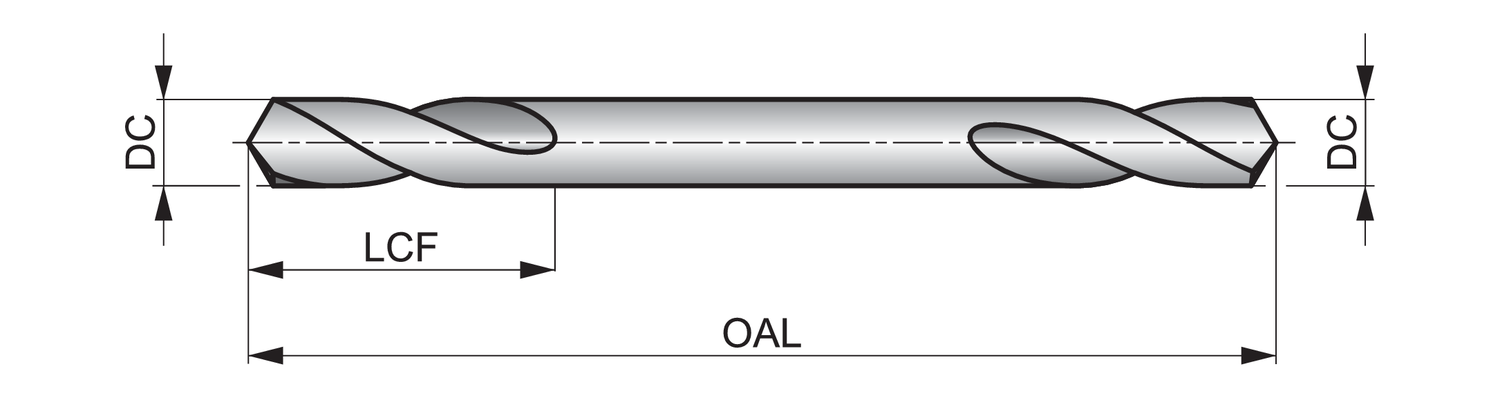

Material: HSS

Cutting Diameter - in (DC): 0.1614

Cutting Diameter - mm (DC): 4.1

Drill Point Angle - deg: 120

Flute Length: 0.5512

Lenxth x Diameter Ratio: 1.25

Overall Length (OAL): 2.1654

Connetion Diameter: 0.1614

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 47189829

EAN: 7320760708095

MFG Part Number: 7189829
