A2662.5X6.3

SKU DOR7191766
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $23.53 CAD - Original price $23.53 CAD
Original price
$23.53 CAD
$23.53 CAD - $23.53 CAD
Current price $23.53 CAD

Sold in packs of: 1

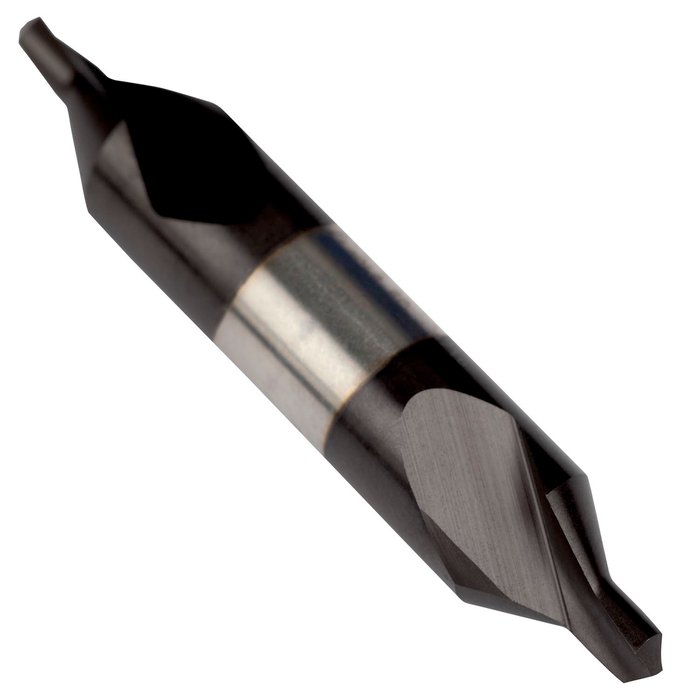

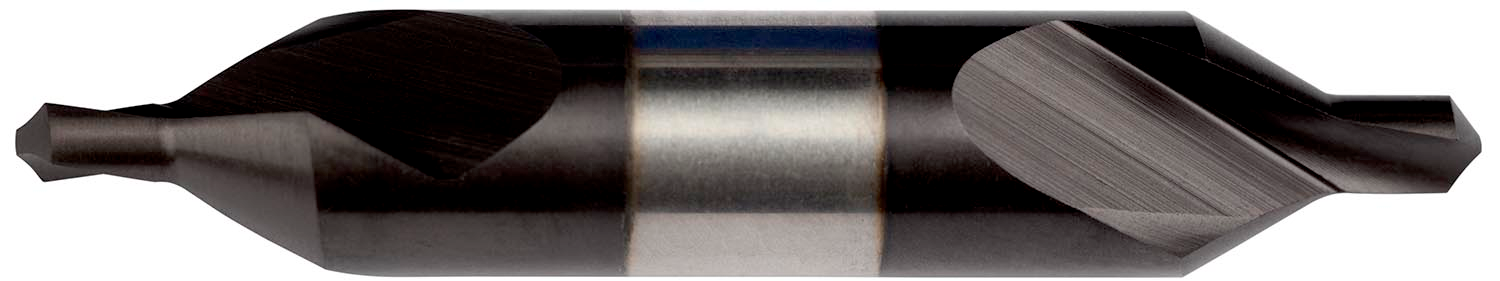

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 2.50mm drill diameter, a body diameter of 6.30mm and an overall length of 45mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and TiAlN coating for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2662.5X6.3
GradeTiAlN
Product Number7191766
Product FamilyA266

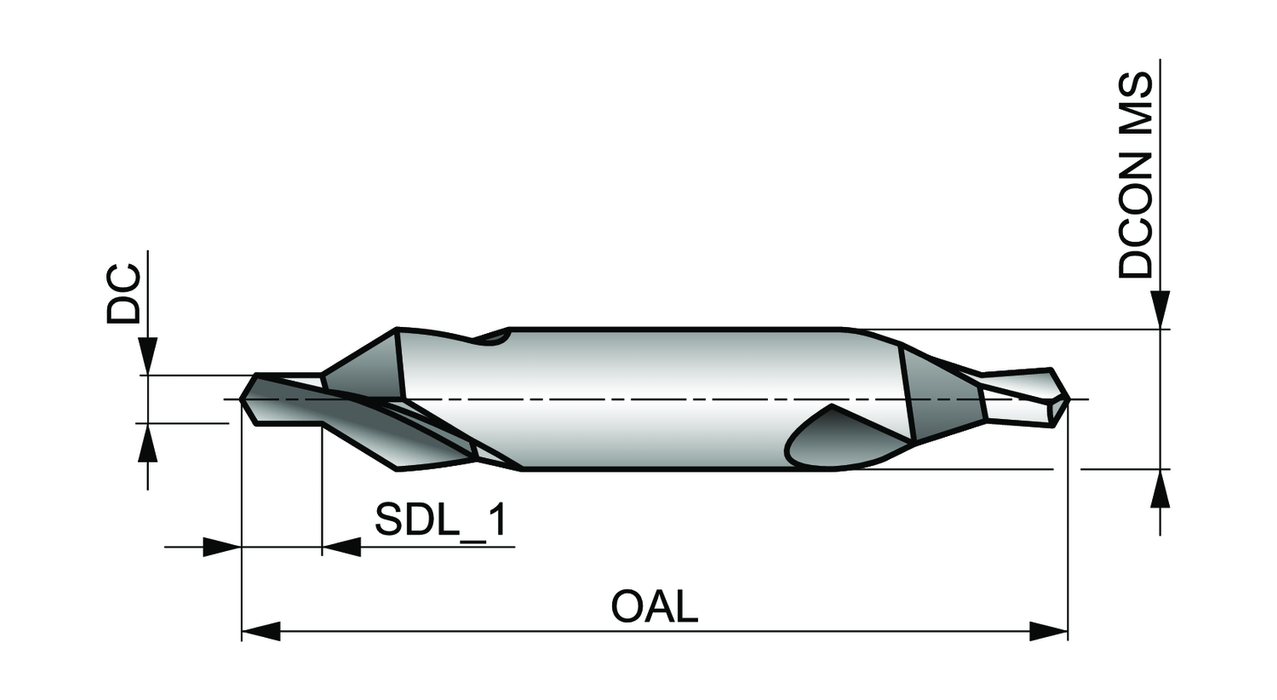

Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333A
Reference Numbers
EDP Number47191766
EAN7320760708286
File Type Download
A2662.5X6.3 — Line Drawing PDF Download
