A2421.0X4.0

A2421.0X4.0

SKU DOR7191815
by Dormer Pramet
Primary Use: Possible Use:

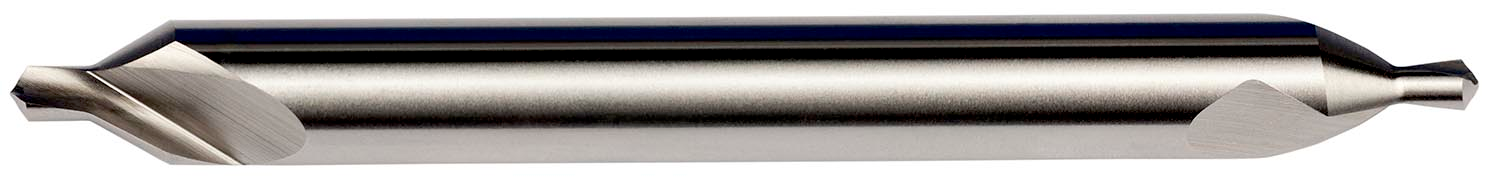

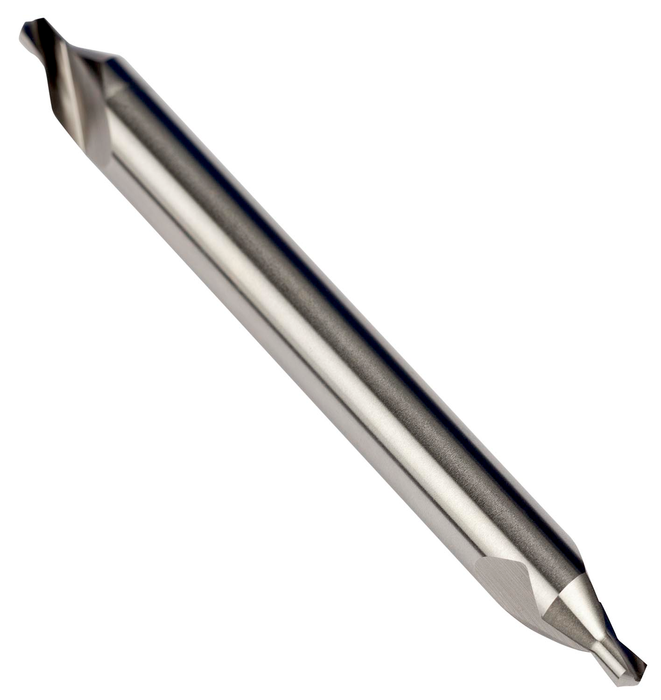

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.00mm drill diameter, a body diameter of 4.00mm and an overall length of 100mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$18.70 - $18.70
$18.70
$18.70 - $18.70
$18.70
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

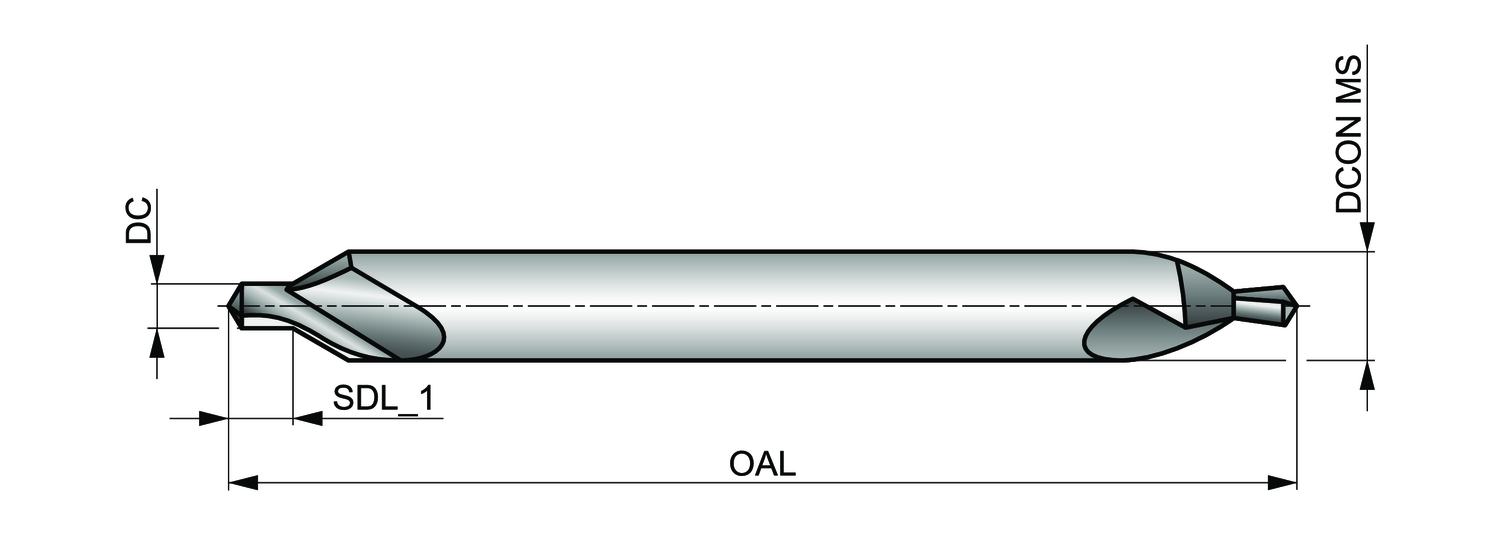

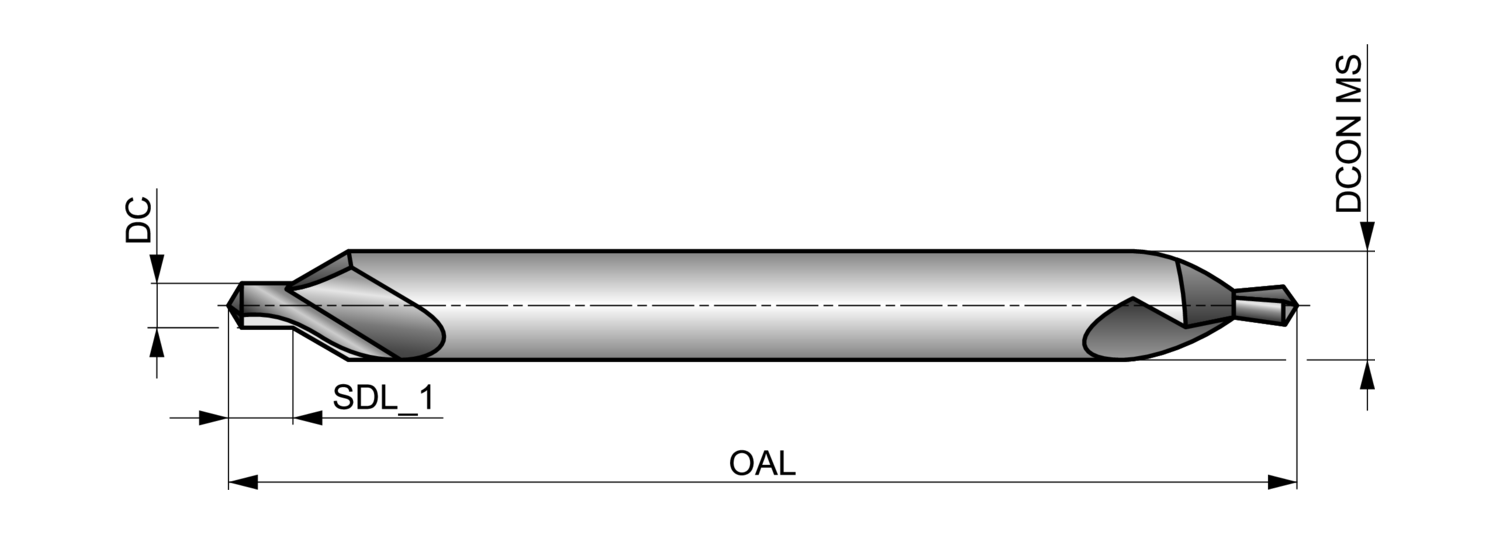

Cutting Diameter - in (DC): 0.0394

Cutting Diameter - mm (DC): 1.0

Drill Point Angle - deg: 118

Lenxth x Diameter Ratio: 1

Overall Length (OAL): 3.937

Connetion Diameter: 0.1575

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 47191815

EAN: 7320760708576

MFG Part Number: 7191815
