A2421.5X5.0
Availability in Distribution Centers:
Sold in packs of: 1
Sold in packs of: 1

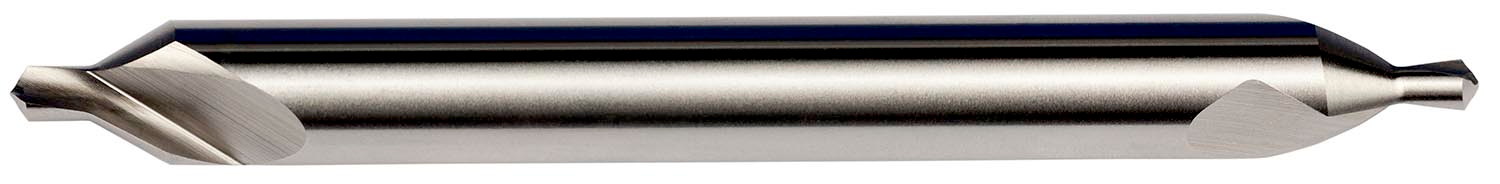

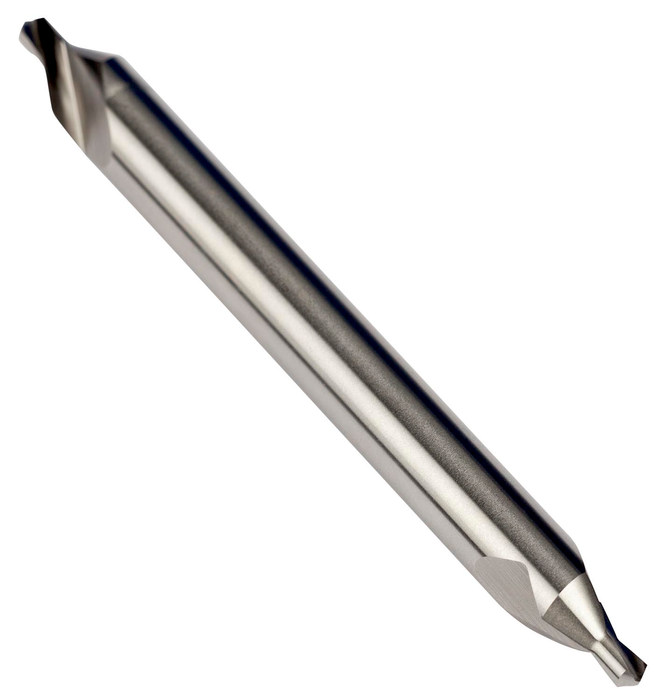

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.50mm drill diameter, a body diameter of 5.00mm and an overall length of 100mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
For more information about this product, click here
| Identification | |
| Ordering Code (ANSI/ISO) | A2421.5X5.0 |
| Grade | Bright |
| Product Number | 7191816 |
| Product Family | A242 |
| Dimensions | |
| Cutting Diameter — in (DC) | 0.0591" |
| Cutting Diameter — mm (DC) | 1.5 mm |
| Overall Length — in (OAL) | 3.937" |
| Overall Length — mm (OAL) | 100.0 mm |
| Length × Diameter Ratio | 1 |
| Connection Dia. — in (DCON) | 0.1969" |
| Connection Dia. — mm (DCON) | 5.0 mm |
| Drill Point Angle (SIG) | 118° |
| Tool Information | |
| Shank | Cylindrical shank |
| Direction of Tool | Right |
| Standard | Work Norm |
| Reference Numbers | |
| EDP Number | 47191816 |
| EAN | 7320760708583 |
| File | Type | Download |
|---|---|---|

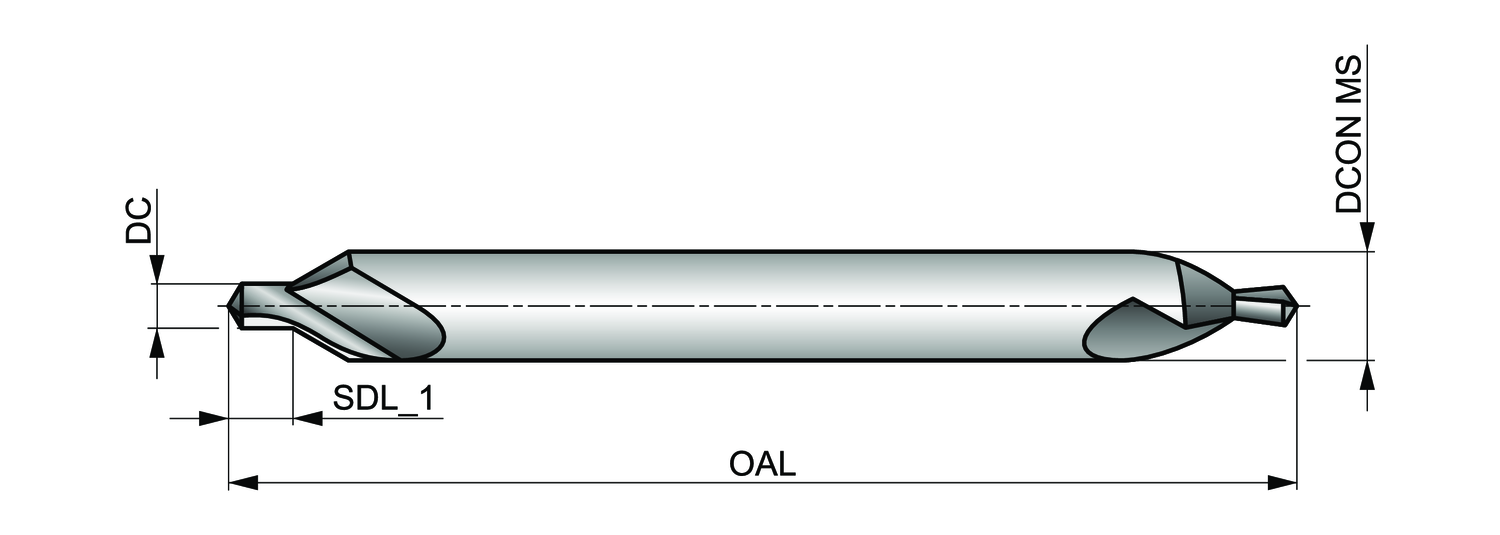

| A2421.5X5.0 — Line Drawing | Download |
