A2423.0X8.0

SKU DOR7191819
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $28.96 CAD - Original price $28.96 CAD
Original price
$28.96 CAD
$28.96 CAD - $28.96 CAD
Current price $28.96 CAD

Sold in packs of: 1

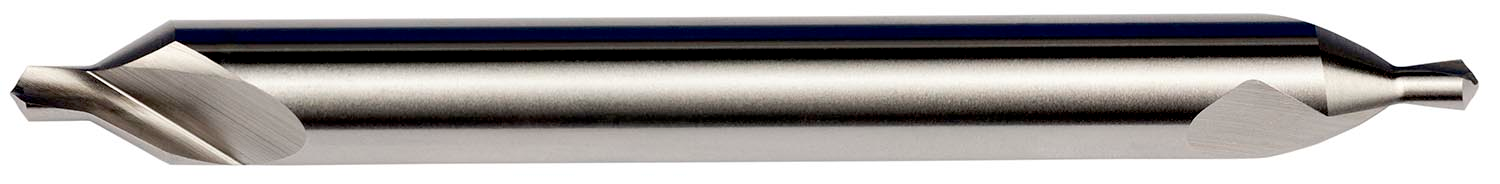

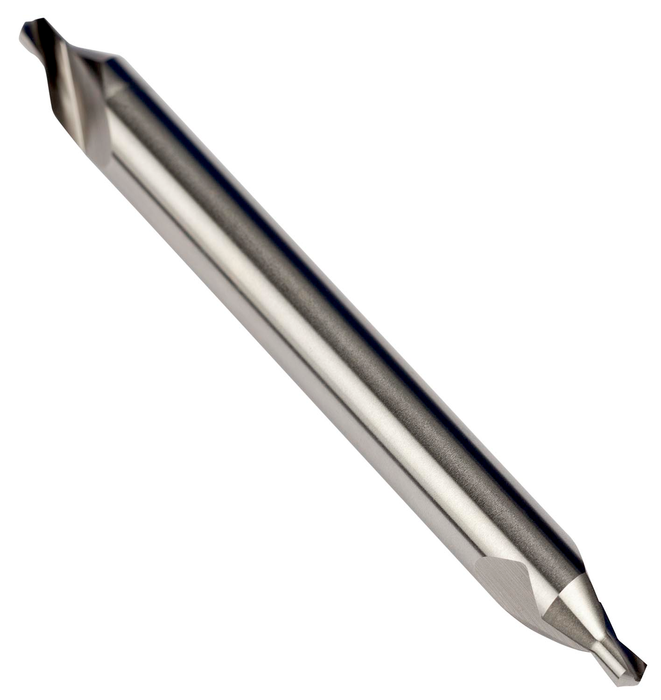

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 3.00mm drill diameter, a body diameter of 8.00mm and an overall length of 100mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2423.0X8.0
GradeBright
Product Number7191819
Product FamilyA242

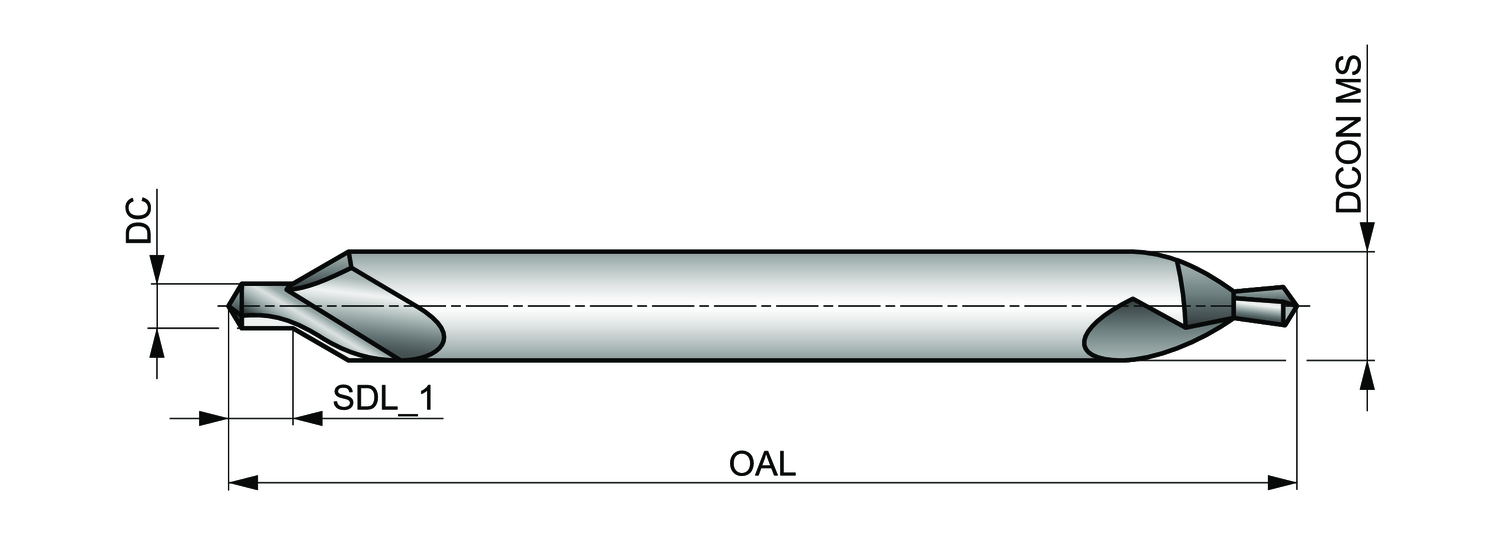

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number47191819
EAN7320760708613
File Type Download
A2423.0X8.0 — Line Drawing PDF Download
