R2004.0X10.0
R2004.0X10.0
R2004.0X10.0

R2004.0X10.0

SKU DOR7191830
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$215.29 CAD - $215.29 CAD
$215.29 CAD
$215.29 CAD - $215.29 CAD
$215.29 CAD

Sold in packs of: 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R2004.0X10.0
GradeBright
Product Number7191830
Product FamilyR200
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333A
Reference Numbers
EDP Number47191830
EAN7320760708729
File Type Download

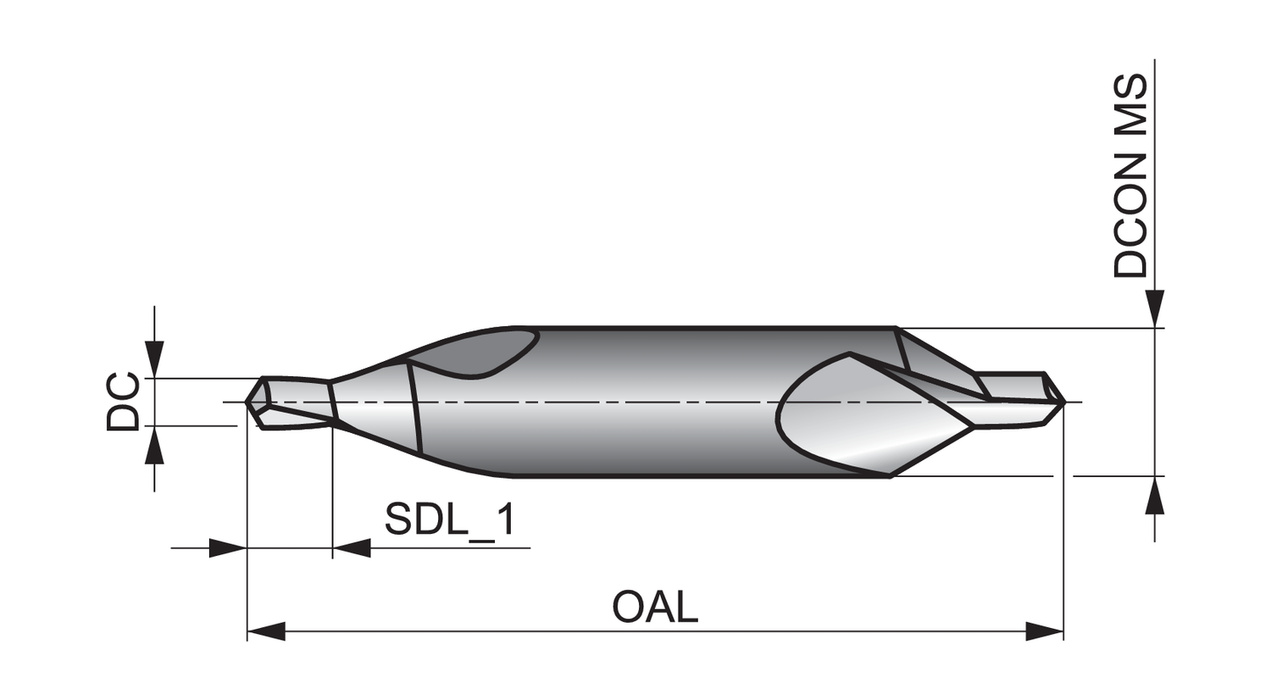

R2004.0X10.0 — Line Drawing PDF Download
