R2005.0X12.5
R2005.0X12.5
R2005.0X12.5

R2005.0X12.5

SKU DOR7191831
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$274.21 CAD - $274.21 CAD
$274.21 CAD
$274.21 CAD - $274.21 CAD
$274.21 CAD

Sold in packs of: 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R2005.0X12.5
GradeBright
Product Number7191831
Product FamilyR200
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333A
Reference Numbers
EDP Number47191831
EAN7320760708736
File Type Download

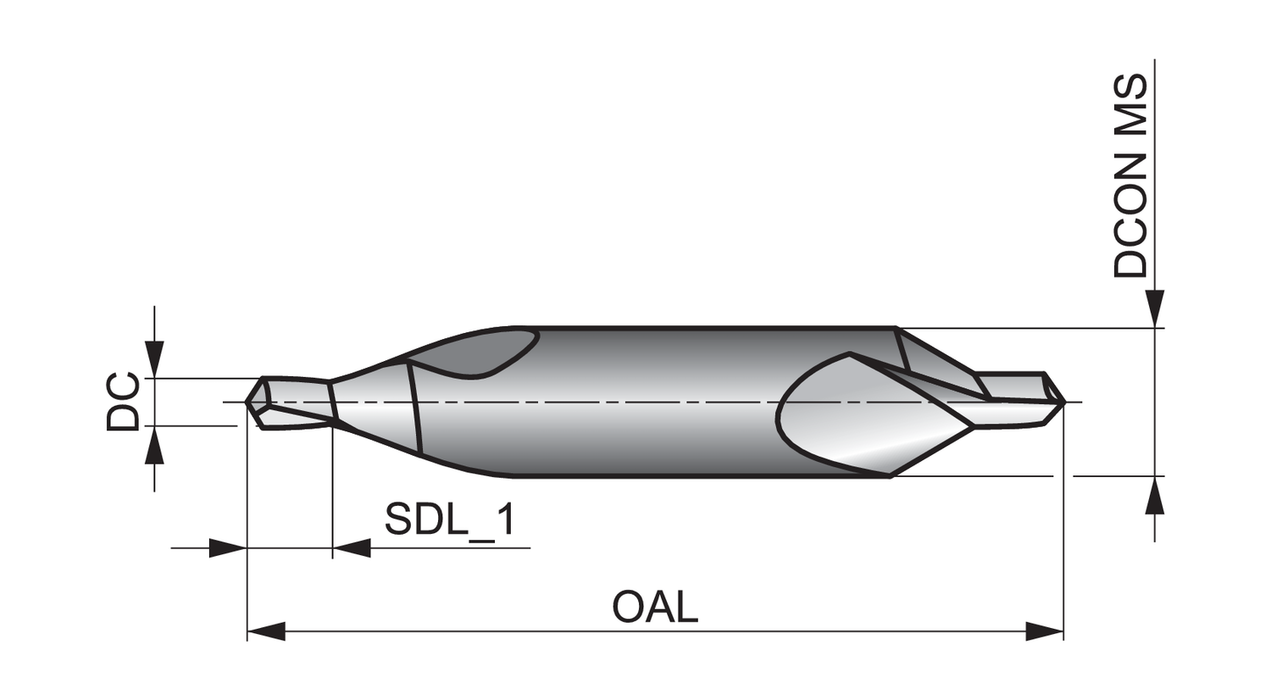

R2005.0X12.5 — Line Drawing PDF Download
