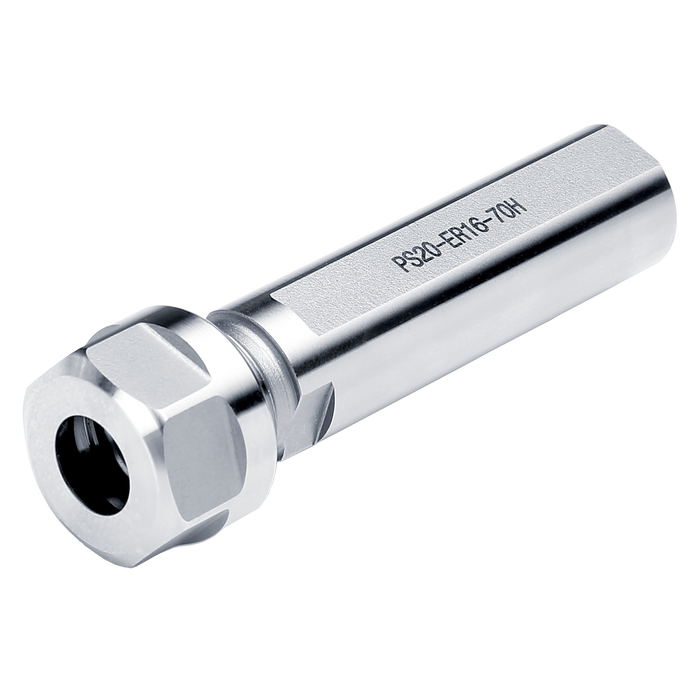

ACF.20-CC.ER16.70.HX
Availability in Distribution Centers:
Sold in packs of: 1
Sold in packs of: 1
For more information about this product, click here
| Identification | |
| Ordering Code (ANSI/ISO) | ACF.20-CC.ER16.70.HX |
| Product Number | 7228848 |
| Product Family | ACF-CC-ER-HX |
| Dimensions | |
| Overall Length — in (OAL) | 3.7795" |
| Overall Length — mm (OAL) | 96.0 mm |
| Connection Dia. — in (DCON) | 0.7874" |
| Connection Dia. — mm (DCON) | 20.0 mm |
| Tool Information | |
| Reference Numbers | |
| EDP Number | 7228848 |
| EAN | 3603603207097 |
| File | Type | Download |
|---|---|---|
| ACF.20-CC.ER16.70.HX — 3D Model | STP | Download |
| ACF.20-CC.ER16.70.HX — 2D Model | DXF | Download |
