332HDN28

332HDN28

SKU PRE7233713
by Precision Twist Drill
Primary Use: Possible Use:

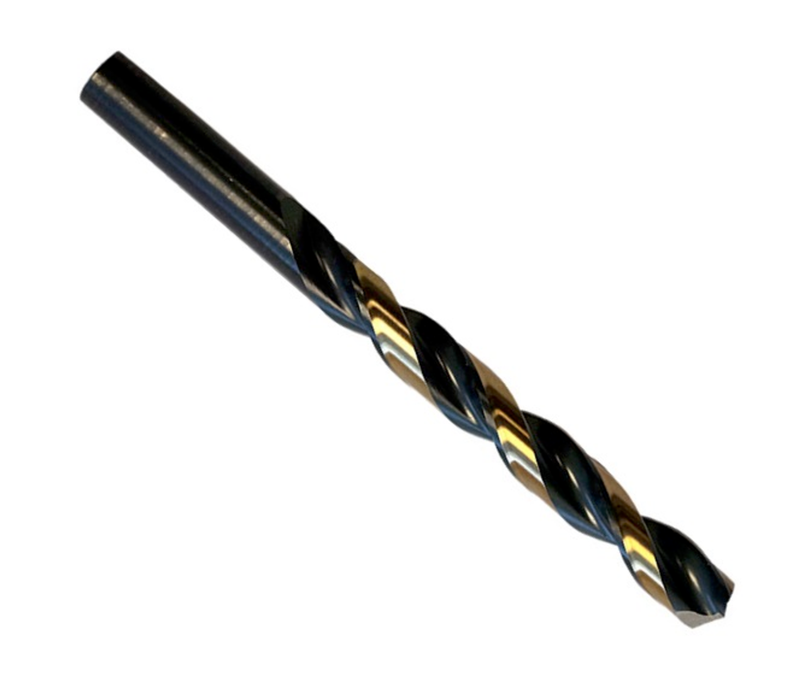

Jobber length drill with straight shank, diameter 0.1405" (N28) with an overall length of 2.7/8" and flute length of 1.3/4" according to ANSI standard with 135° split point, HSS with steam tempered + bronze finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$1.73 - $1.73
$1.73
$1.73 - $1.73
$1.73
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1405

Cutting Diameter - mm (DC): 3.57

Drill Point Angle - deg: 135

Flute Length: 1.75

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.875

Connetion Diameter: 0.1405

Tool Direction: Right

Shank: Cylindrical shank

Grade: ST/Bronze

EDP: 47233713

EAN: 7320760717165

MFG Part Number: 7233713
