333HD5/32

333HD5/32

SKU PRE7233754
by Precision Twist Drill
Primary Use:

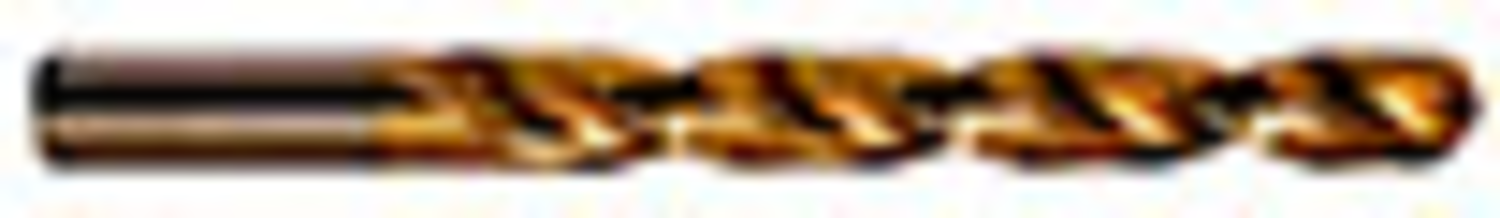

Jobber length drill with straight shank, diameter 0.1563" (5/32) with an overall length of 3.1/8" and flute length of 2" according to ANSI standard with 135° split point, HSS with TiN coating for 4xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$3.20 - $3.20
$3.20
$3.20 - $3.20
$3.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1563

Cutting Diameter - mm (DC): 3.97

Drill Point Angle - deg: 135

Flute Length: 2.0

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.125

Connetion Diameter: 0.1563

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/32

Grade: TiN

EDP: 47233754

EAN: 7320760717578

MFG Part Number: 7233754
