TCMT 32.51-RM3:T9335

TCMT 32.51-RM3:T9335

SKU DOR7248734
by Dormer Pramet
Primary Use: Possible Use:

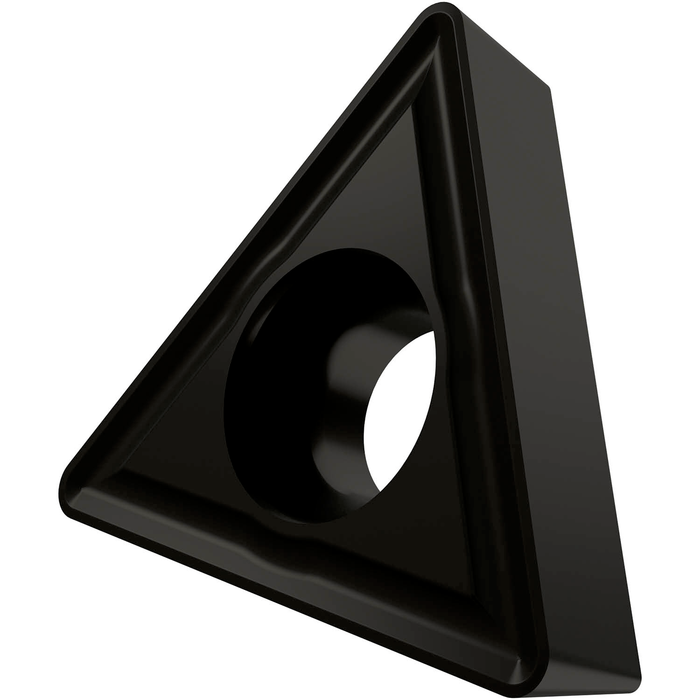

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM3, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.19 - $14.19
$14.19
$14.19 - $14.19
$14.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

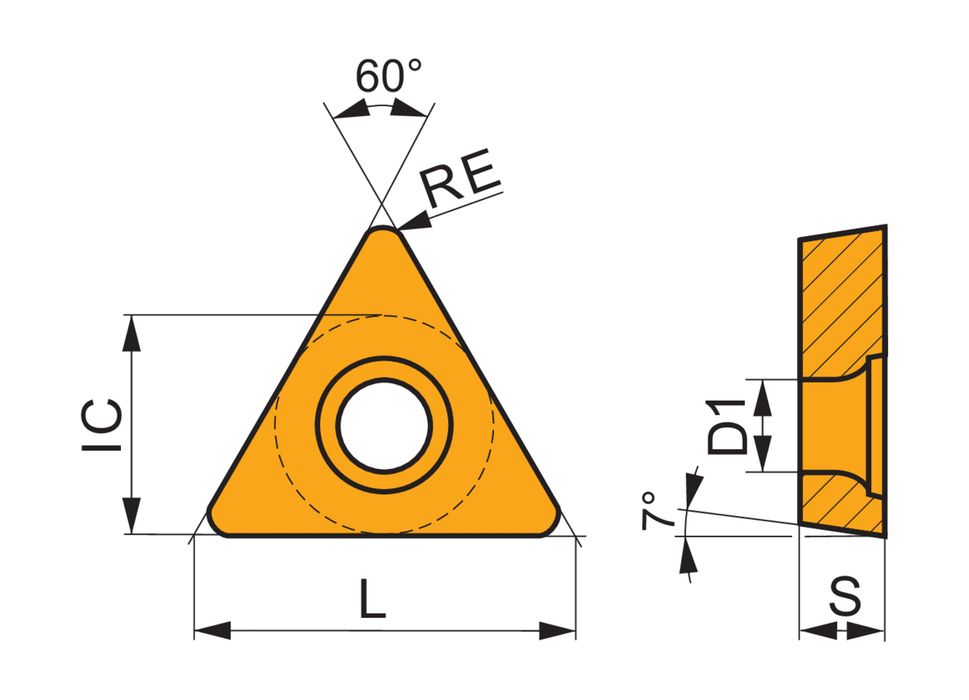

Max. Depth of Cut: 0.118

Insert Design: TCMT

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: RM3

Grade: T9335

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7248734

EAN: 3603603221383

MFG Part Number: 7248734
