WNGF 201380-MM-S01:T6310

WNGF 201380-MM-S01:T6310

SKU DOR7317943
by Dormer Pramet
Primary Use: Possible Use:

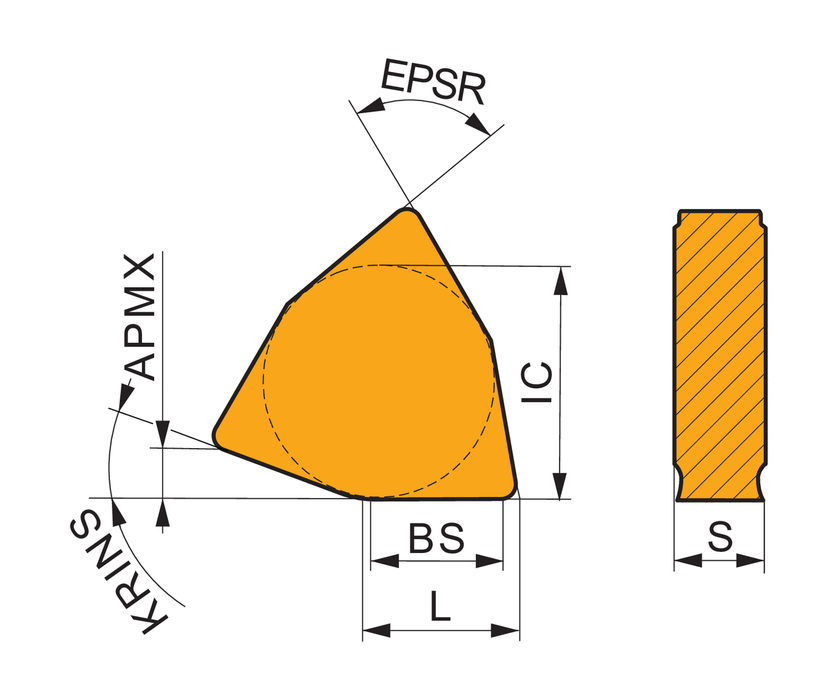

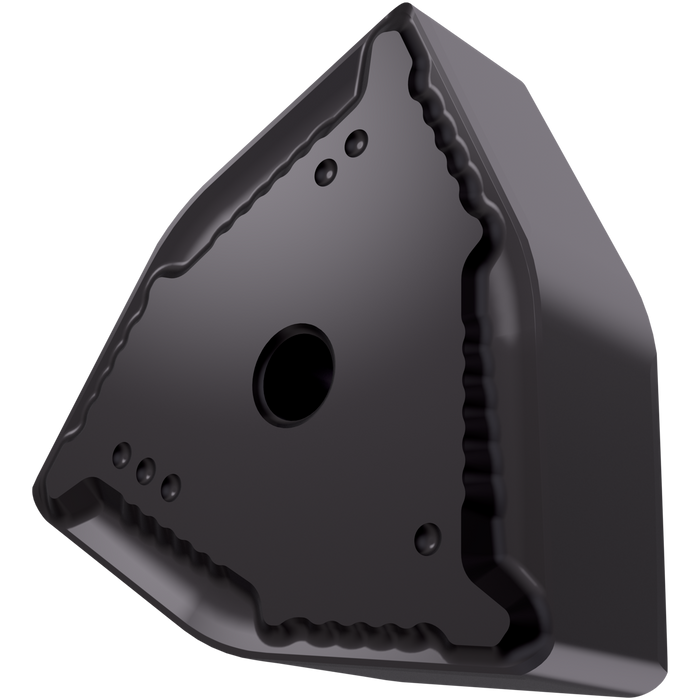

Double-sided negative barpeeling insert, 80° trigon with inscribed circle diameter of 31.75mm, 13mm thick for 8mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker MM with S01 cutting edge preperation, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range M01-M15, for high strength stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 3

For more information about this product, click here
$133.57 - $133.57
$133.57
$133.57 - $133.57
$133.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.315

Insert Design: WNGF

Insert Shape Code: W - trigon

Insert Thickness: 0.512

Inscribed Circle Diameter: 1.25

Chip Breaker: MM-S01

Grade: T6310

EDP: 7317943

EAN: 3603603276246

MFG Part Number: 7317943
