R71316.8

R71316.8

SKU DOR7341682
by Dormer Pramet
Primary Use:

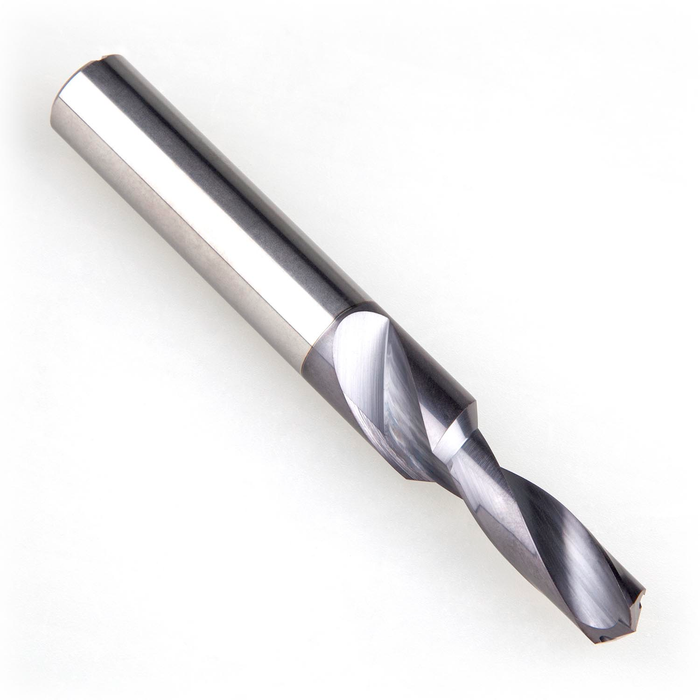

Step drill with 90° included step angle, DIN 6535HA parallel shank and a drilling-pilot diameter of 6.80mm with a length of 21.00mm, a countersink diameter of maximum 10.00mm and an overall length of 89mm, according to DORMER standard to produce a thread tapping drill hole with chamfer for M8 thread, solid carbide and bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic, martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$403.07 - $403.07
$403.07
$403.07 - $403.07
$403.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

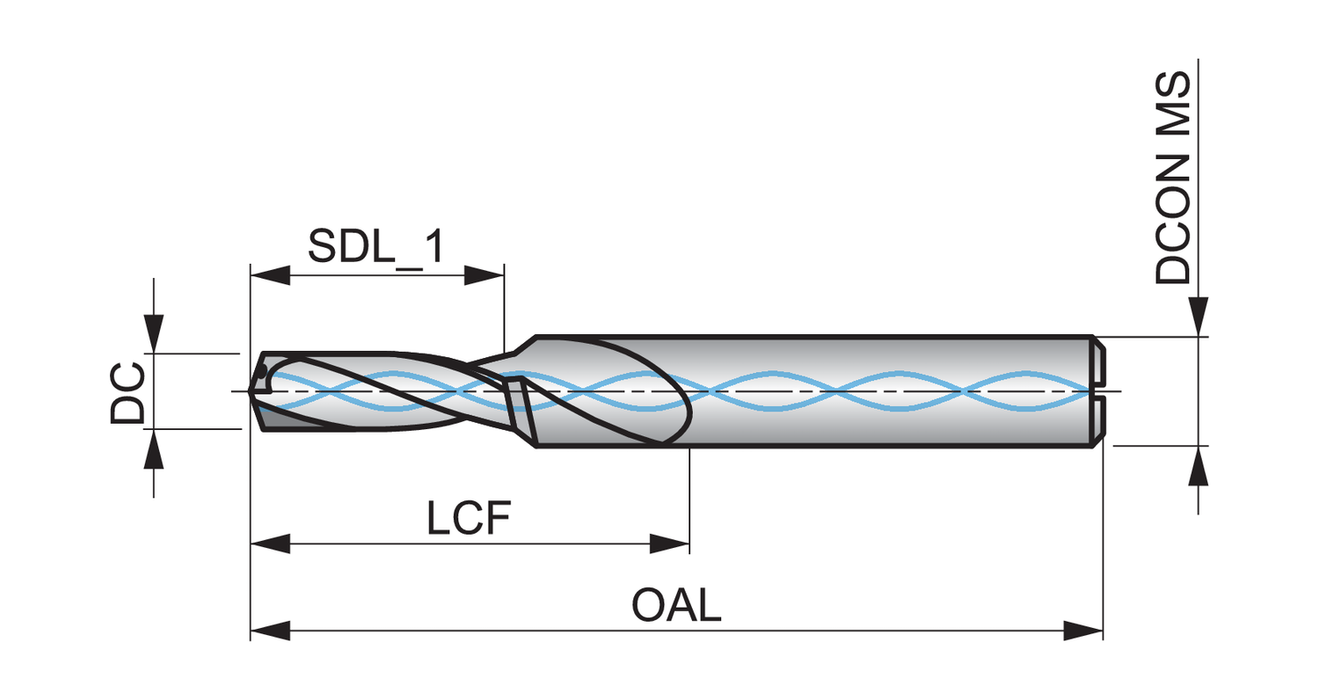

Material: HM

Cutting Diameter - in (DC): 0.2677

Cutting Diameter - mm (DC): 6.8

Drill Point Angle - deg: 140

Flute Length: 1.3386

Through Coolant: 1

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 3.5039

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: M8

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 7341682

EAN: 7320760746134

MFG Part Number: 7341682
