R713110.2

R713110.2

SKU DOR7341684
by Dormer Pramet
Primary Use:

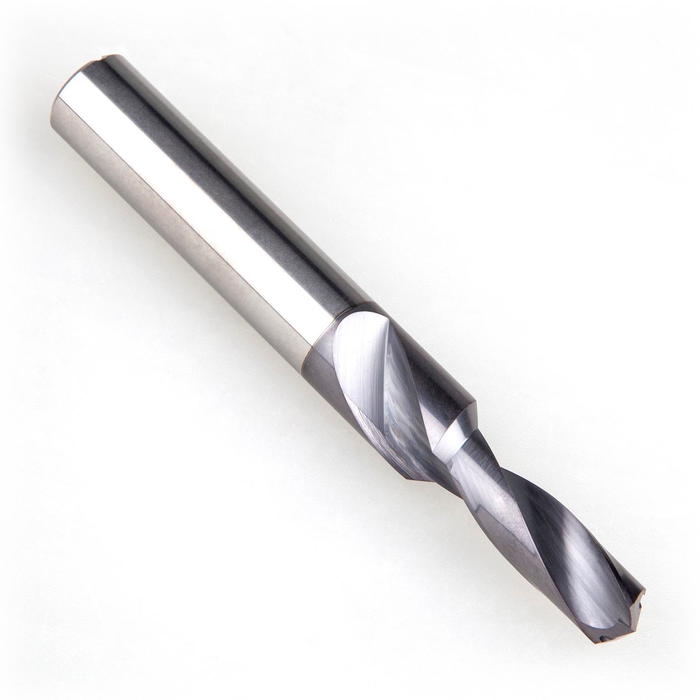

Step drill with 90° included step angle, DIN 6535HA parallel shank and a drilling-pilot diameter of 10.20mm with a length of 30.00mm, a countersink diameter of maximum 14.00mm and an overall length of 107mm, according to DORMER standard to produce a thread tapping drill hole with chamfer for M12 thread, solid carbide and bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic, martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$782.57 - $782.57
$782.57
$782.57 - $782.57
$782.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

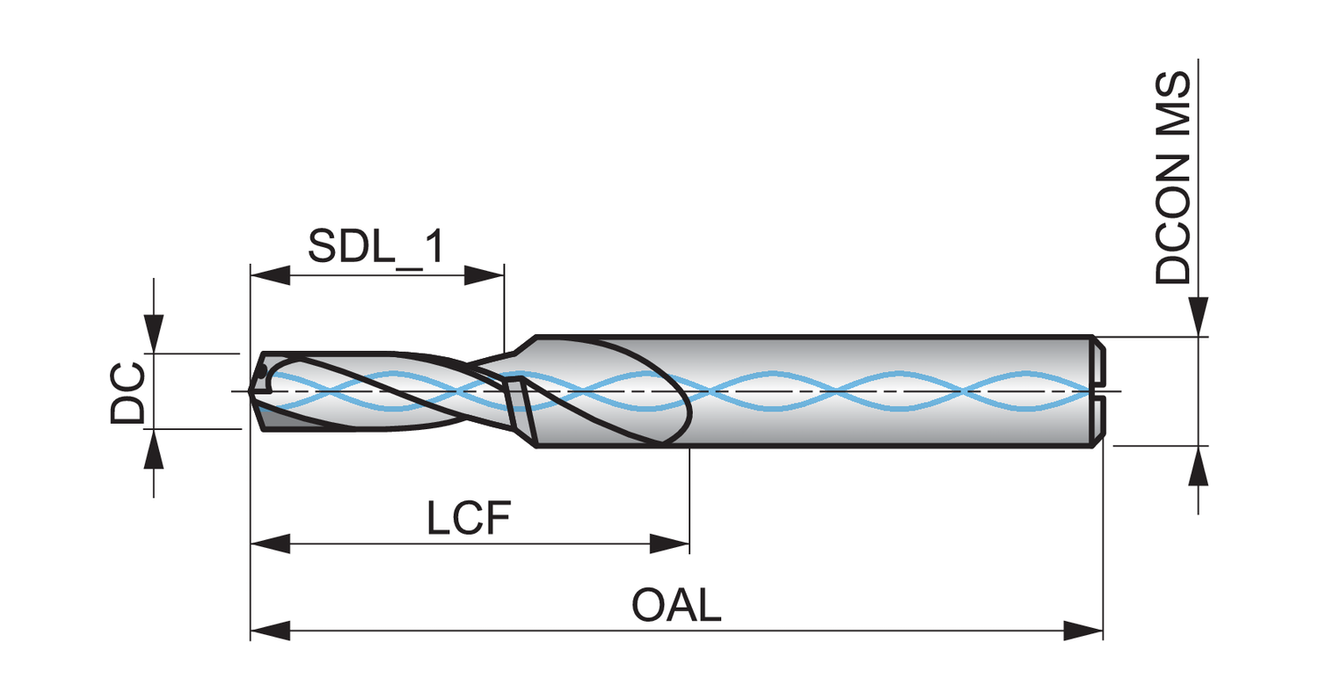

Cutting Diameter - in (DC): 0.4016

Cutting Diameter - mm (DC): 10.2

Drill Point Angle - deg: 140

Flute Length: 2.1654

Through Coolant: 1

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 4.2126

Connetion Diameter: 0.5512

Tool Direction: Right

Diameter Size: M12

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 7341684

EAN: 7320760746158

MFG Part Number: 7341684
