SOMT 050204SR-M:M6330

SOMT 050204SR-M:M6330

SKU DOR7343037
by Dormer Pramet
Primary Use: Possible Use:

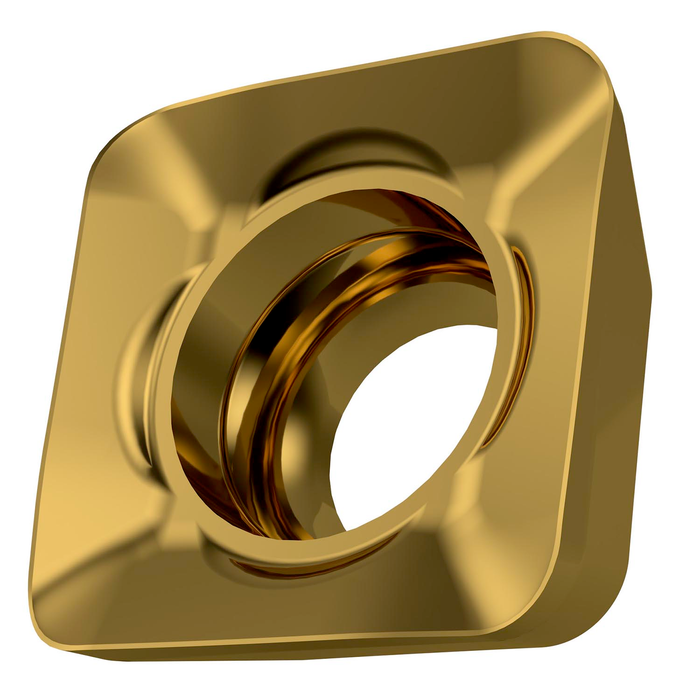

Single-sided milling insert SOMT 0502 with chip-breakers, square for a maximum depth of cut of .1772", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with shoulder face mills SSO05O

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.23 - $17.23
$17.23
$17.23 - $17.23
$17.23
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

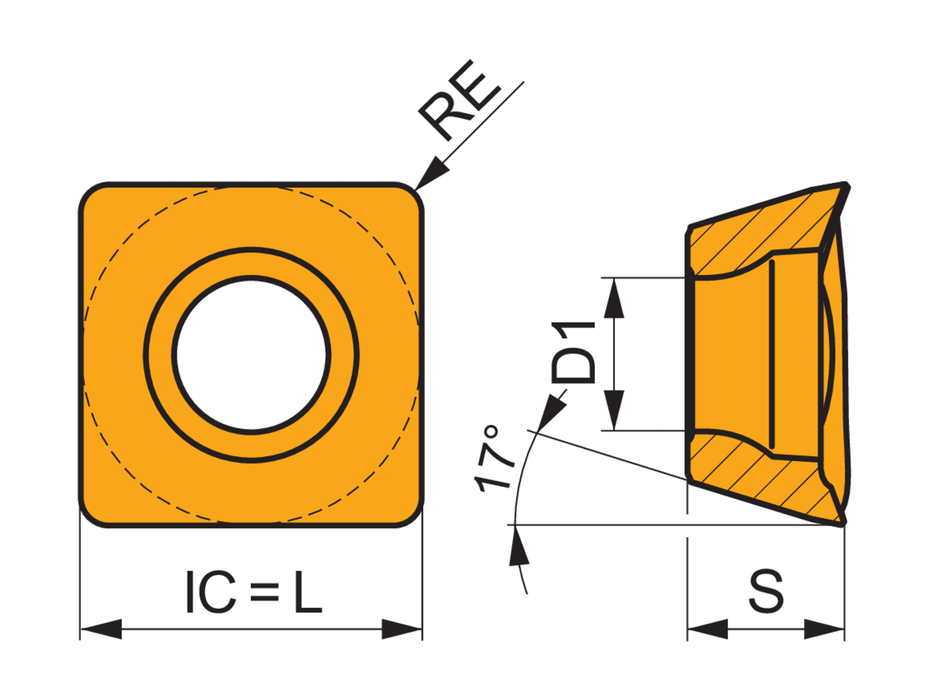

Max. Depth of Cut: 0.177

Insert Design: SOMT

Insert Shape Code: S - square

Insert Thickness: 0.104

Inscribed Circle Diameter: 0.219

Chip Breaker: M

Grade: M6330

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7343037

EAN: 3603603288638

MFG Part Number: 7343037
