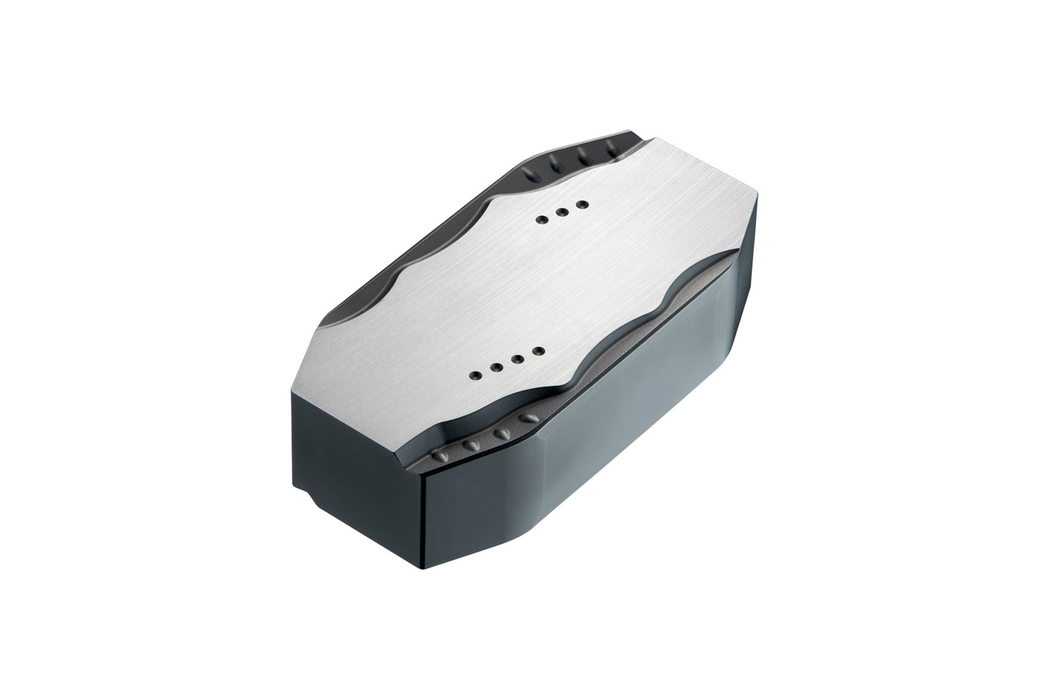

LNGF 401035-PM-S01:T9315
SKU DOR7347220
Primary Use:
Double-sided negative barpeeling insert, rectangular with a length of 40mm, 9.6mm thick for 3.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S01 cutting edge preperation, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for high strength steels
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$78.57
-
Original price
$78.57
Original price
$78.57
$78.57
-
$78.57
Current price
$78.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Max. Depth of Cut: 0.138
Insert Design: LNGF 40
Insert Shape Code: L - rectangular
Insert Thickness: 0.394
Chip Breaker: PM
Grade: T9315
EDP: 7347220
EAN: 3603603295124
MFG Part Number: 7347220
