TNGJ 220720-PF-S02:T7325

TNGJ 220720-PF-S02:T7325

SKU DOR7347230
by Dormer Pramet
Possible Use:

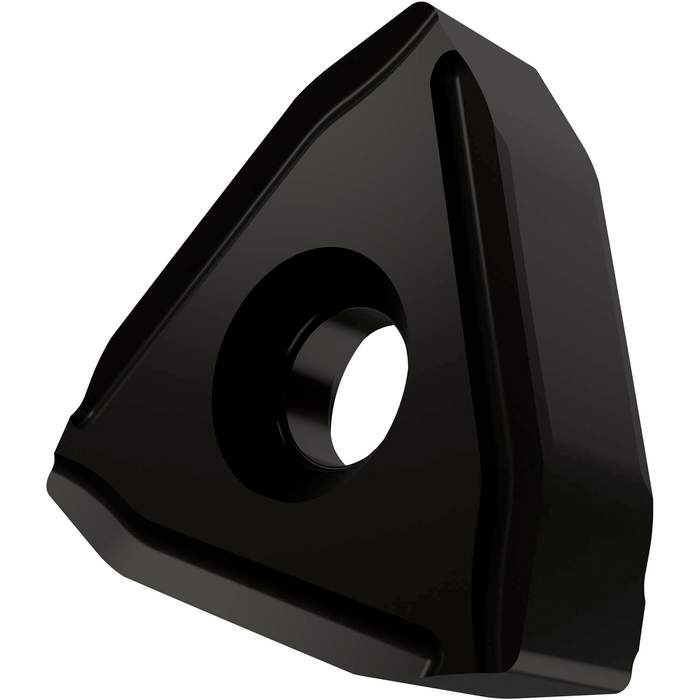

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 21.96mm, 7.94mm thick for 2mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S02 cutting edge preperation, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for medium strength stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$64.43 - $64.43
$64.43
$64.43 - $64.43
$64.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

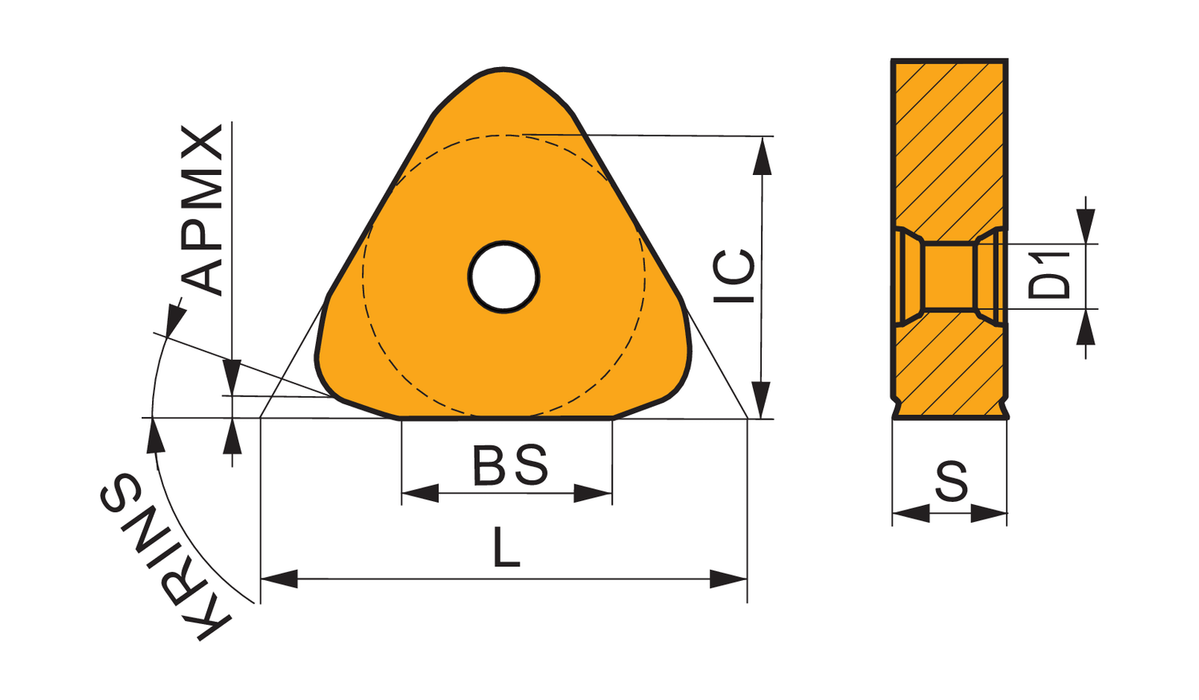

Max. Depth of Cut: 0.079

Insert Design: TNGJ

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.313

Inscribed Circle Diameter: 0.865

Chip Breaker: PF-S02

Grade: T7325

EDP: 7347230

EAN: 3603603295223

MFG Part Number: 7347230
