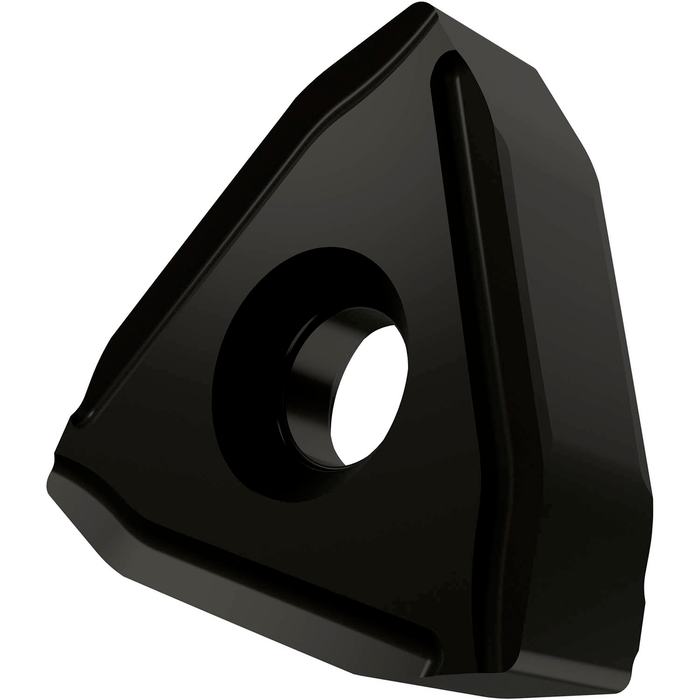

TNGJ 281025-PF-S02:T7325

TNGJ 281025-PF-S02:T7325

SKU DOR7347235
by Dormer Pramet
Possible Use:

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 10mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S02 cutting edge preperation, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for medium strength stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 3

For more information about this product, click here
$97.86 - $97.86
$97.86
$97.86 - $97.86
$97.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

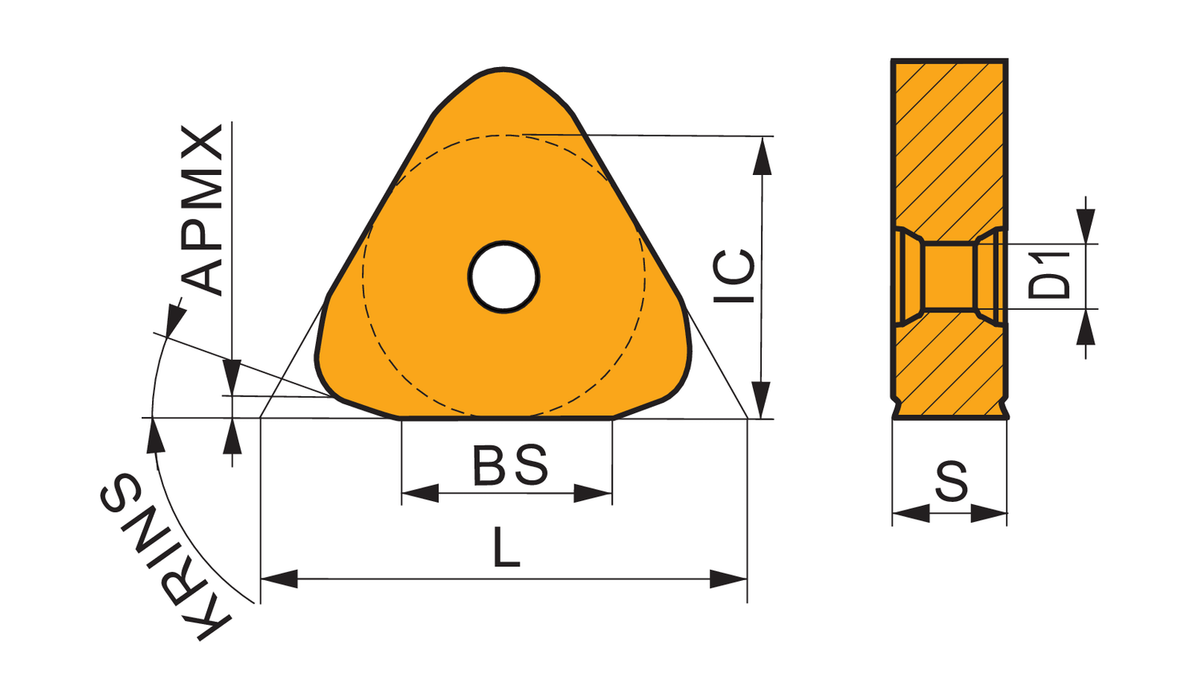

Max. Depth of Cut: 0.098

Insert Design: TNGJ

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.394

Inscribed Circle Diameter: 1.126

Chip Breaker: PF-S02

Grade: T7325

EDP: 7347235

EAN: 3603603295278

MFG Part Number: 7347235
