E8143/4

E8143/4

SKU DOR7350209
by Dormer Pramet
Primary Use:

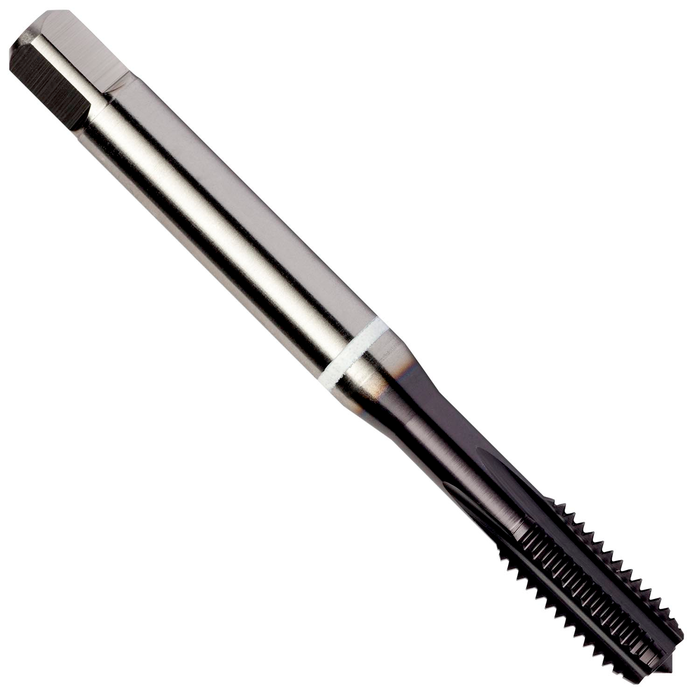

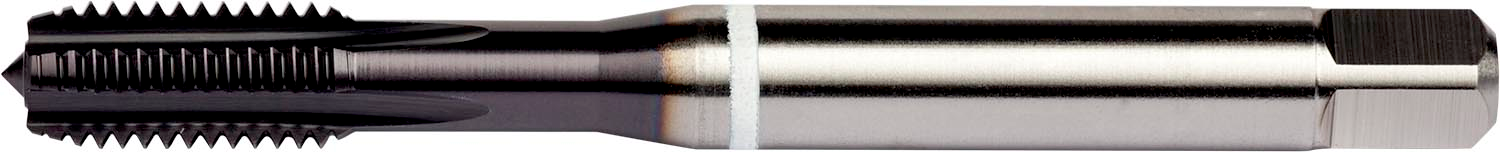

Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/4" with 10 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900" shank and 0.4390" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$71.96 - $71.96
$71.96
$71.96 - $71.96
$71.96
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 4.921

Connetion Diameter: 0.59

Tool Direction: Right

Diameter Size: 3/4

TPI: 10.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Grade: TiAlN/Top

EDP: 7350209

EAN: 7320760750636

MFG Part Number: 7350209
