E8147/8

E8147/8

SKU DOR7350220
by Dormer Pramet
Primary Use:

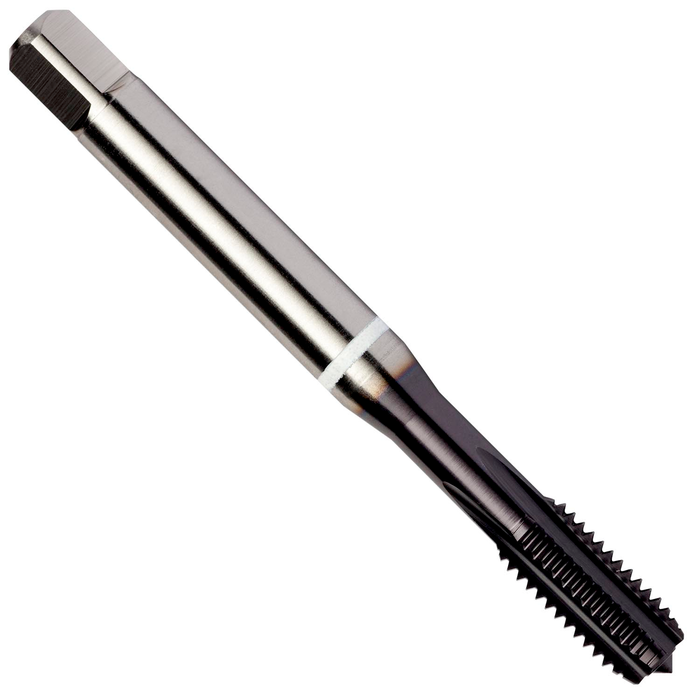

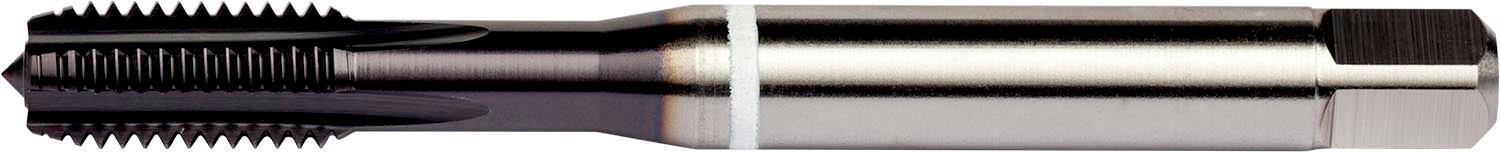

Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 7/8" with 9 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970" shank and 0.5200" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$104.29 - $104.29
$104.29
$104.29 - $104.29
$104.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

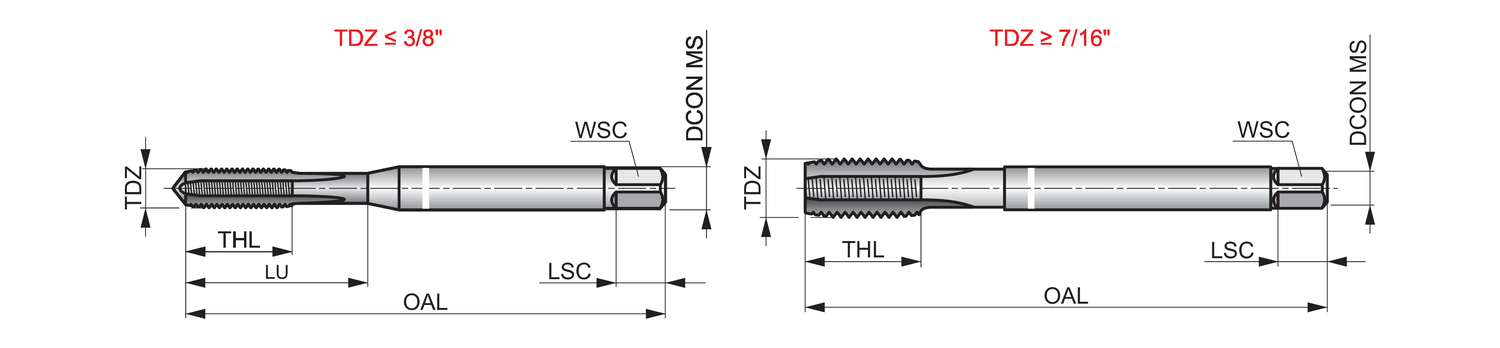

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 5.512

Connetion Diameter: 0.697

Tool Direction: Right

Diameter Size: 7/8

TPI: 9.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Grade: TiAlN/Top

EDP: 7350220

EAN: 7320760750643

MFG Part Number: 7350220
