E624M24

E624M24

SKU DOR7350543
by Dormer Pramet
Primary Use:

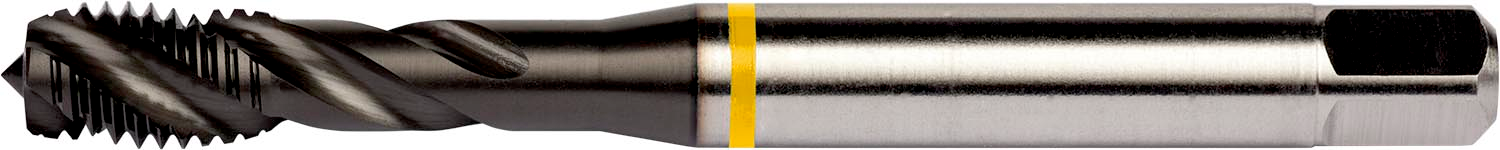

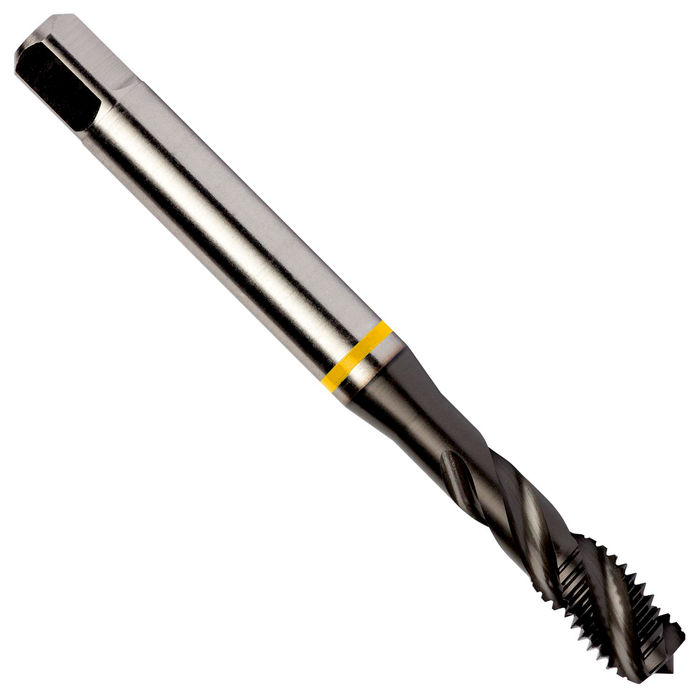

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit with D8 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.7600" shank and 0.5670" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$358.74 - $358.74
$358.74
$358.74 - $358.74
$358.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 6.2992

Connetion Diameter: 0.76

Tool Direction: Right

Diameter Size: 24

Pitch - mm: 3.0

Pitch - in: 0.1181

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: TiAlN/Top

EDP: 7350543

EAN: 7320760753873

MFG Part Number: 7350543
