R454C

R454C

SKU DOR7361225
by Dormer Pramet
Primary Use: Possible Use:

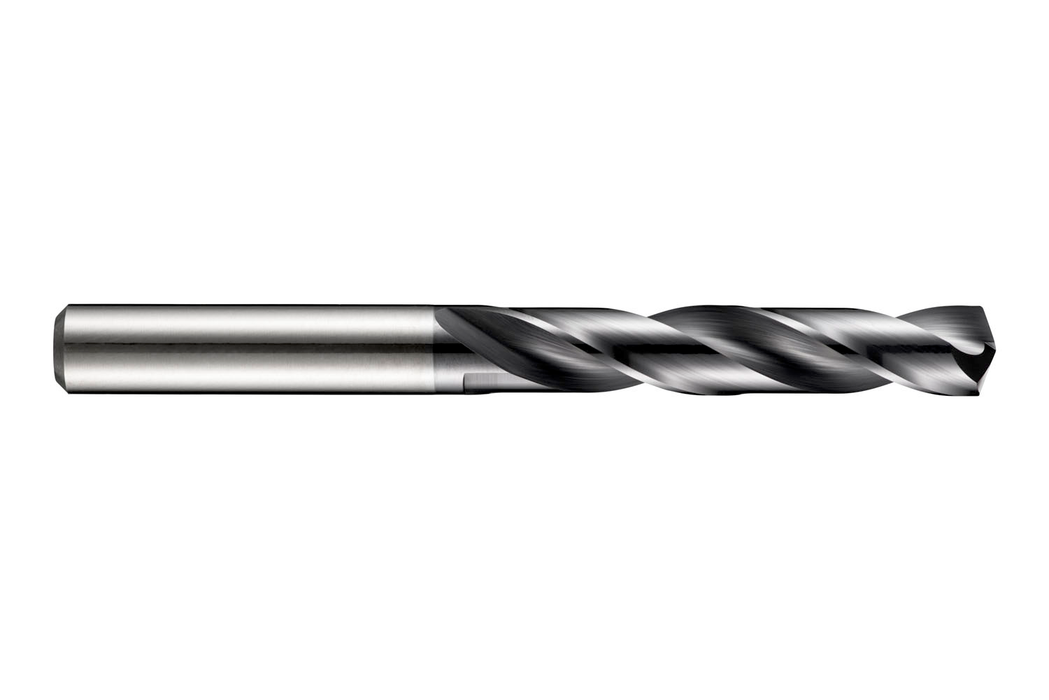

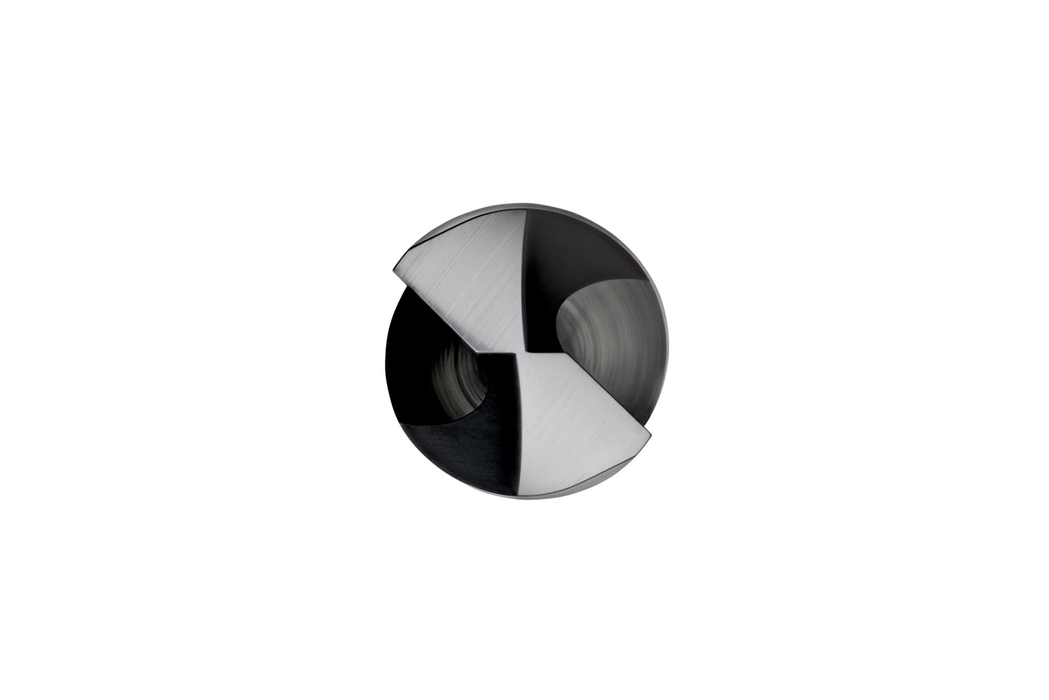

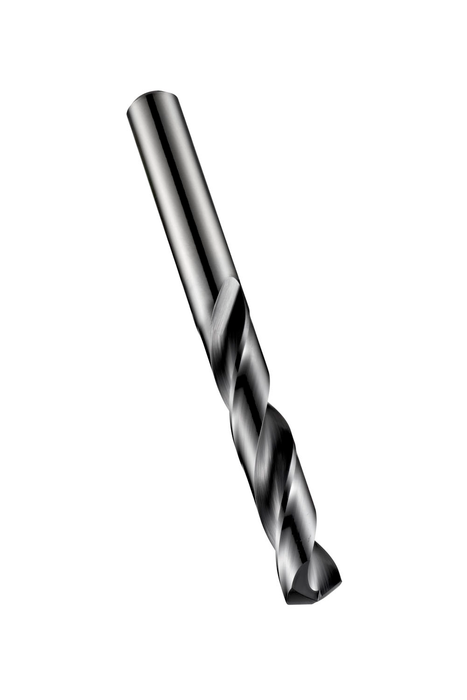

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.2421" (C) with an overall length of 91mm and flute length of 53mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$128.07 - $128.07
$128.07
$128.07 - $128.07
$128.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

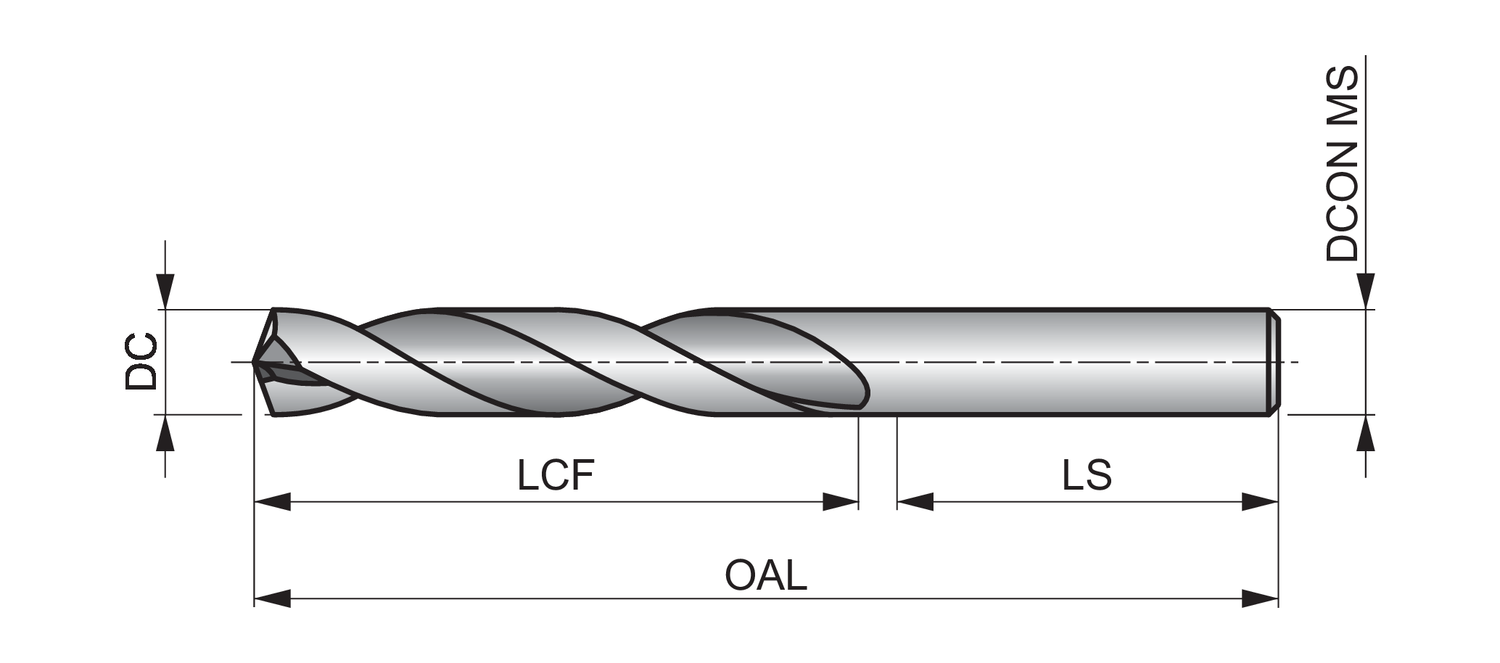

Material: HM

Cutting Diameter - in (DC): 0.2421

Cutting Diameter - mm (DC): 6.15

Drill Point Angle - deg: 140

Flute Length: 2.0866

Through Coolant: 0

Lenxth x Diameter Ratio: 5

Overall Length (OAL): 3.5827

Connetion Diameter: 0.315

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Letter: C

Grade: TiAlN

EDP: 7361225

EAN: 7320760756713

MFG Part Number: 7361225
