ADKT 1505PDER-M:M8330

ADKT 1505PDER-M:M8330

SKU DOR7447792
by Dormer Pramet
Primary Use: Possible Use:

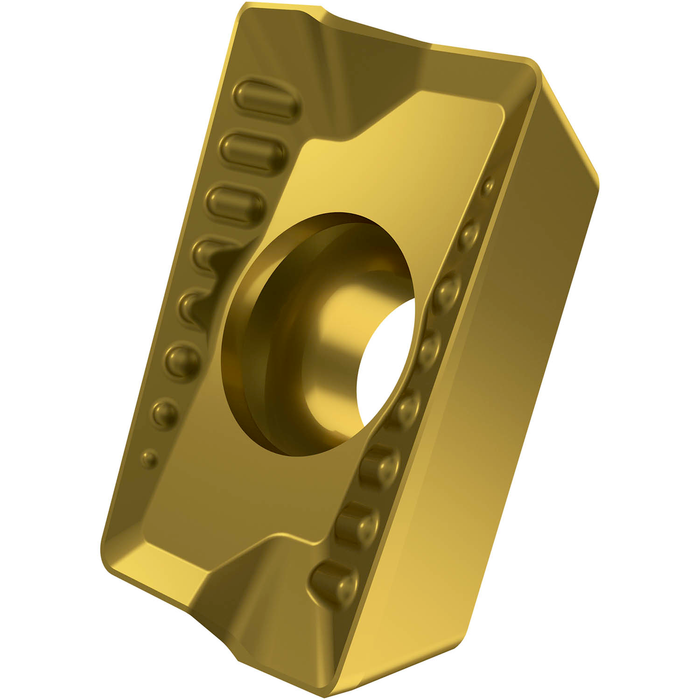

Single-sided milling insert ADKT 1505 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.01 - $17.01
$17.01
$17.01 - $17.01
$17.01
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

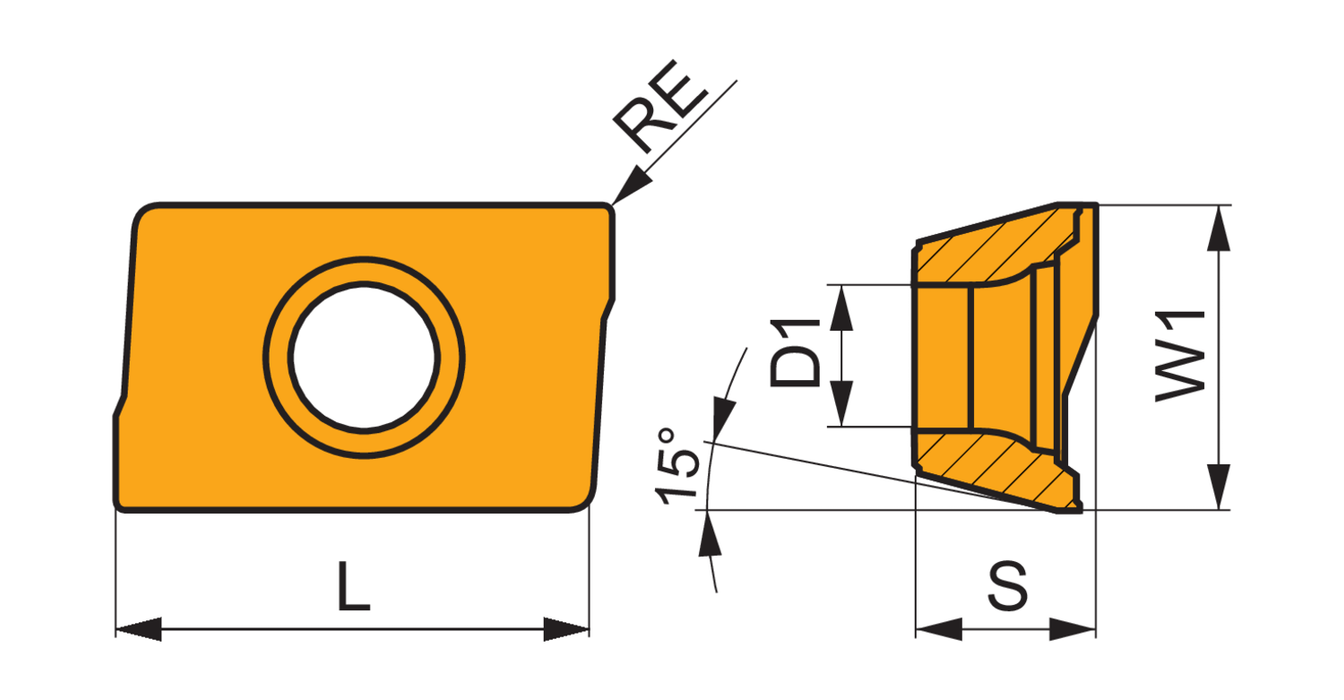

Max. Depth of Cut: 0.512

Insert Design: ADKT

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.22

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

High Temp Alloys: Possible use

Chip Breaker: M

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7447792

EAN: 3603603385061

MFG Part Number: 7447792
