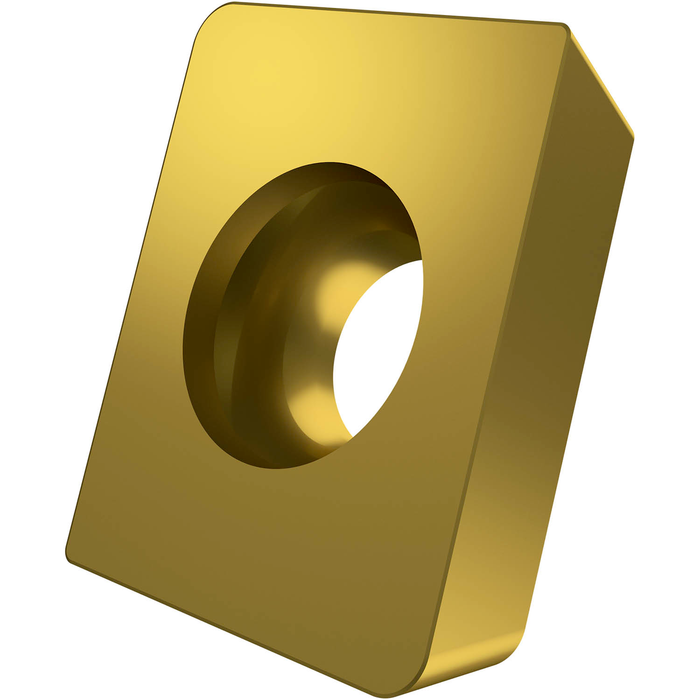

APEW 150412SR:M8330

APEW 150412SR:M8330

SKU DOR7447829
by Dormer Pramet
Primary Use: Possible Use:

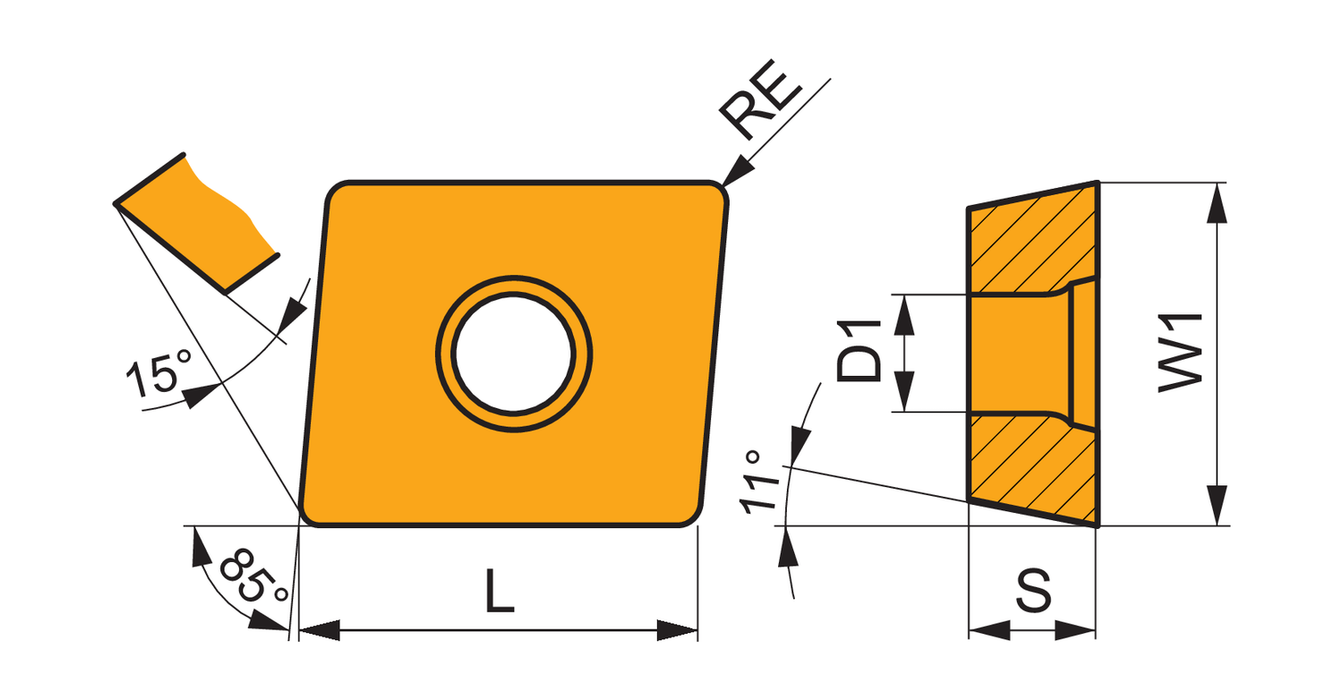

Single-sided milling insert APEW 1504 with a plane rake surface, 85° parallelogram for a maximum depth of cut of .4724", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with shoulder mills with extended flute J(T)-SSAP

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$33.04 - $33.04
$33.04
$33.04 - $33.04
$33.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.472

Insert Design: APEW

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.187

Chip Breaker: No chipbreaker

Grade: M8330

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 7447829

EAN: 3603603385436

MFG Part Number: 7447829
