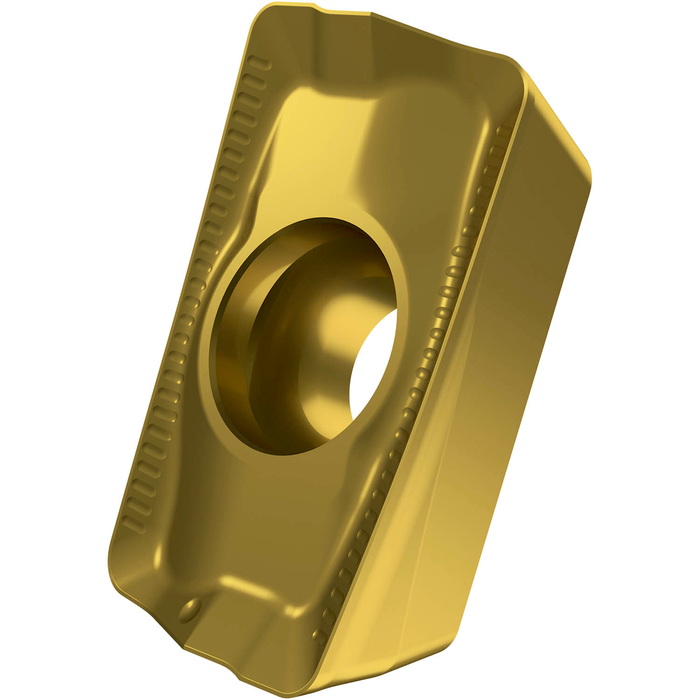

APKT 1604PDR-GM:M8330

APKT 1604PDR-GM:M8330

SKU DOR7447831
by Dormer Pramet
Primary Use: Possible Use:

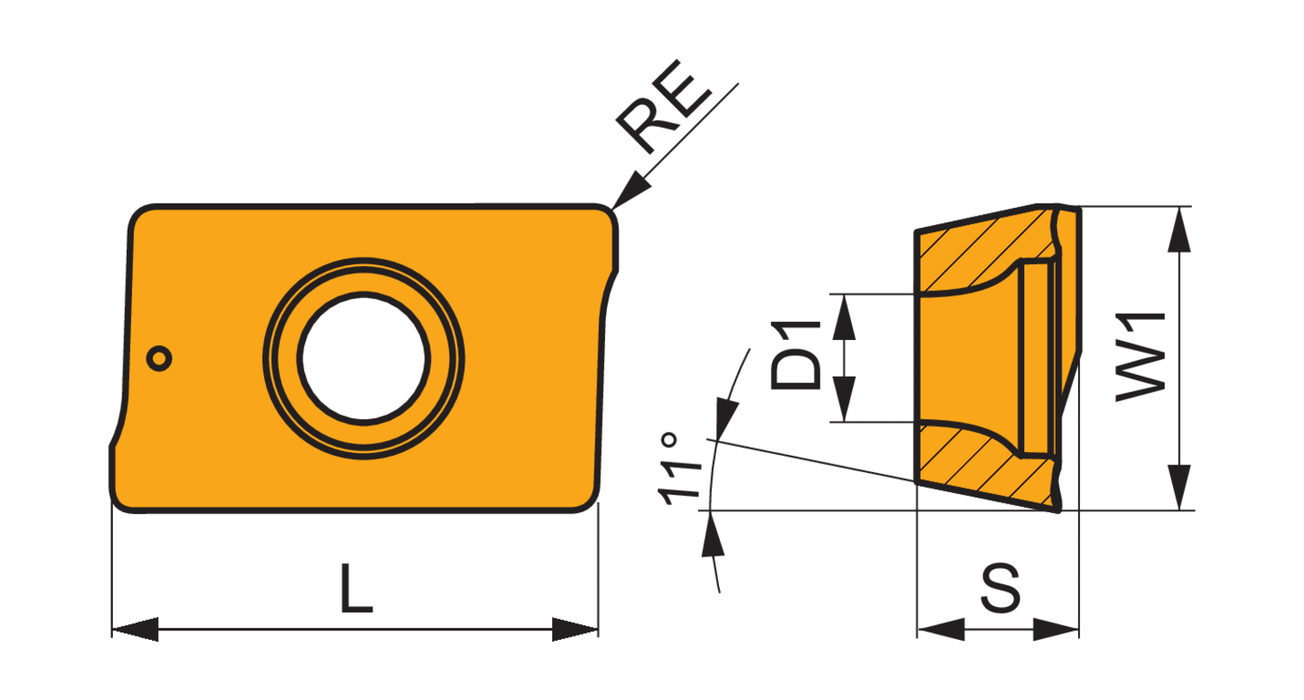

Single-sided milling insert APKT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and GM geometry, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills SAP16D

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.36 - $17.36
$17.36
$17.36 - $17.36
$17.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.512

Insert Design: APKT

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.223

Chip Breaker: GM

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7447831

EAN: 3603603385450

MFG Part Number: 7447831
